Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
befitter
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
As per model
-
Weight:
-
180 kg
-
Marketing Type:
-
New Product 2023
-
Core Components:
-
befitter
-
PLC Brand:
-
befitter
-
Speed:
-
30-160 pcs / min
-
knife material:
-
front steel
-
cutting length:
-
0.1-99999.9m
-
cutting speed:
-
30-160pcs/mintues
-
Feeding motor:
-
stepper motor
-
cutter motor:
-
AC motor
-
Cutting materials:
-
film, cloth ,paper ,steel ,farbic
-
Function:
-
roll to sheet
Quick Details
-
Type:
-
Paper Cutting Machine
-
Production Capacity:
-
30-160pcs/min
-
Max. workable width:
-
600mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
befitter
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
As per model
-
Weight:
-
180 kg
-
Marketing Type:
-
New Product 2023
-
Core Components:
-
befitter
-
PLC Brand:
-
befitter
-
Speed:
-
30-160 pcs / min
-
knife material:
-
front steel
-
cutting length:
-
0.1-99999.9m
-
cutting speed:
-
30-160pcs/mintues
-
Feeding motor:
-
stepper motor
-
cutter motor:
-
AC motor
-
Cutting materials:
-
film, cloth ,paper ,steel ,farbic
-
Function:
-
roll to sheet
Product Description

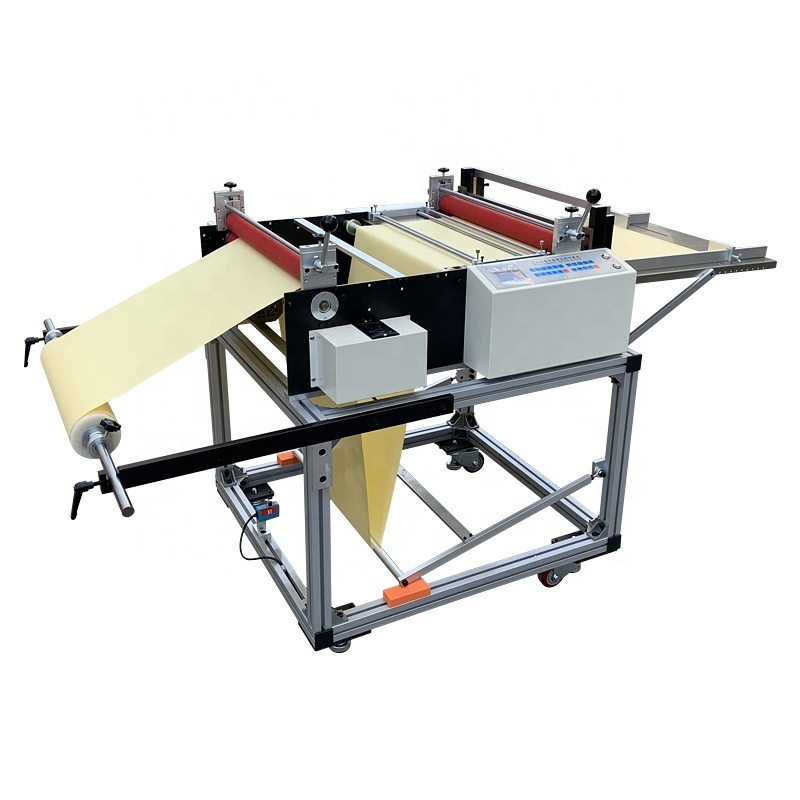

1,All kinds of film, cloth, paper and other roll materials can be cut.
2,The adjustable speed motor cooperates with the photoelectric sensor to realize automatic unwinding and synchronous cutting with
faster speed, higher efficiency and more accurate precision.
3,The machine is compact in design and smaller in size. It can be moved and installed at any time with all-in-one foot cup
casters.
4,The spring-type feeding mechanism is used with an angle-adjustable material receiving table, which can receive materials neatly
regardless of thickness and save labor.
5,Humanized design, simple operation, stable performance and easy maintenance.
technical parameter
Product model: HD-200Z, HD-300Z, HD-400Z, HD-500Z, HD-600Z, HD-700Z, HD800Z
Cutting knife material: front steel
Product power supply: 220V 50/60Hz
Cutting length: 0.1-99999.9mm
Cutting speed: 30-160pcs/min
Feeding width: 1-200mm/300mm/400mm/500mm/600mm/700mm/800mm
Cutting accuracy: 0.1mm
Product size: 910*490*990mm, 910*590*990mm, 910*690*990mm, 910*790*990mm, 910*890*990mm, 910*990*990mm, 910*1090*990mm
Machine weight: 118kg, 128kg, 137kg, 144kg, 165kg, 176kg, 183kg
Feeding motor: stepper motor
Cutter motor: AC motor
Product model: HD-200Z, HD-300Z, HD-400Z, HD-500Z, HD-600Z, HD-700Z, HD800Z
Cutting knife material: front steel
Product power supply: 220V 50/60Hz
Cutting length: 0.1-99999.9mm
Cutting speed: 30-160pcs/min
Feeding width: 1-200mm/300mm/400mm/500mm/600mm/700mm/800mm
Cutting accuracy: 0.1mm
Product size: 910*490*990mm, 910*590*990mm, 910*690*990mm, 910*790*990mm, 910*890*990mm, 910*990*990mm, 910*1090*990mm
Machine weight: 118kg, 128kg, 137kg, 144kg, 165kg, 176kg, 183kg
Feeding motor: stepper motor
Cutter motor: AC motor
Specification
Product principle:
1. Automatic group accumulation and total cumulative count
2. Batch pause and delay time can be set 3. There are various manual operations for debugging
4. Can automatically cut all kinds of strips, sheets, plastic tubes and other materials
5. High-speed feeding, controlled by microcomputer program with an accuracy of 0.1mm
6. High-speed stepping motor accurately controls cutting length and speed
7. Cutting time protection; total setting; sub-setting; adjustable timeout
8. The cutter speed is adjustable, all Chinese LCD display, export or foreign companies can be customized English version
9. The length and speed are arbitrarily adjustable, fully automatic cutting and automatic feeding, completely liberating labor
10.LCD large screen intuitive Chinese display, simple and convenient operation; using special mechanical structure and special
tools,With special software control, it solves the problem of uneven cutting in other manufacturers, reaching the level of the
slit and the length
11. Fast feeding speed, high cutting force, high cutting efficiency, stable performance, cutting all kinds of hard and thick
materials, high cutting precision and straight cut
12. Add unwinding motor and induction photoelectric, which can realize synchronous unwinding, solve the problem of slow feeding
speed and poor precision of heavy coils.
1. Automatic group accumulation and total cumulative count
2. Batch pause and delay time can be set 3. There are various manual operations for debugging
4. Can automatically cut all kinds of strips, sheets, plastic tubes and other materials
5. High-speed feeding, controlled by microcomputer program with an accuracy of 0.1mm
6. High-speed stepping motor accurately controls cutting length and speed
7. Cutting time protection; total setting; sub-setting; adjustable timeout
8. The cutter speed is adjustable, all Chinese LCD display, export or foreign companies can be customized English version
9. The length and speed are arbitrarily adjustable, fully automatic cutting and automatic feeding, completely liberating labor
10.LCD large screen intuitive Chinese display, simple and convenient operation; using special mechanical structure and special
tools,With special software control, it solves the problem of uneven cutting in other manufacturers, reaching the level of the
slit and the length
11. Fast feeding speed, high cutting force, high cutting efficiency, stable performance, cutting all kinds of hard and thick
materials, high cutting precision and straight cut
12. Add unwinding motor and induction photoelectric, which can realize synchronous unwinding, solve the problem of slow feeding
speed and poor precision of heavy coils.
|
Model
|
HD-200Z
|
HD-300Z
|
HD-400Z
|
HD-500Z
|
HD-600Z
|
HD-700Z
|
HD-800Z
|
||||||
|
Blade material
|
High-speed steel
|
|
|
|
|
|
|
||||||
|
Power supply
|
220V 50/60HZ
|
|
|
|
|
|
|
||||||
|
Cutting precision
|
0.1mm
|
|
|
|
|
|
|
||||||
|
Cutting length
|
0.1-9999.9mm
|
|
|
|
|
|
|
||||||
|
Cutting speed
|
30-160pcs/min
|
|
|
|
|
|
|
||||||
|
Max feed width
|
1-200mm
|
1-300mm
|
1-400mm
|
1-500mm
|
1-600mm
|
1-700mm
|
1-800mm
|
||||||
|
Machine weight
|
118kg
|
128kg
|
137kg
|
144kg
|
165kg
|
176kg
|
183kg
|
||||||
|
Machine size
|
910*490*990mm
|
910*590*990mm
|
910*690*990mm
|
910*790*990mm
|
910*890*990mm
|
910*990*990mm
|
910*1090*990mm
|
||||||
|
Motor
|
Feed motor: Stepper motor Cut motor: AC motor
|
|
|
|
|
|
|
||||||
Suitable for cutting various PET/PVC/PE/OPP/BOPP/ITO/OCA films, protective films, plastic films, electrostatic films, heat
shrinkable films, hot melt adhesive films, thermoplastic films, heat transfer films, reflective films, Release film, non-woven
fabric, meltblown fabric, flocking fabric, non-woven fabric, knitted fabric, kraft paper, dust-free cloth, spunlace cloth, fiber
cloth, conductive cloth, grinding cloth, laundry sheet, self-adhesive, roll paper , Insulation paper, release paper, kraft paper,
fast paper, wrapping paper, thermal transfer paper, filter paper, silicone oil paper, glitter paper, reflective paper, tin foil,
aluminum foil, copper foil, stainless steel foil, copper tape, nickel tape , Double-sided tape, plastic film, EVA foam, sponge,
zipper, Velcro, elastic band, webbing, cloth strip, pu leather, pearl cotton and other roll materials.
shrinkable films, hot melt adhesive films, thermoplastic films, heat transfer films, reflective films, Release film, non-woven
fabric, meltblown fabric, flocking fabric, non-woven fabric, knitted fabric, kraft paper, dust-free cloth, spunlace cloth, fiber
cloth, conductive cloth, grinding cloth, laundry sheet, self-adhesive, roll paper , Insulation paper, release paper, kraft paper,
fast paper, wrapping paper, thermal transfer paper, filter paper, silicone oil paper, glitter paper, reflective paper, tin foil,
aluminum foil, copper foil, stainless steel foil, copper tape, nickel tape , Double-sided tape, plastic film, EVA foam, sponge,
zipper, Velcro, elastic band, webbing, cloth strip, pu leather, pearl cotton and other roll materials.
