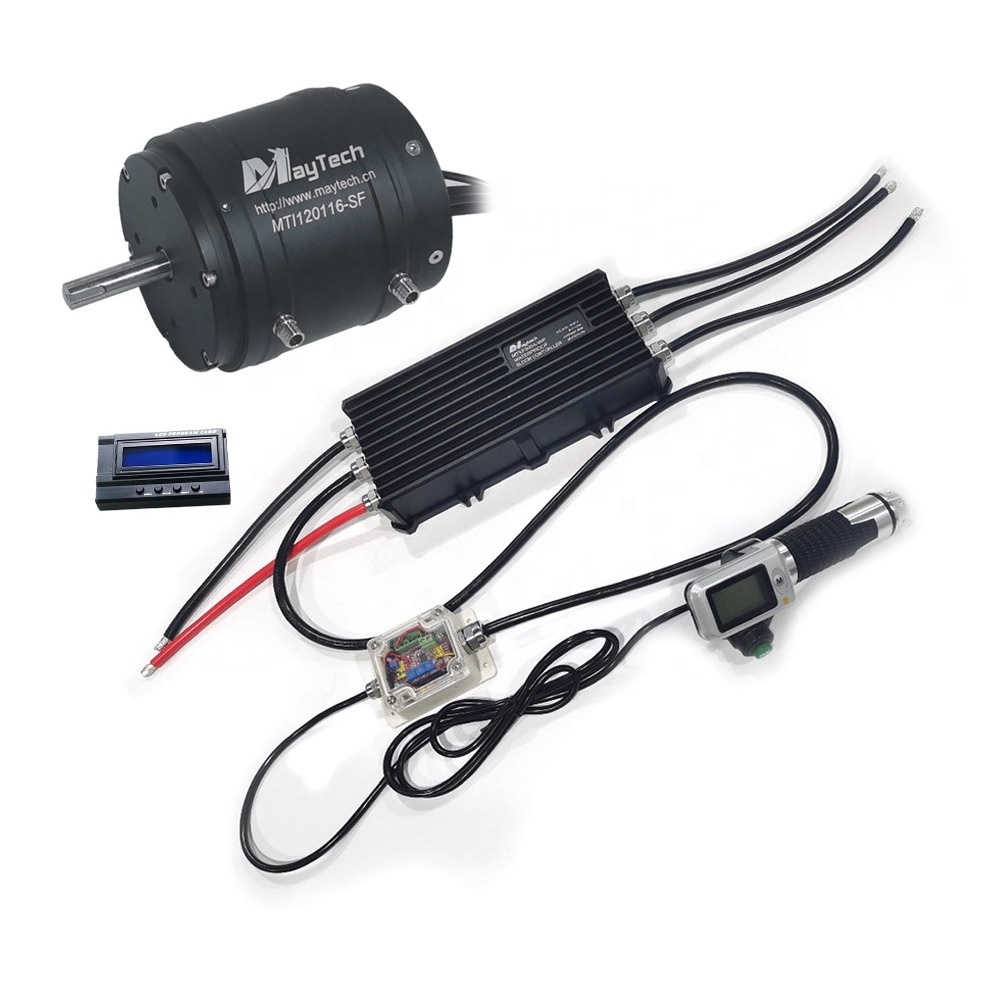

Model No
|
MTI120116-SF
|
KV
|
100 / 200, if you need other KV, contact us please
|
||
|
Internal Resistance
|
0.0322Ω
|
Max Current
|
380A
|
||
|
Input Volt
|
In this kit, 100KV max to 60V, 200KV max to 50V
|
Max Output Watt
|
18.8KW
|
||
|
Max Pull
|
20.6N.m
|
Max Torque @ 60%
|
20.6N.m
|
||
|
Shaft
|
Keyway Shaft
|
Motor Size
|
120x116mm
|
||
|
Construction
|
12N10P
|
Type
|
Sensorless
|
||
|
Waterproof
|
Not waterproof
|
Water-cooling
|
With
|
||
|
Application
|
Electric surfboard, Electric Hydrofoil, Foilsurf, Surffoil, RC Boat, Esurf, Jetski, Jetboard, Electric kayak, Jetsurf, catamaran, sail boat, etc.,
|
|
|
||
|
Model No.
|
MTSF500A-WP
|
Cont Current
|
500A
|
|
Lipo Voltage
|
6-14S Lipo (24V-58.8V)
|
Burst Current
|
1000A
|
|
BEC
|
Built-in 5V and 12V to support water pump and lamp
|
Signal
|
PWM (PPM) 1-2ms
|
|
Throttle
|
MTW1702 twisted throttle
|
Signal Convertor
|
Convert from ADC to PWM
|
|
Connector
|
10mm gold-plated female connector on motor cable side
|
Connector Waterproof
|
Yes, with waterproof case protector for connector
|
|
Fully Waterproof
|
Yes
|
Certificate
|
CE, ROHS
|
|
Programmable
|
Yes
|
Application
|
Electric surfboard, Electric Hydrofoil, Foilsurf, Surffoil, RC Boat, Esurf, Jetski, Jetboard, Electric kayak, Jetsurf, catamaran, electric boat, outboard,
sail boat, etc., |
|
Model No.
|
MTSKR1905WF (V2)
|
Waterproof
|
IP67 Waterproof, with 2 layers Nanometer coating
|
|
Mode
|
Esk8/Esurf
|
Display Parameters
|
Remote & Battery Power; Throttle Percentage; Signal Strength; RPM.
Current; Temp; Volt; Speed; ; Distance(When work with VESC)
|
|
Signal
|
PWM (PPM)
|
Double Source Power Supply
|
Accept 5V power by ESC built in BEC or extra 5V power
|
|
Firmware Updatable
|
Yes
|
Control Pump
|
Yes
|
|
Set Safety Button
|
Yes
|
Control Light
|
Yes
|
|
Brake Button
|
Yes
|
Cruise Control
|
Yes
|
|
Wireless Charging
|
Yes
|
Accessories
|
Charging Pad; Receiver; 3pcs Dubang Cables
|
