Quick Details
-
Brand Name:
-
SINOTRUCK, Dongfeng, FAW, Foton, etc
-
After-sales Service Provided:
-
Video technical support, Return and Replacement, Online support, Free spare parts, Field maintenance and repair service
-
Dimensions (L x W x H) (mm):
-
5800x2300x2500
-
Place of Origin:
-
Hubei, China
-
Model NO.:
-
CSC20230724001
-
Tire Design:
-
Tubeless
-
Clutch:
-
Reinforced Diaphragm Clutch, Diameter 430mm
-
Engine Model:
-
4KH1CN6LB
-
Engine Brand:
-
Isuzy
-
Steering:
-
Left Hand Driven
-
Color:
-
Customized Request
-
Tare Weight:
-
3860 kgs
-
Horse Power:
-
120 hp
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
EURO 5
-
Gross Vehicle Weight:
-
7860
-
Brand Name:
-
SINOTRUCK, Dongfeng, FAW, Foton, etc
-
After-sales Service Provided:
-
Video technical support, Return and Replacement, Online support, Free spare parts, Field maintenance and repair service
-
Dimensions (L x W x H) (mm):
-
5800x2300x2500
-
Place of Origin:
-
Hubei, China
-
Model NO.:
-
CSC20230724001
-
Tire Design:
-
Tubeless
-
Clutch:
-
Reinforced Diaphragm Clutch, Diameter 430mm
-
Engine Model:
-
4KH1CN6LB
-
Engine Brand:
-
Isuzy
-
Steering:
-
Left Hand Driven
-
Color:
-
Customized Request
-
Tare Weight:
-
3860 kgs
-
Horse Power:
-
120 hp
Product Description
Specification
|
Cabin
|

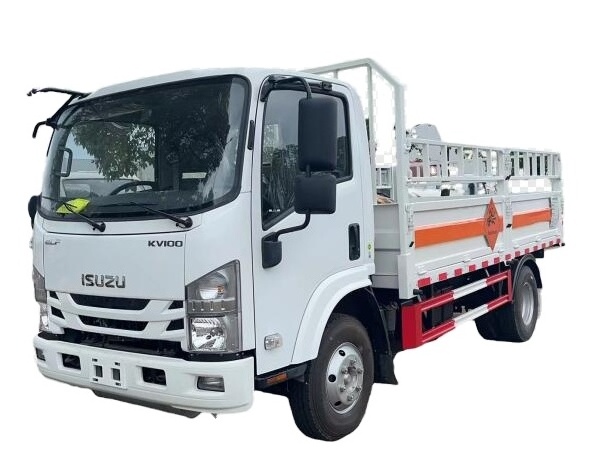

KV100 Standrad cab , left hand drive
70° hydraulically tillable to the front as attached photo for ref. |
|
|
|
Vehicle Main Dimensions
|
(L x W x H)mm
|
5800X2300X2500
|
|
|
|
Wheel base (mm)
|
3365
|
|
|
|
Wheel track (front/rear) (mm)
|
2022/1830
|
|
|
|
Approach/Departure angle(°)
|
19/27
|
|
|
Weight in KGS
|
Tare Weight
|
3860kg
|
|
|
|
Loading Capacity
|
4500kg
|
|
|
|
Front axles loading capacity
|
1x3500
|
|
|
|
Rear axles loading capacity
|
1x4800
|
|
|
Max. driving speed(km/h)
|
|
95
|
|
|
Engine
|
Brand
|
Isuzu
|
|
|
|
Model
|
4KH1CN6LB
|
|
|
|
Type
|
4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
|
|
|
|
Horse Power(HP)
|
120 HP
|
|
|
|
Emission standard
|
Euro 5
|
|
|
Gearbox
|
MSB, 5 forwards & 1 reverse
|
|
|
|
Clutch
|
Reinforced diaphragm clutch, diameter 430mmClutch
|
|
|
|
Steering Gear
|
ZF 8098,power steering, hydraulic steering with power assistance
|
|
|
|
Fuel tank (L)
|
120
|
|
|
|
Tire
|
7.50R16 , 7pieces including 1 spare
|
|
|
|
Brakes
|
Service brake: dual circuit compressed air brake
Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
|
|
|
Carrige
|
Material
|
Carbon steel
|
|
|
Corrugated steel plate thickness
|
1 mm
|
|
|
Bottom plate thickness
|
3 mm
|
|
|
Size
|
4000×2100×500 mm
|
|
|
Frame height
|
100 mm
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Customer Visit Photos
FAQ
1. who are we?
We are based in Hubei, China, start from 2016,sell to Africa(70.00%),Southeast Asia(10.00%),Domestic Market(10.00%),South America(8.00%),Eastern Asia(2.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Special Trucks,Semi Trailers,LPG Tanker,LPG Tank Truck,LPG Tank Trailer
4. why should you buy from us not from other suppliers?
Hubei Chusheng Vehicle Imp. & Exp. Co., Ltd. is the branch and export department for Hubei Chusheng Vehicle Co., Ltd which is state owned and a manufacturer for special trucks, trailers and LPG tanker products.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,French
We are based in Hubei, China, start from 2016,sell to Africa(70.00%),Southeast Asia(10.00%),Domestic Market(10.00%),South America(8.00%),Eastern Asia(2.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Special Trucks,Semi Trailers,LPG Tanker,LPG Tank Truck,LPG Tank Trailer
4. why should you buy from us not from other suppliers?
Hubei Chusheng Vehicle Imp. & Exp. Co., Ltd. is the branch and export department for Hubei Chusheng Vehicle Co., Ltd which is state owned and a manufacturer for special trucks, trailers and LPG tanker products.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,French
