Quick Details
-
Brand Name:
-
EPever
-
Model Number:
-
Tracer 5415AN
-
Work Time (h):
-
Accept Setting
-
Max PV Power:
-
2500W
-
Max PV Voltage:
-
150V
-
Certificate:
-
CE Rohs
-
Warranty:
-
2 years
-
Charge mode:
-
MPPT Maximum Power Point Tracking
-
System voltage:
-
12/24/36/48V or Auto
-
Certification:
-
FCC/ROHS/Safety/EMC
-
Display:
-
LCD Screen
-
Tracking efficiency:
-
≥99.5%
-
Feature 1:
-
Real-time energy statistics function
-
Feature 2:
-
Battery temperature compensation function
-
Feature 3:
-
Support software upgrade
-
Multiple Load Control Modes:
-
manual control, light ON/OFF, light On+Timer, and test mode.
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Collector Controller, Solar Working Station, Lighting Controller, Voltage Controller, Solar System Controller, RV/Vessels
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
EPever
-
Model Number:
-
Tracer 5415AN
-
Work Time (h):
-
Accept Setting
-
Max PV Power:
-
2500W
-
Max PV Voltage:
-
150V
-
Certificate:
-
CE Rohs
-
Warranty:
-
2 years
-
Charge mode:
-
MPPT Maximum Power Point Tracking
-
System voltage:
-
12/24/36/48V or Auto
-
Certification:
-
FCC/ROHS/Safety/EMC
-
Display:
-
LCD Screen
-
Tracking efficiency:
-
≥99.5%
-
Feature 1:
-
Real-time energy statistics function
-
Feature 2:
-
Battery temperature compensation function
-
Feature 3:
-
Support software upgrade
-
Multiple Load Control Modes:
-
manual control, light ON/OFF, light On+Timer, and test mode.
Product Description

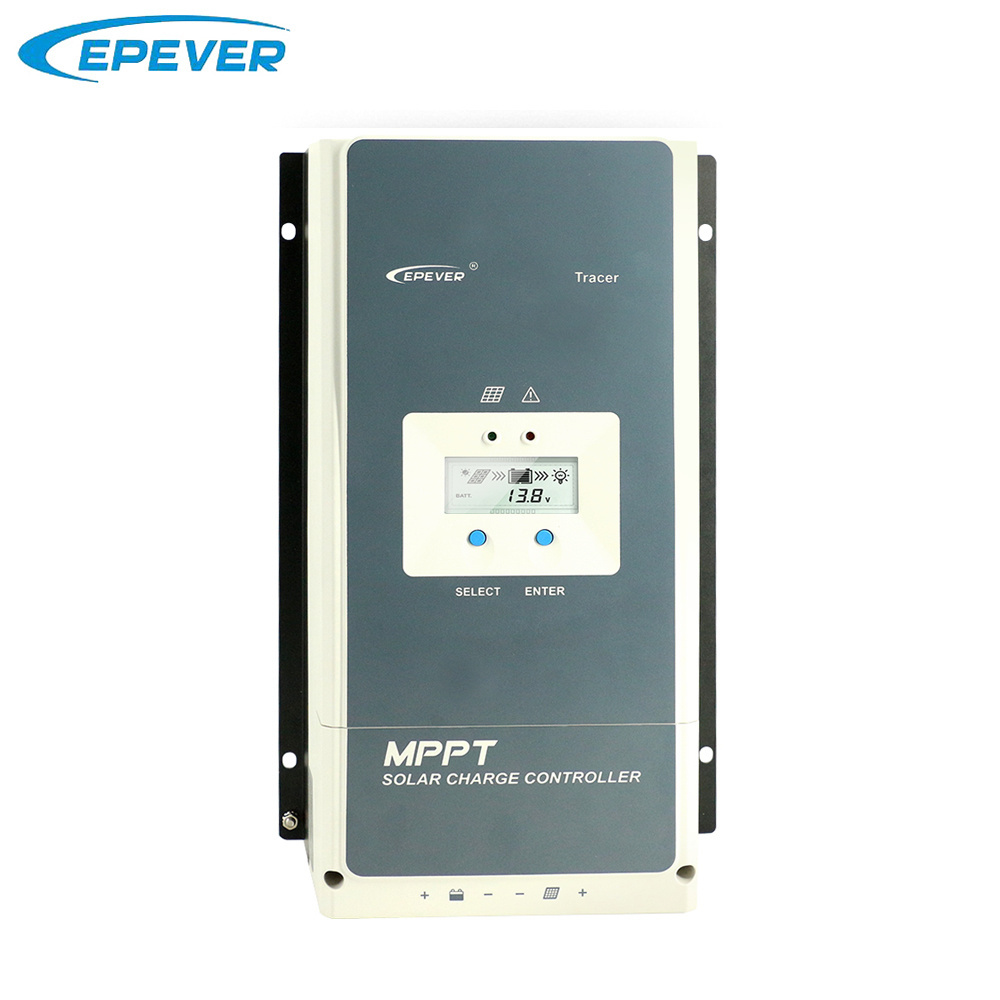

The Tracer AN series. Based on common negative design and advanced MPPT control algorithm, with LCD displaying running status, this product is artistic, economical and practical. Improving the MPPT control algorithm further, Tracer AN series can minimize the maximum power point loss rate and loss time, quickly track the maximum power point of the PV array and obtain the maximum energy from solar modules under any conditions; and can increase the ratio of energy utilization in the solar system by 10%-30% compared with a PWM charging method. The limitation function of the charging power and current and reducing charging power function automatic improve the stability which works even connecting oversize PV modules and in high temperature, and increase the professional protection chip for the communication port, further improving the reliability and meeting the different application
requirements.
requirements.
Features：
CE certification(LVD EN/IEC62109, EMC EN61000-6-1/3)High quality & low failure rate components of ST and Infineon to ensure the product’s life
Advanced MPPT technology & ultra-fast tracking speed is up to 99.5% guaranteed
Maximum DC/DC transfer efficiency is as high as 98.7%
Advanced MPPT control algorithm will minimize the MPP loss rate and loss time
The accuracy of the recognition and tracking at the highest point of multiple-peaks MPP
The wider range of MPP operating voltage
Auto control system to limit the charging power & current go over the rated value
Support 4 charging options: Sealed, Gel, Flooded, and User
Battery temperature compensation function
Real-time energy recording and statistical function
Automatic over-temperature power reduction function
Hundred percent full load operation in working environment temperature range within charging & discharging
Support up to 8 units in parallel to expand the system
Load relay control external load switch signal to realize diversified load work modes
The first and the second disconnection of load control, contain two relay’s contact
Auto-control of utility and generator relay design
Utility or generator auto-control relays make it easy to compose the hybrid power system
The remote temperature and the voltage sensor design will collect accurate data on battery temperature and voltage
Isolated RS-485 with 5VDC/200mA to protect output for no power devices with MODBUS protocol
To monitor or set the parameters by using the phone Apps or PC software
Advanced MPPT technology & ultra-fast tracking speed is up to 99.5% guaranteed
Maximum DC/DC transfer efficiency is as high as 98.7%
Advanced MPPT control algorithm will minimize the MPP loss rate and loss time
The accuracy of the recognition and tracking at the highest point of multiple-peaks MPP
The wider range of MPP operating voltage
Auto control system to limit the charging power & current go over the rated value
Support 4 charging options: Sealed, Gel, Flooded, and User
Battery temperature compensation function
Real-time energy recording and statistical function
Automatic over-temperature power reduction function
Hundred percent full load operation in working environment temperature range within charging & discharging
Support up to 8 units in parallel to expand the system
Load relay control external load switch signal to realize diversified load work modes
The first and the second disconnection of load control, contain two relay’s contact
Auto-control of utility and generator relay design
Utility or generator auto-control relays make it easy to compose the hybrid power system
The remote temperature and the voltage sensor design will collect accurate data on battery temperature and voltage
Isolated RS-485 with 5VDC/200mA to protect output for no power devices with MODBUS protocol
To monitor or set the parameters by using the phone Apps or PC software
Specification
|
Model
|
Tracer5415AN
|
Tracer 6415AN
|
Tracer 8415AN
|
Tracer 10415AN
|
||||
|
System nominal voltage
|
12/24/36/48VDC① Auto
|
|
|
|
||||
|
Battery Input Voltage Range
|
8V～68V
|
|
|
|
||||
|
Battery Type
|
Lead-acid Battery :Sealed(Default)/Gel/Flooded/User
Lithium Battery :LiFePO4/ Li(NiCoMn)O2/ User
|
|
|
|
||||
|
Battery fuse
|
80A/58V
|
|
125A/58V
|
150A/58V
|
||||
|
Rated charge current
|
50A
|
60A
|
80A
|
100A
|
||||
|
Rated charge Power
|
625W/12V 1250W/24V 1875W/36V 2500W/48V
|
750W/12V 1500W/24V 2250W/36V 3000W/48V
|
1000W/12V 2000W/24V 3000W/36V 4000W/48V
|
1250W/12V 2500W/24V 3750W/36V 5000W/48V
|
||||
|
Max. PV open circuit voltage
|
150V① 138V②
|
|
|
|
||||
|
MPP voltage range
|
(Battery Voltage +2V) ～108V②
|
|
(Battery Voltage +2V) ～108V②
|
|
||||
|
Tracking efficiency
|
≥99.5%
|
|
|
|
||||
|
Max. conversion efficiency
|
98.3%
|
98.6%
|
98.5%
|
98.6%
|
||||
|
Full load efficiency
|
97.8%
|
98.0%
|
98.0%
|
98.0%
|
||||
|
Temperature compensate coefficient
|
-3mV/℃/2V (Default)
|
|
|
|
||||
|
Self-consumption
|
98mA/12V;60mA/24V;50mA/36V;46mA/48V
|
|
|
|
||||
|
Grounding
|
Common negative grounding
|
|
|
|
||||
|
Relay
|
Rated Value:5A/30VDC; Max. Value:0.5A/60VDC
|
|
|
|
||||
|
RS485 interface
|
RS485(5VDC/200mA, Two RJ45 ports in parallel) ③
|
|
|
|
||||
|
LCD backlight time
|
Default:60S,Range:0～999S(0S:the backlight is ON all the time)
|
|
|
|
||||
|
①At minimum operating environment temperature;
②At 25℃ environment temperature;
③When connect the controller to external devices, only one of the ports can be used; when use multiple controllers in parallel, the port are for cascaded use |
|
|
|
|
||||
|
Ambient temperature range
|
-25℃～+60℃(Derate above 45℃)
|
|
|
|
||||
|
LCD temperature range
|
-20℃～+70℃
|
|
|
|
||||
|
Storage temperature range
|
-30℃～+85℃
|
|
|
|
||||
|
Relative humidity range
|
5% to 95% (N.C.)
|
|
|
|
||||
|
Enclosure
|
IP20
|
|
|
|
||||
|
Pollution degree
|
PD2
|
|
|
|
||||
|
Dimension(mm)
|
261×216×119
|
340×236×119
|
394×240×134
|
394×242×143
|
||||
|
Mounting dimension(mm)
|
180×204
|
260×224
|
300×228
|
300×230
|
||||
|
Mounting hole size
|
Φ7
|
|
|
|
||||
|
Terminal
|
6AWG(16mm2 )
|
2AWG(35mm2 )
|
2AWG(35mm2 )
|
2AWG(35mm2 )
|
||||
|
Recommended cable
|
6AWG(16mm2 )
|
6AWG(16mm2 )
|
4AWG(25mm2 )
|
2AWG(35mm2 )
|
||||
|
Weight
|
3.5kg
|
4.5kg
|
6.1kg
|
7.4kg
|
||||
A controller:
Multiple controllers:
How to program for Lithium Battery？
1. Set the battery type via the LCD (LiFePO4(4S/ 8S) and Li(NiCoMn)O2 (3S/6S/7S))
2. Via PC (Accessories needed：RS485),
3. Via phone APP (Accessories needed：Ebox-Wifi or Ebox-Blue)
1. Set the battery type via the LCD (LiFePO4(4S/ 8S) and Li(NiCoMn)O2 (3S/6S/7S))
2. Via PC (Accessories needed：RS485),
3. Via phone APP (Accessories needed：Ebox-Wifi or Ebox-Blue)
Battery type selection:
lead-acid (Gel, Sealed, Flooded) and Lithium, voltage parameters can be set on the controller
(For the BCV, FCV, LVD, and LVR, users can modify them on the local controller when the battery type is "USE.")
(For the BCV, FCV, LVD, and LVR, users can modify them on the local controller when the battery type is "USE.")
Warm tips：
Step: Connect the system in the order of 1.battery-->2. load-->3. PV array, and disconnect the system in the reverse order 3. 2. 1.
* Battery must be connected first !!!
* Never connect the solar panel array to the controller Without/Before a Battery.
* DO NOT connect any inverter/ wind/Alternator or Charger into the charge controller!
* If the remote temperature sensor is not connected to the controller, the default setting for battery charging or discharging temperature is 25 °C without temperature compensation.
* The wire size is only for reference. If there is a long distance between the PV array and the controller or between the controller and the battery, larger wires can be used to reduce the voltage drop and improve performance.
Step: Connect the system in the order of 1.battery-->2. load-->3. PV array, and disconnect the system in the reverse order 3. 2. 1.
* Battery must be connected first !!!
* Never connect the solar panel array to the controller Without/Before a Battery.
* DO NOT connect any inverter/ wind/Alternator or Charger into the charge controller!
* If the remote temperature sensor is not connected to the controller, the default setting for battery charging or discharging temperature is 25 °C without temperature compensation.
* The wire size is only for reference. If there is a long distance between the PV array and the controller or between the controller and the battery, larger wires can be used to reduce the voltage drop and improve performance.
