Quick Details
-
Model Number:
-
7090,7060,5090
-
Product name:
-
Evaporative Cooling Pad
-
Frame material:
-
Aluminum Alloy/Galvanized Steel/Stainless Steel/PVC
-
Size:
-
Customized
-
Color:
-
Brown / black / red /green / customized
-
raw material:
-
kraft paper / resin / glue
-
Feature:
-
Durable
Quick Details
-
Weight (KG):
-
10
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WUSEN
-
Model Number:
-
7090,7060,5090
-
Product name:
-
Evaporative Cooling Pad
-
Frame material:
-
Aluminum Alloy/Galvanized Steel/Stainless Steel/PVC
-
Size:
-
Customized
-
Color:
-
Brown / black / red /green / customized
-
raw material:
-
kraft paper / resin / glue
-
Feature:
-
Durable
TECHNICAL REFERENCE：
|
Model
|
Height(mm)
|
Width(mm)
|
Thickness(mm)
|
Flute
|
Angle
|
|
7090
|
1500/1800/2000/Customized
|
300/600/Customized
|
100/150/200/Customized
|
7mm
|
45°/45°
|
|
7060
|
1500/1800/2000/Customized
|
300/600/Customized
|
100/150/200/Customized
|
7mm
|
15°/45°
|
|
5090
|
Customized
|
Customized
|
Customized
|
5mm
|
45°/45°
|
PRODUCT OVERVIEW：

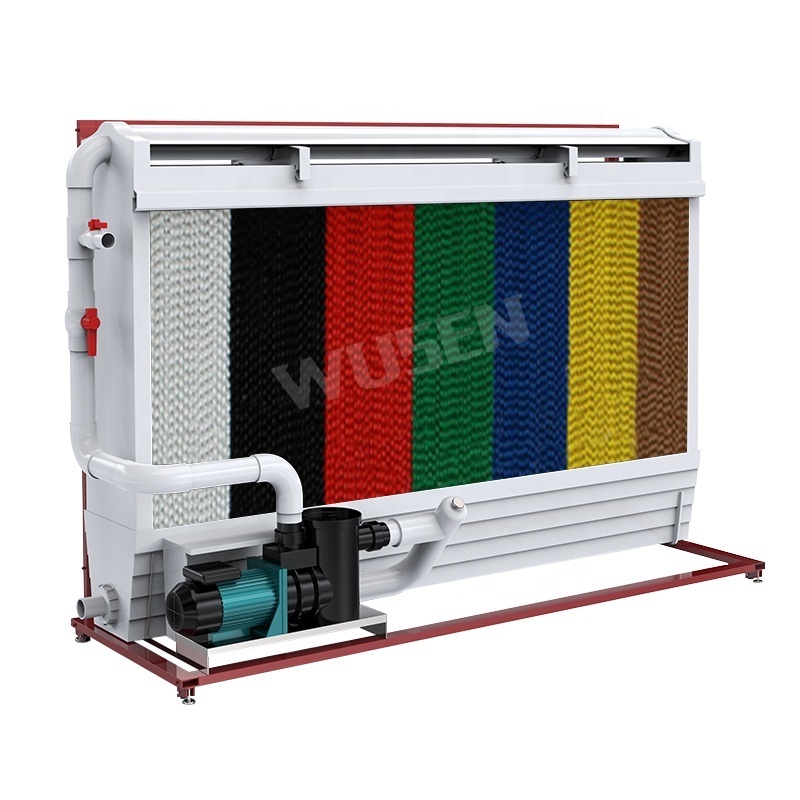

Evaporative cooling pad is a special paper honeycomb structure material. Its working principle is "water evaporation and heat absorption".The natural physical phenomenon is that water flows from top to bottom under the action of gravity, on the corrugated fiber surface of the cooling pad.When the flowing air passes through the cooling pad, the water in the water film will evaporate and absorb the heat in the air. Take away a large amount of latent heat and reduce the temperature of the air passing through the cooling pad, so as to achieve the purpose of cooling.
BORDER SELECTION：
Evaporative Cooling Pad Main Features：
1.
Cooling pad use new material and space crossing linking technology, high water absorbability ,high water-resistance, anti-mildew and long service life.
2.
The Product contains surface active agen
t for natural water absorbability ,fast pervasion speed, lasting effectiveness.
3.
Strict production as per standard, width of 600mm cooling pad involves
85 sheets.
4.
Raw material adopts imported kraft paper, we have 95g/sqm and 105g/sqm for option. Tension resistance at 70N, Absorbability height as 45mm/10min, moisture at 5-8%, humidity at 18N.
5.
Products don't contain Phenol or any other chemical substances which easily makes skin allergy. Non-toxic and harmless to human body, safety, energy saving, environment protection and economic applicable.
1.
According to customers' requirement ,we can do one side color coated cooling pad for easy cleaning and beautiful appearance.
2.
Color is for option: black coated/ green coated/ yellow coated/ red coated/blue coated/ orange coated and so on.
Performance Curve Of Cooling Pad：
Optional PVC deep water gutter：
Reduce the cost of cooling project, convenient installation, and brand-new raw materials.Anti-acid, alkali-resistant and corrosion-resistant, long service life
Source factory, professional manufacturing, from material selection, to sales and after-sales,One-stop service, can customize the water curtain according to the needs of customers.
Package:
In plastic film or paper carton, no damage. Nude package by full container.Packaging can also be customized according to customer needs.
Delivery:
by sea or by air, FCL or LCL. Quick shipment.
Shandong Wusen Environmental Control is engaged in the research and development, manufacturing, engineering design, construction and installation of the automatic environmental ventilation equipment and environmental protection equipment for animal husbandry and breeding, to provide greater value for customers' continuous technological innovation.
The company has many years' experience in the R&D and a perfect after-sales service system. The independent product R&D and design department of the company is able to carry out the research and development of the new product, new technologies and new processes on the new trend of the international industry. The company's sales and after-sales service network are all over the country and the products have been exported to many countries and regions.
Our
evaporative cooling pad
have obtained multiple certifications and testing reports to ensure that each one is a high-quality product
WUSEN
evaporative cooling pad
have been exported to more than in Asia, Europe,
America, Australia, etc.
Wusen participates in domestic and international exhibitions every
year to let more customers know about our latest products
CONTACT US
Due to the wide range of our products, we cannot list all product pictures and corresponding product parameters. If you have other needs, please communicate with me. We can provide supplementary information and technical support.
01. ARE YOU A FACTORY OR A TRADING COMPANY?
We are a professional and comprehensive supplier of animal husbandry equipment, integrating research and development, production, and sales.
02. CAN YOU MAKE OUR OWN BRAND?
Yes, we can provide OEM and ODM services. We can affix your own logo on the product.
03. WHAT PAYMENT METHOD DO YOU ACCEPT?
04. HOW ABOUT THE DELIVERY TIME?
Of course. We have many years of experience in this field. We have a strong team, unique design, exquisite production, exquisite materials, exquisite craftsmanship, and strict quality control. We attach great importance to our reputation.
We accept T/T, Paypal, LC and Western Union remittance. If you have special requirements, we will try our best to meet your needs.
Usually, sample orders take 3-5 days and bulk orders take 15-20 days, but if you urgently need it, you can complete it within 15 days after receiving payment.
05. DO YOU PROVIDE FREE SAMPLES?
Yes, we can provide free samples. You only need to pay the courier fee. If you are satisfied with our samples and order again, we will refund the final sample shipping fee.
06. MAY I VISIT YOUR FACRORY?
Of course, welcome anytime. We can also pick you up at the airport and station. We welcome domestic and foreign partners to contact and visit us.
07. CAN YOU GUARANTEE YOUR QUALITY?
08. IF I WANT TO PLACE AN ORDER, HOW DO YOU ENSURE MY RIGHTS?
Sign a professional supply and demand contract to ensure your rights as much as possible. In addition, with a 12 month free warranty, there is no need to worry about after-sales service, and we will always be here to support your business!
