Midea 48000 btu Floor Standing Central Commercial Air Conditioner System
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Midea
-
Weight (KG):
-
100 KG
-
Product Name:
-
Midea long piping capability home air conditioners
-
Function:
-
Cooling\Heating
-
Refrigerant:
-
R410a
-
Power supply:
-
380-415V/3Ph/50(60)Hz
-
Cooling capacity:
-
50KW
-
Power input:
-
12.5kw
-
EER:
-
4
-
Fan type:
-
DC
-
Compressor type:
-
DC inverter
-
COP:
-
4.70
Quick Details
-
Type:
-
AIR COOLER
-
Mounting:
-
Floor Standing
-
Airflow:
-
45000m³/h
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Midea
-
Weight (KG):
-
100 KG
-
Product Name:
-
Midea long piping capability home air conditioners
-
Function:
-
Cooling\Heating
-
Refrigerant:
-
R410a
-
Power supply:
-
380-415V/3Ph/50(60)Hz
-
Cooling capacity:
-
50KW
-
Power input:
-
12.5kw
-
EER:
-
4
-
Fan type:
-
DC
-
Compressor type:
-
DC inverter
-
COP:
-
4.70
Product Description
-

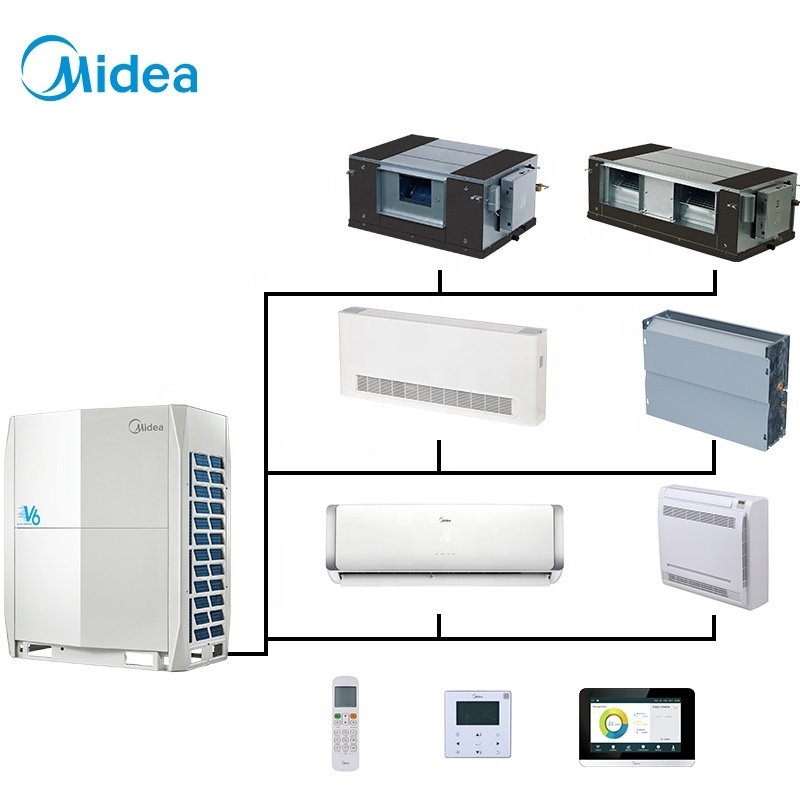

8-96HP V6 Series VRF Air Conditioner (50/60Hz)
Wide capacity range and operation range
EMS maximizes comfort and energy efficiency
EVI increases heating and cooling capacity under extreme conditions
Multi channels refrigerant cooling system
Triple configurations simplified installation, commissioning and servicing
Color: White
|
Product Name
|
|
Midea long piping capability home air conditioners
|
|
||
|
Power Supply
|
|
380-415V/3Ph/50(60)Hz
|
|
||
|
Cooling1
|
Capacity
|
25.2KW-270KW
|
86-921kBtu/h
|
||
|
|
Power input
|
5.3-93KW
|
|
||
|
|
EER
|
4.75-2.85kW/kW
|
|
||
|
Heating2
|
Capacity
|
25.2KW-270KW
|
86-921kBtu/h
|
||
|
|
Power input
|
4.6-77KW
|
|
||
|
|
COP
|
5.5-3.5kW/Kw
|
|
||
|
Compressors
|
Type
|
DC inverter
|
|
||
|
Fan motors
|
Type
|
DC inverter
|
|
||
|
|
Max. ESP
|
20 default（Pa）
|
|
||
|
Refrigerant
|
Type
|
R410A
|
|
||
|
Aiflrow rate
|
|
11000-75000 m3/h
|
|
||
|
|
|
58-68dB(A)
|
|
||
|
Ambient temp
|
Cooling
|
-5 to 54℃
|
|
||
|
|
Heating
|
-25 to 24℃
|
|
||
1.Wide Capacity Range
Starring at 8HP, capacity increase in 2HP increments up to 96HP, which is the world's largestsingle-system VRF capacity.
2.Wide Operation Range
The V6 VRF can Operation stably in a wide ambient temperature range: from -5ºC to 54ºC in cooling mode and from -25ºC to 24ºC in heating mode.
3.Long Piping Capability
4.Oil Balance pipe not required
With the new oil management system, there is no need of oil balance pipe.
