1) Pure seamless titanium tube . Thickness 0.8 mm. The Grade is TA1.
2) The titanium coil pressure loading capacity was designed base R410a high pressure work condition, The max. working pressure is
52 bar. and the extreme pressure was 360bar in our test.
3) 100,000 times alternating pressure (Low pressure 0 bar, high pressure 52bar) test shows it can be used more than 20 years.
Never corrosion.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Lvjie
-
Liquid Flow Rate:
-
Max 50 M3/h
-
Maximum Working Pressure:
-
4.5Mpa
-
Weight:
-
6 KG
-
Dimension(L*W*H):
-
Customized Made
-
Working Temperature Range:
-
0-50℃
-
Product Name:
-
2HP Evaporator for chemical unit
-
Application:
-
Cooling and heating
-
Feature:
-
Corrosion resistant
-
System:
-
Single system
-
Material:
-
Pure Titanium
-
Outer Shell:
-
PP Plastic
-
Package:
-
Wooden Case
-
Is-customized:
-
Yes
-
After-sales Service Provided:
-
Video technical support/Online support
-
Certification:
-
CE/ISO9001:2008
Quick Details
-
Structure:
-
Tube Heat Exchanger
-
Voltage:
-
220V/50Hz
-
Core Components:
-
Tube
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Lvjie
-
Liquid Flow Rate:
-
Max 50 M3/h
-
Maximum Working Pressure:
-
4.5Mpa
-
Weight:
-
6 KG
-
Dimension(L*W*H):
-
Customized Made
-
Working Temperature Range:
-
0-50℃
-
Product Name:
-
2HP Evaporator for chemical unit
-
Application:
-
Cooling and heating
-
Feature:
-
Corrosion resistant
-
System:
-
Single system
-
Material:
-
Pure Titanium
-
Outer Shell:
-
PP Plastic
-
Package:
-
Wooden Case
-
Is-customized:
-
Yes
-
After-sales Service Provided:
-
Video technical support/Online support
-
Certification:
-
CE/ISO9001:2008
Product Description

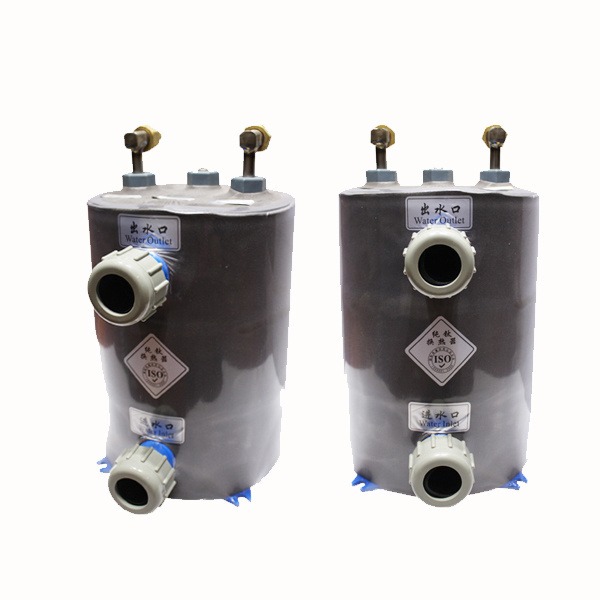

Heat Exchanger For Chemical Unit
Product features: The internal heat exchanger is made of pure titanium/316L/304, has a good corrosion resistance effect and high heat exchanging efficiency. It is non-magnetic, non-toxic and can resist heating well. The outer barrel adopts injection molding with high strength plastics, press solvents into shape. It has a good chemical stability and would not be influenced by environmental factors and medium composition of the pipeline. Also it has a good corrosion resistance,low efficiency of thermal conductivity,insulation, energy-saving effect through a professional welding.
Working pressure: Normal pressure is 0.2Mpa: The equipment has a light weight, compact structure and high power with small size.
Presently, the generally accepted PP/PVC plastics have working temperature limit.
Our factory can choose other materials according to the customers' requirements.
|
Model
|
Specifications
|
Type
|
water inlet/outlet
|
External Dimensions
A B C D E
|
|
WHC-2.0DHW
|
2.0HP
|
Single Circuit
|
1.0
|
520 250 400 80 320
|
|
WHC-3.0DHW
|
3.0HP
|
Single Circuit
|
1.0
|
570 250 450 80 370
|
|
WHC-4.0DHW
|
4.0HP
|
Single Circuit
|
1.0
|
620 250 500 80 420
|
|
WHC-5.0DHW
|
5.0HP
|
Single Circuit
|
1.5
|
720 250 600 80 520
|
|
WHC-6.0DHW
|
6.0HP
|
Single Circuit
|
1.5
|
820 250 700 80 620
|
|
WHC-8.0EHW
|
8.0HP
|
Double Circuit
|
1.5
|
1010 250 900 80 820
|
|
WHC-10.0EHW
|
10.0HP
|
Double Circuit
|
1.5
|
1110 250 1000 80 920
|
|
WHC-12.0EHW
|
12.0HP
|
Double Circuit
|
2.0
|
1310 250 1200 90 1110
|
|
WHC-12.0SHW
|
12.0HP
|
Triple Circuit
|
2.0
|
920 315 800 90 710
|
|
WHC-15.0SHW
|
15.0HP
|
Triple Circuit
|
2.0
|
1120 315 1000 90 910
|
|
WHC-20.0SHW
|
20.0HP
|
Triple Circuit
|
2.0
|
1420 315 1300 90 1210
|
Heat transfer tube:
1) The cups molding by high quality PP material . All the parts RoHS conformance .
2) Due to its perfect structure design, the PVC shell can stand high working pressure. The max working pressure can be 1.2 Mpa,
and the bursting pressure can be 2.3Mpa.
Good appearance, more safe in using, high efficient of heat transfer, easy for installation.
It must be your best choice.
2) Due to its perfect structure design, the PVC shell can stand high working pressure. The max working pressure can be 1.2 Mpa,
and the bursting pressure can be 2.3Mpa.
Good appearance, more safe in using, high efficient of heat transfer, easy for installation.
It must be your best choice.
APPLICATION
Our products are mainly used in seafood breeding, chemical plating, pool heat pump and other fields, to provide customers with high-quality products and services, products can provide customized services
HOT PRODUCT
Wuxi LVJIE Engery Saving Technology Co.,Ltd.designs and manufactures a wide range of heat exchangers for refrigeration,industrial and special applications .Our evaporators and condensers can be manufactured with different materials and can work with all types of fluids and with duty up to 6000 kW. We are prepared for the solution of different heat exchange problems, thanks to the widest experience of technical departments able to suggest technical solutions best suited to each customer's need.
FAQ:
1.Are you factory?
5.When can I get the price?
Yes,we are one of the largest corrosion resistant heat exchanger manufactory in China.
2.Are there any discount for the heat exchangers?
Yes. Bigger quantity will enjoy lower discount!
3.What information needed if I want a quotation?
Please advise us the Type of heat exchangers, Material , Heat Exchanger Capacity, Water Flow, Water Temperature in and out ,Refrigrant Freon Type, Quantity, or any requirements in size.
4.What is the MOQ?
We accept loose quantity order,mixed order,any trial orders.
5.When can I get the price?
We usually quote within 8 hours after we get your inquiry.
