Quick Details
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZEELANG
-
Model Number:
-
ZL-FILM07
-
Color:
-
opaque to clear
-
Transmittance:
-
88%
-
Haze rate:
-
less than 3%
-
View angle:
-
150 degree
-
Working voltage:
-
AC60V
-
Max wide size:
-
1.5M
-
Length:
-
Customerized
-
Working Temperature:
-
-20 degree to +60 degree
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
3D model design
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZEELANG
-
Model Number:
-
ZL-FILM07
-
Color:
-
opaque to clear
-
Transmittance:
-
88%
-
Haze rate:
-
less than 3%
-
View angle:
-
150 degree
-
Working voltage:
-
AC60V
-
Max wide size:
-
1.5M
-
Length:
-
Customerized
-
Working Temperature:
-
-20 degree to +60 degree
Product Description

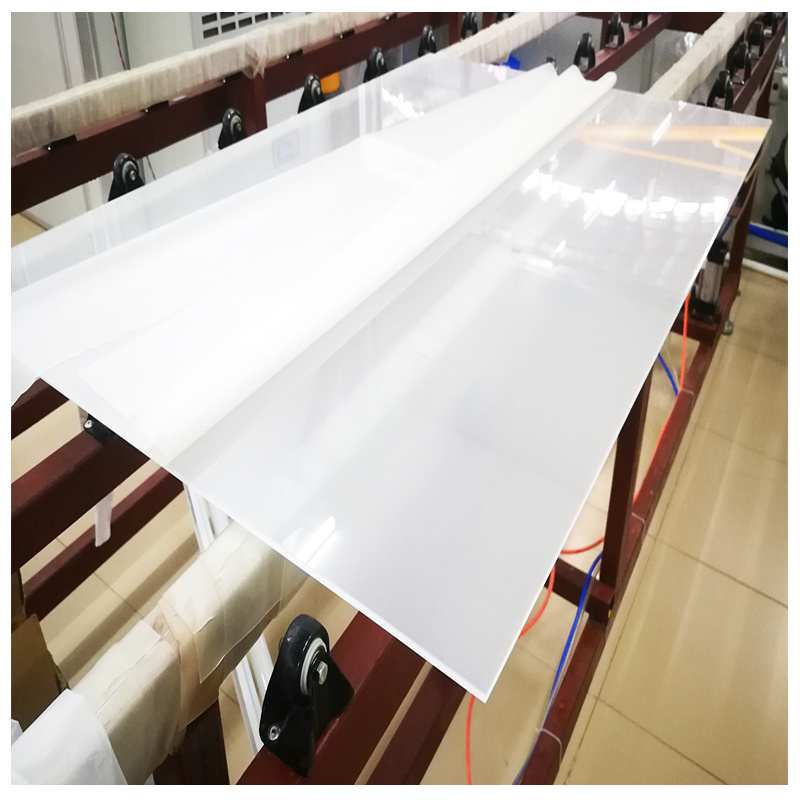

Opaque to Clear Switchable Privacy Magic Smart Glass Electronic Smart PDLC Film Glass
Smart film, also called Switchable film or electronic smart film .It is a product that is capable of adjusting light transmission between transparency and opaque while using AC power.
How to works ?
Smart film tint connection to AC power supply . Film power on , by Changing the orientation of the liquid crystal molecules with an electric field , it is possible to vary the intensity of the transmitted light .
Films power off , as liquid crystal molecules are randomly orientated , restricting lights from passing through .
Feature
Manufacturing Technique
Technology Data
·Power: On: Transparent, Off: Opaque
·Transmittance: 88% ± 1
·Solar Reduction: up to 40%
·UV Block: more than 98%
·Operating Temperature: -13°F ~ 185°F
·Operating Voltage: 48V (Standard Line Voltage)
·Energy Use: 0.4 Watts/SF
Stability Test
Film passing four kinds of stabilty testing.normal condition as follows:
High Temp. Testing : 80℃× 500 hr
Low Temp. Testing: -10℃× 500 hr
High humidity test: 60℃/95% RH × 500 hr
TCT:-10℃(30min)~80℃(30min) × 10 times
Application
Smart dimming film can be widely used many fields , Like bedroom ,hotel , bank , meeting room , office area , curtain wall ,bathroom ,living room , etc .
