Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Realtop
-
Power:
-
11Kw
-
Dimension(L*W*H):
-
2300*3560*1221mm
-
Weight:
-
1200 KG
-
Features:
-

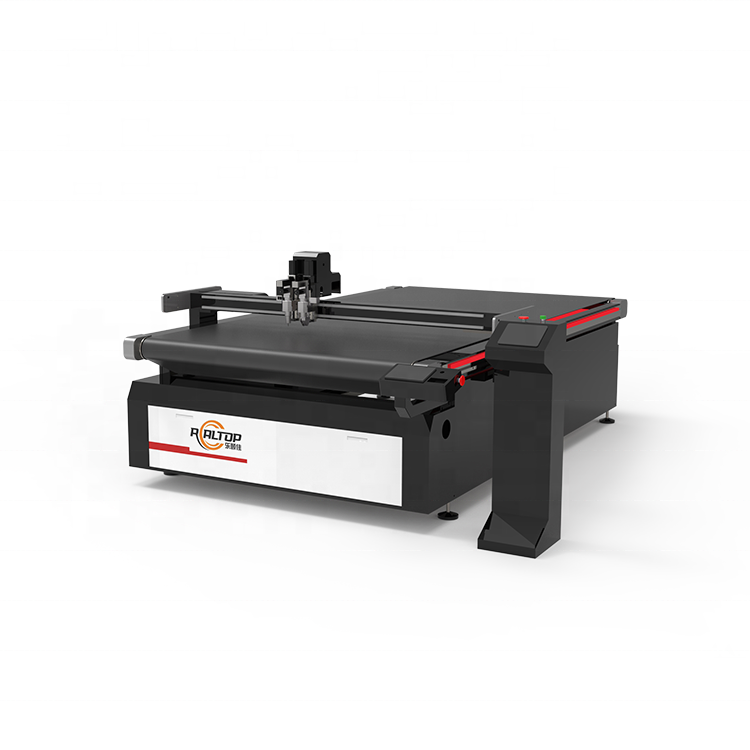

cnc oscillating knife leather cutting machine
-
Product name:
-
Oscillating Knife Cutting Machine
-
Cutting materials:
-
Denim, Fabric, cloth, paper, leather and so on
-
Item Name:
-
Oscillating Vibrating Knife Cloth Cutting Machine
-
Cutting Speed:
-
1000m/s
-
Motor:
-
Delta Servo Motor
-
Cutting precision:
-
≤0.1mm
-
Cutting thickness:
-
50mm
-
Resolution ratio:
-
0.025mm
-
Cutting area:
-
1600*2500mm
-
Size:
-
customizable
Quick Details
-
Production Capacity:
-
50 sets/month
-
Voltage:
-
380v/220v
-
Application:
-
cnc leather cutting machine
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Realtop
-
Power:
-
11Kw
-
Dimension(L*W*H):
-
2300*3560*1221mm
-
Weight:
-
1200 KG
-
Features:
-
cnc oscillating knife leather cutting machine
-
Product name:
-
Oscillating Knife Cutting Machine
-
Cutting materials:
-
Denim, Fabric, cloth, paper, leather and so on
-
Item Name:
-
Oscillating Vibrating Knife Cloth Cutting Machine
-
Cutting Speed:
-
1000m/s
-
Motor:
-
Delta Servo Motor
-
Cutting precision:
-
≤0.1mm
-
Cutting thickness:
-
50mm
-
Resolution ratio:
-
0.025mm
-
Cutting area:
-
1600*2500mm
-
Size:
-
customizable
Product Model
RTT2516
Realtop digital cutting equipment has created an excellent intelligent cutting system in various factories with its efficient and precise design, user-friendly operating software and stable hardware system.
|
|
Technical parameter
|
|
Specification
|
|
||
|
1
|
Some models
|
|
2516 2518 2520 3016 3020
|
|
||
|
2
|
Effective cutting size
|
|
2500*1600 2500*1800 2500*2000 3000*1600 3000*2000
|
|
||
|
3
|
Max idle speed
|
|
2500mm/s
|
|
||
|
4
|
Actual cutting speed
|
|
500-2000mm/s (depending on material thickness and hardness)
|
|
||
|
5
|
Repeated positioning and cutting accuracy
|
|
±0.1mm (depending on material thickness and hardness)
|
|
||
|
6
|
Cutting depth control accuracy
|
|
0.03mm
|
|
||
|
7
|
Repeatability
|
|
±0.01mm
|
|
||
|
8
|
Voltage
|
|
380V or 220V (optional)
|
|
||
|
9
|
Air pump power
|
|
9KW
|
|
||
|
10
|
Main motor power
|
|
2KW
|
|
||
|
11
|
Motor
|
|
Imported Delta drive, optional Japanese Yaskawa, Panasonic servo
|
|
||
|
12
|
Cutting head type
|
|
Imported MAXON vibrating cutter head
|
|
||
|
13
|
Control interface
|
|
7 inch LCD touch screen
|
|
||
|
14
|
Wire and Cable
|
|
German igus high-flex shielded cable (Foldable times of tens of millions of times)
|
|
||
|
15
|
Intelligent calculation
|
|
Computer intelligent automatic nesting module, greatly improving the utilization rate of materials
|
|
||
|
16
|
Photoelectric switch
|
|
Japan OMRON
|
|
||
|
17
|
Electrical components
|
|
France Schneider, Chint
|
|
||
|
18
|
Pneumatic Components
|
|
Taiwan AirTAC
|
|
||
|
19
|
Guide
|
|
Taiwan Shangyin
|
|
||
|
20
|
Rack
|
|
Taiwan yyc
|
|
||
|
21
|
Data transfer interface
|
|
Internet interface
|
|
||
|
22
|
Cutting software
|
|
CUT-REALTOP
|
|
||
|
23
|
Intelligent calculation
|
|
Computer intelligent automatic nesting module to improve material utilization
|
|
||
|
24
|
Format conversion software
|
|
Laser、JDsoft
|
|
||
|
25
|
Red light preview function
|
|
Preview whether the cutting sample is in the material before processing to prevent misoperation
|
|
||
|
26
|
Fault intelligent detection
|
|
Automatically detect electrical faults when power on, and push codes to the system
|
|
||
|
27
|
Cutting real-time monitoring
|
|
Real-time detection of cutting position, which can monitor the current processing piece and its position at any time
|
|
||
|
28
|
Safety equipment
|
|
Infrared blocking stop and anti-collision protection
|
|
||
|
29
|
Feeding method
|
|
Fixed or feeding (optional)
|
|
||
|
30
|
Framework
|
|
Carbon dioxide protection welding bed, secondary vibration aging treatment
|
|
||
|
31
|
Total Weight
|
|
1300kg
|
|
||
|
32
|
Blade
|
|
Tungsten steel customized 35#、26#、16#, etc.
|
|
||
|
33
|
Felt
|
|
4mm Holland imported Ammeraal
|
|
||
