Quick Details
-
Productivity:
-
3M³/H
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
UNIQUE
-
Weight:
-
13500 kg
-
Dimension(L*W*H):
-
9350*2500*3500mm
-
Filling height:
-
1500mm
-
Hopper capacity:
-
0.65m3
-
Water tank capacity:
-
300L
-
Keyword:
-
concrete truck
-
Concrete pump type:
-
Truck Mounted
-
Application:
-
Concrete Transfer
-
Type:
-
Construction Device
-
Color:
-
Customers' Requirement
-
Concrete pump:
-
Concrete Pump Truck
Quick Details
-
Power Type:
-
Diesel
-
Max. vertical conveying distance:
-
20M
-
Max. horizontal conveying distance:
-
180M
-
Productivity:
-
3M³/H
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
UNIQUE
-
Weight:
-
13500 kg
-
Dimension(L*W*H):
-
9350*2500*3500mm
-
Filling height:
-
1500mm
-
Hopper capacity:
-
0.65m3
-
Water tank capacity:
-
300L
-
Keyword:
-
concrete truck
-
Concrete pump type:
-
Truck Mounted
-
Application:
-
Concrete Transfer
-
Type:
-
Construction Device
-
Color:
-
Customers' Requirement
-
Concrete pump:
-
Concrete Pump Truck

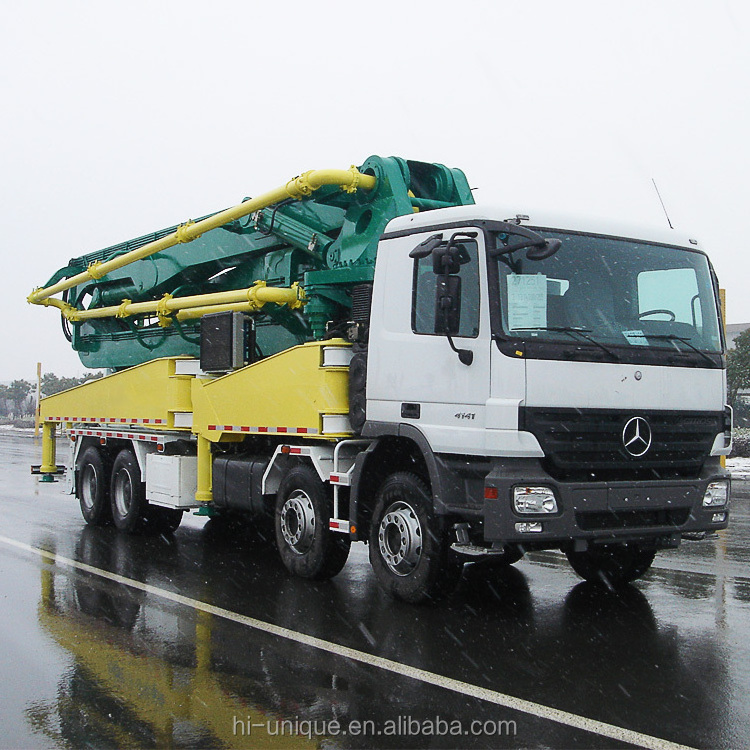

Description of Truck Mounted Concrete boom Pump
Concrete boom pump, also called concrete pump truck, concrete boom pump truck, is extensively used to place concrete to hard-to-reach places accurately with controlled articulating robotic arm (boom) mounted on the truck.
Concrete boom truck is the ideal concrete machine to convey the heavy, viscous, abrasive and gravel mixed concrete along the discharge pipe to long distance with quick setup, high efficiency, excellent uptime.
Features of mini concrete boom pump
1. Automatic withdrawal piston pumping system easier conservation
2. Lightweight 18-39 m boom, flexible operation.
3. X-type legs designed to make the operation more stable and more secure
4. Cost-effective, Wide space of Platform loadable pipe.
5. Automatic and intensive lubrication system.
Parameters of Truck Mounted Concrete Line Pump :
|
Model |
JH |
Units |
JH50-18m |
JH50-21m |
JH53-24m |
JH50-25m |
|
Pumping system |
Max concrete discharging pressure |
Mpa |
13/7.6 |
13/7.6 |
13/7.6 |
13/7.6 |
|
Rated working pressure |
Mpa |
31.5 |
31.5 |
31.5 |
31.5 |
|
|
Pumping frequency |
min-1 |
14/23 |
14/23 |
14/23 |
14/23 |
|
|
Hopper capacity |
m3 |
0.65 |
0.65 |
0.65 |
0.65 |
|
|
Filling height |
mm |
1500 |
1500 |
1500 |
1500 |
|
|
Hydraulic system form |
Open |
Open |
Open |
Open |
||
|
Distribution valve model |
S tube valve |
S tube valve |
S tube valve |
S tube valve |
||
|
Oil tank diameter |
mm |
φ125 |
φ125 |
φ125 |
φ125 |
|
|
Concrete cylinder diameter |
mm |
φ200 |
φ200 |
φ200 |
φ200 |
|
|
Hydraulic oil cooling |
Air cool |
Air cool |
Air cool |
Air cool |
||
|
Placing boom |
Max winding height |
m |
21 |
21 |
24 |
21 |
|
Turning angle |
° |
365 |
365 |
365 |
365 |
|
|
Arm angle |
° |
90°/180°/365°/540° |
||||
|
Arm number |
section |
3 |
3 |
4 |
4 |
|
|
Chassis &Vehicle |
Chassis model |
DFL1120B |
DFL1120B |
DFL1120B |
DFL1120B |
|
|
ZZ1164G |
ZZ1164G |
ZZ1164G |
ZZ1164G |
|||
|
Wheelbase |
mm |
4500/4700 |
4700/5000 |
4700/5000 |
4700/5000/5200 |
|
|
Max motor power |
kw/rpm |
132/2200 147/2200 |
132/2200 147/2200 |
132/2200 147/2200 |
132/2200 147/2200 |
|
|
Effluent standard |
China IV |
EUIII |
EUIII |
China IV |
||
|
Total weight |
kg |
13500/14000 |
15500 |
16500 |
15500 |
|
|
Diameter(L*W*H) |
mm |
9350×2500×3500 |
9450×2500×3500 |
9650×2500×3500 |
9650×2500×3500 |
|
|
Other |
Hydraulic oil tank volume |
L |
300 |
300 |
300 |
300 |
|
Water tank capacity |
L |
300 |
300 |
300 |
300 |
|
|
Lubricating system |
Centralized automatic lubrication |
|||||
|
Control system |
Manual + Remote |
Manual + Remote |
Manual + Remote |
Manual + Remote |
||
UNIQUE has the 12 workshops to produce every part of concrete pump truck and we can produce spare parts to delivery thern to you within 2 days.
UNIQUE was founded in 1973, more than 40 years dedicated to building construction enterprises make the most suitable products and services.
