- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
CXZTCL
-
Product name:
-
Stainless Steel Ball Valve
-
Keyword:
-
mechanical float valve
-
Connection type:
-
Thread Interface
-
MOQ:
-
50pcs
-
Body material:
-
304/306L
-
Working pressure:
-
0-1.6 Mpa(16bar)
-
Usage:
-
Water level Control
-
Seal Material:
-
Silicone Rubber
-
Temperature:
-
<120°
Quick Details
-
Port Size:
-
G1/2"-4"
-
Place of Origin:
-
Fujian, China
-
Model Number:
-
CXST-300
-
Brand Name:
-
CXZTCL
-
Product name:
-
Stainless Steel Ball Valve
-
Keyword:
-
mechanical float valve
-
Connection type:
-
Thread Interface
-
MOQ:
-
50pcs
-
Body material:
-
304/306L
-
Working pressure:
-
0-1.6 Mpa(16bar)
-
Usage:
-
Water level Control
-
Seal Material:
-
Silicone Rubber
-
Temperature:
-
<120°

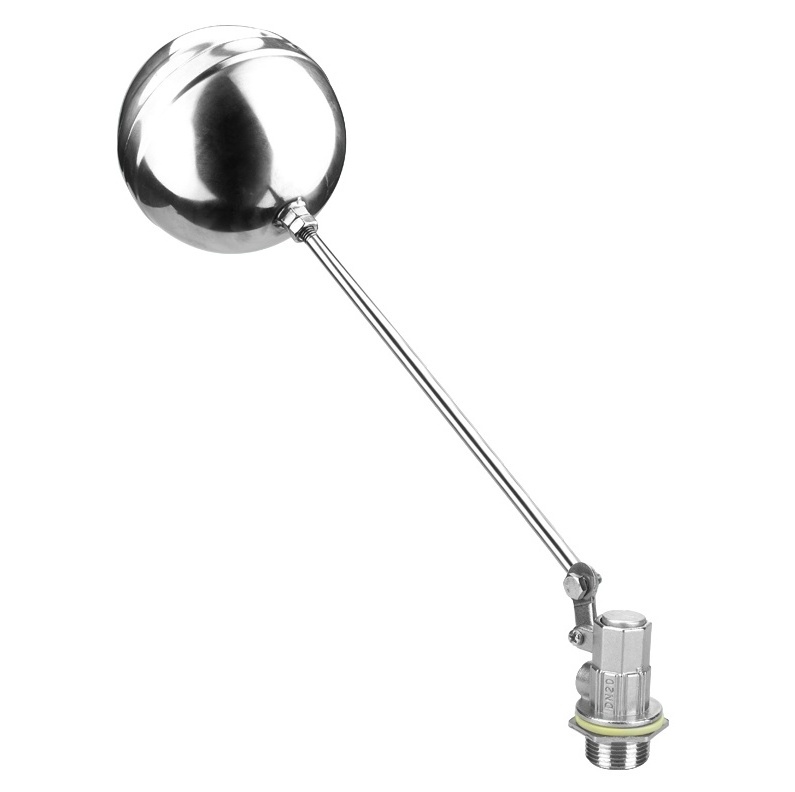

Good Quality 2 Inch Stainless Steel Ball Float Valve For Water Tank and Water Tower
Description
Item: float valve
Material: CF8M/316,CF8/304, plastic,brass
Size: 1/2"~4"(DN15~DN100)
end: thread end
Work pressure: 0.05Mpa~1.6Mpa
Suitable medium: Frash water, oil,and some corrosive liquids
work temperature: less 100 degree
| float ball diameter | Ball arm diamater | Ball arm length | body valve screw diamter | water output diameter | |
| 1/2"-DN15 | 9.5CM | 20.5CM 6MM | 20.5CM | 2CM | 1.2CM |
| 3/4" -DN20 | 11CM | 20.5CM 6MM | 20.5CM | 2.5CM | 1.2CM |
| 1"-DN25 | 13.5CM | 20.5CM 8MM | 20.5CM | 3.2CM | 1.5CM |
