Quick Details
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Hualian
-
Dimension(L*W*H):
-
2950*1040*1700mm
-
Weight:
-
670 KG
-
Air supply(Mpa):
-
0.5-0.8
-
Sealing power (kw):
-
2
-
Vacuum pump rate(m3/h):
-
63
-
Capacity (times/ min):
-
Sealing only 10-12, vacuum gas filling 3-5
-
Max.Width of Roll Film(mm):
-
450
-
Max.Diameter of Rol Film(mm):
-
300
-
Max.Packing Height(mm):
-
120 (can be customized)
-
Min.Sealing Edge Width(mm):
-
6 (can be customized)
-
Max.Packing Size(L*W)(mm):
-
380*380
-
Dimension Size(L*W*H)(mm):
-
2800*950*1620
Quick Details
-
Packaging Type:
-
Stand-up Pouch, Bags, Pouch
-
Packaging Material:
-
Plastic
-
Driven Type:
-
Electric
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Hualian
-
Dimension(L*W*H):
-
2950*1040*1700mm
-
Weight:
-
670 KG
-
Air supply(Mpa):
-
0.5-0.8
-
Sealing power (kw):
-
2
-
Vacuum pump rate(m3/h):
-
63
-
Capacity (times/ min):
-
Sealing only 10-12, vacuum gas filling 3-5
-
Max.Width of Roll Film(mm):
-
450
-
Max.Diameter of Rol Film(mm):
-
300
-
Max.Packing Height(mm):
-
120 (can be customized)
-
Min.Sealing Edge Width(mm):
-
6 (can be customized)
-
Max.Packing Size(L*W)(mm):
-
380*380
-
Dimension Size(L*W*H)(mm):
-
2800*950*1620
Product Description
Description:

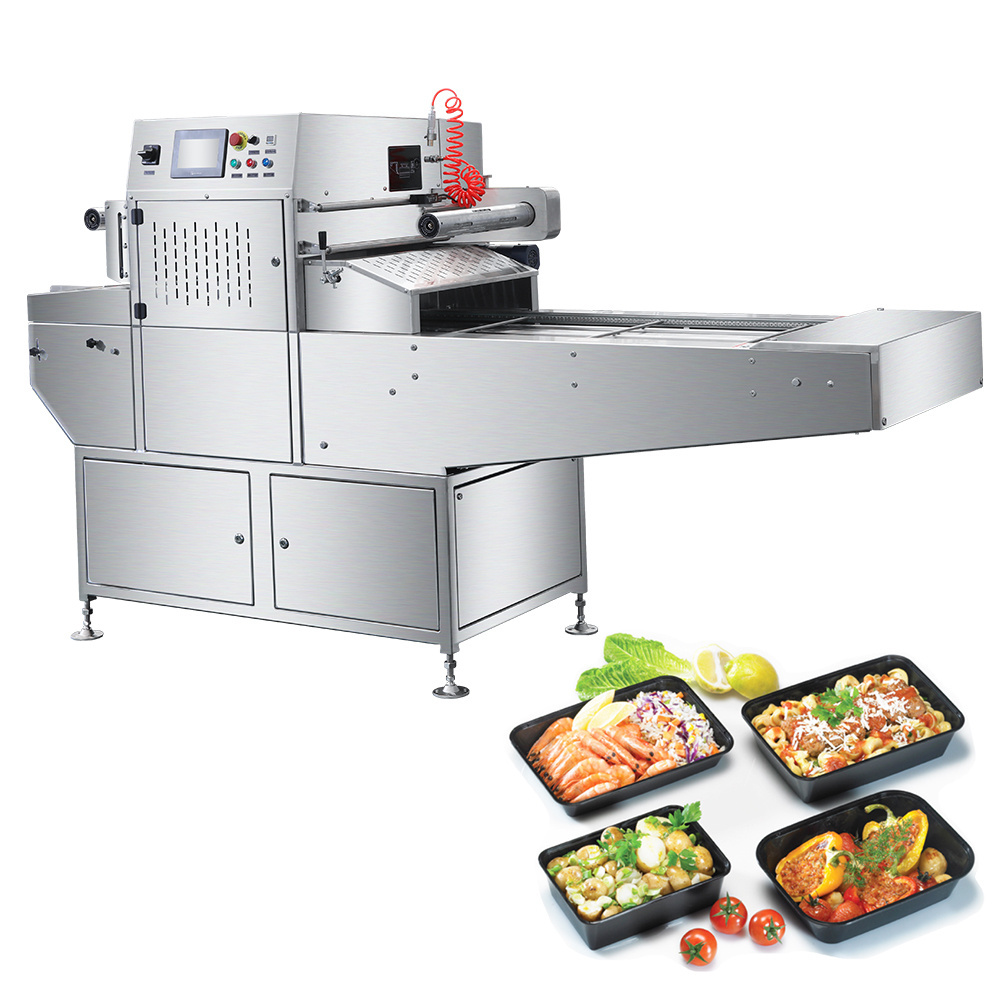

HVT series Automatic Tray Vacuum Gas-flushing Packaging Machine, is a new type of widely-used l packaging machine.
This machine can automatically perform processes of vacuum, gas-flushing, sealing, printing (optional) & film-cutting, featuring high efficiency, good sealing, nice packing appearance & easy operation
Features:
Adopt electricity, gas & mechanism control. The user interface is realized with the touch screen against programmable logic controller (PLC), featuring adjustable process parameters, easy & reliable control and low error rate.
With real-time display function for process states & errors, user can follow up the process states to ensure normal operation.
Being designed with emergency stop switch, the running machine can be stopped urgently for the human & machine security when abnormal situation occurs.
HVT series Semiautomatic Tray Vacuum Gas-flushing Packaging Machine for tray in special size can be customized.
Application:
HVT series Automatic Tray Vacuum Gas-flushing Packaging Machine, apply to automatic film-sealing of the tray made of PP, PE material.
The vacuum gas-flushing packed tray (the products height must not exceed the tray height) can prolong the products shelf life while keeping the products to be fresh and preventing the products from moisture & mold, like the variety of fresh products, fast-food & students lunch food in the supermarkets.
Suitable tray material & film material
Tray material: PP, PE, PET
Film material: PET/CPP, PET/PE, OPP/CPP, EVOH, aluminum foil & other applicable compound film.
Recommend Products
Product Paramenters
|
|
HVT-450A/2
|
|
Voltage (V/Hz)
|
380V/50HZ
|
|
Sealing Power (W)
|
2
|
|
Power (W)
|
4.43
|
|
Ultimate vacuum pressure (KPa)
|
1
|
|
Flushing gas
|
N2orN2+CO2
|
|
Pump capacity (m3 /h)
|
63
|
|
Capacity (times/min)
|
10~12 (for only sealing);
|
|
Cooling type
|
Air cooling
|
|
External dimensions(L×W×H) (mm)
|
2200×940×1750
|
|
Net Weight (kg)
|
670
|
Product packaging
|
Model
|
HVT-450A/2
|
|
Pcs/CTN (pc)
|
1
|
|
Package Type
|
W/C
|
|
Gr. Wt. (kg)
|
961
|
|
Net. Wt. (kg)
|
861
|
|
Dimensions(cm)
|
295*117*198
|
|
Volume each set (cbm)
|
6.834
|
