Quick Details
-
Model Number:
-
Q681F-16P
-
Brand Name:
-
JTAIV
-
Nominalpressure:
-
PN16,2.5,4.0,6.4MPa
-
Strengthtest pressure:
-
PT2.4386.09.6MPa
-
Low pressure gas seal testpressure:
-
0.6MPa
-
Applicabletemperature:
-
-20~180℃
Quick Details
-
Port Size:
-
19mm-159mm
-
Warranty:
-
1 year
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
Q681F-16P
-
Brand Name:
-
JTAIV
-
Nominalpressure:
-
PN16,2.5,4.0,6.4MPa
-
Strengthtest pressure:
-
PT2.4386.09.6MPa
-
Low pressure gas seal testpressure:
-
0.6MPa
-
Applicabletemperature:
-
-20~180℃
Product Description
|
item
|
value
|
|
Warranty
|
1 year
|
|
Type
|

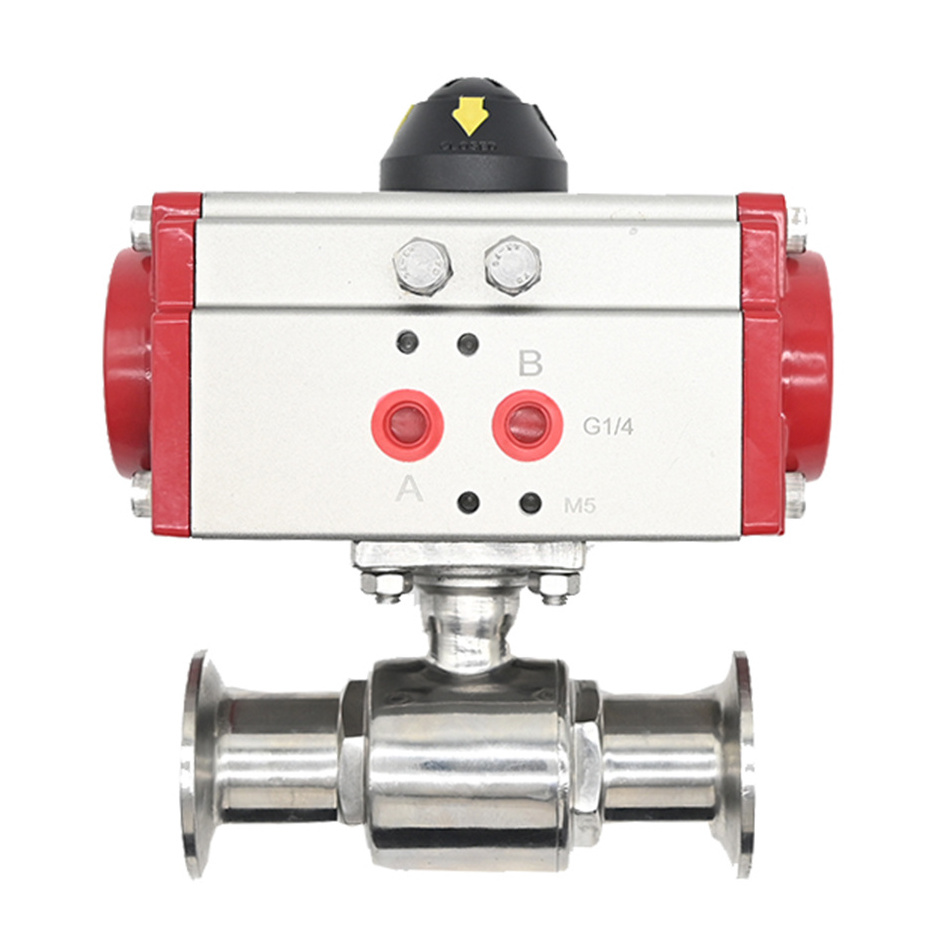

pneumatic Quick-install ball valve
|
|
Customized support
|
OEM, ODM
|
|
Place of Origin
|
China
|
|
|
Zhejiang
|
|
Brand Name
|
JTAIV
|
|
Model Number
|
Q681F-16P
|
|
Application
|
General
|
|
Temperature of Media
|
High Temperature, Low Temperature, Medium Temperature, Normal Temperature
|
|
Power
|
Pneumatic
|
|
Media
|
water, oil, gas, acid
|
|
Structure
|
BALL
|
l.Operating media:
Dry orlubricated air, or the non-corrosive gassesthemaximum particle diameter mustless than 30μm
2.Air supply pressure:
The Min supply pressure is 3 BarThe Max supply pressure is 8 Bar
3.Operating temperature:
Standard:-20°C~+80C
Lowtemperature:-40°C~+80°C
High temperature:-20°C~+160°C
4.Travel adjustment:
Have adjustment range of ±5 for the rotation at O°and 90°
5.Useoccasions:
Indoor or outdoor
Double acting
Air supply connection is designed in accordancewith NAMUR Standard to install solenoid valves.
Indicator cover
The Namur drive pinion and the Namur top mountingconnection permit direct installation of accessoriessuch as limit switch box and positioner.
Bottom connection mode
Bottom mounting connection is designed in accordancewith ISO5211 and DIN3337 standards for direct mountingwith valve gear boxes or mounting brackets
Compressed air is input from port A to make the left
and right pistonsmove in opposite directions,
The output shaft rotates counterclockwiseto open the valve
and air on the sides of the two pistonsExcluded byport B.
Compressed air is input from port B to make the left and rightpistons
move in opposite directions,The output shaft rotatesclockwise to close the valve and the sides of the two pistonsare empty.Gas is removed from port A
Compressed air is input from port A to make the left
and right pistonsmove in opposite directions,
The output shaft rotates counter clockwiseto open the valve and air
on the sides of the two pistonsExcluded byport B.
When losing air or power, the center of the two pistons
moves dueto the action of the spring, and the output Clockwise,
close the valvethe air will be discharged from port A,
and the intake of port B canaccelerate Close the valve.
