Quick Details
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Online support
-
Dimensions (L x W x H) (mm):
-
8560*2350*3420mm
-
Place of Origin:
-
Hubei, China
-
Driving type:
-
4*2/6*2/6*4/8*4/8*6/4*4/6*6/for Choice
-
Fuel:
-
150L
-
Engine:
-
205HP
-
Warranty:
-
6 months
-
Application:
-
Garbage Transpot,Machinery Repair Shops, Manufacturing Plant
-
Certificate:
-
ISO9001 CCC
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
EURO 5
-
Gross Vehicle Weight:
-
10890
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Online support
-
Dimensions (L x W x H) (mm):
-
8560*2350*3420mm
-
Place of Origin:
-
Hubei, China
-
Driving type:
-
4*2/6*2/6*4/8*4/8*6/4*4/6*6/for Choice
-
Fuel:
-
150L
-
Engine:
-
205HP
-
Warranty:
-
6 months
-
Application:
-
Garbage Transpot,Machinery Repair Shops, Manufacturing Plant
-
Certificate:
-
ISO9001 CCC
product photos
Product Overview

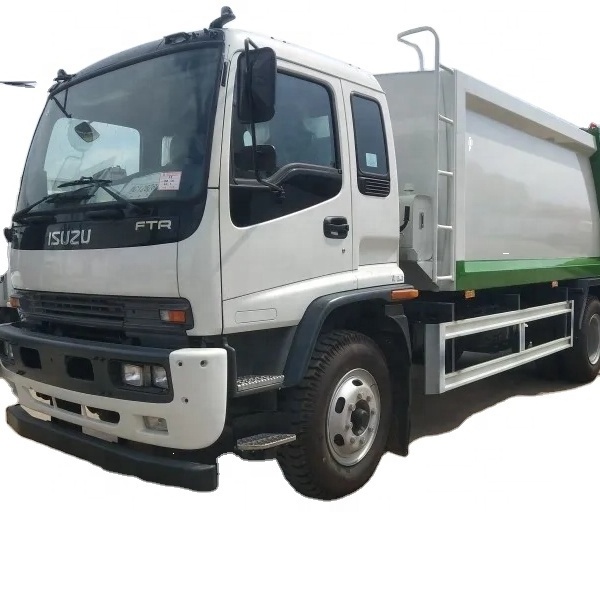

ISUZU 12CBM GARBAGE TRUCK
1. Garbage Bin with different size options of waste collection truck: 2cbm to 12cbm.
2. Hydraulic Control Loading & Unloading System.
3. Different shapes of roll on roll off waste truck bins such as trapzoid,boat-shape,square shape and so on and divided into
above-ground and under-ground type.
4. High-tensile steel chains: imported hydraulic oil cylinder and sealing material.
5. Lifting oil cylinder: double oil cylinder under garbage box,so garbage box can be lifted and self-dumped.
6. Double rear landing leg controlled by hydraulic multi-way valve to stablise truck.
2. Hydraulic Control Loading & Unloading System.
3. Different shapes of roll on roll off waste truck bins such as trapzoid,boat-shape,square shape and so on and divided into
above-ground and under-ground type.
4. High-tensile steel chains: imported hydraulic oil cylinder and sealing material.
5. Lifting oil cylinder: double oil cylinder under garbage box,so garbage box can be lifted and self-dumped.
6. Double rear landing leg controlled by hydraulic multi-way valve to stablise truck.
PRODUCT SPECIFICATIONS
|
CHASSIS
|
|
|
|
Chassis
|
QL1160VMFRY
|
|
|
Wheelbase
|
4500
|
|
|
Wheel Formula
|
4*2
|
|
|
Cab
|
One and a half rows of cabins
|
|
|
Emission standard
|
Eurp 5
|
|
|
Dimensions
|
8500mm*2380*3200
|
|
|
Compacity
|
12m³
|
|
|
Engine
|
|
|
|
Engine model
|
4HK1-TC50
|
|
|
Emission Standard
|
Eurp 5
|
|
|
Rated power
|
150kw/205HP
|
|
|
Engine Fuel
|
Diesel Oil
|
|
|
Gearbox
|
MLD six-speed
|
|
|
Max speed
|
95km/h
|
|
|
Tires model
|
10.20R20
|
|
|
The number of Tire
|
6+1 (spare tire)
|
|
|
Front axle
|
6.3T
|
|
|
Rear axle
|
13T
|
|
|
Fuel tank
|
150L
|
|
|
Body
|
|
|
|
Material
|
Q355B
|
|
|
Thickness
|
Bottom :5mm, side :4mm,
|
|
|
Effective volume of filler
|
≥1m³
|
|
|
Filling cycle time
|
≤10S
|
|
|
Feeding cycle time
|
≤10S
|
|
|
Primary feed cycle time
|
12—30 s
|
|
|
Unload garbage time
|
≤35S
|
|
|
Control mode
|
Manual control and electric control
|
|
