Suitable for a variety of shoe uppers cutting.
Perfect dual head async motion control system,
Greatly improve processing speed and quality
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
gbos
-
Power:
-
15000
-
Dimension(L*W*H):
-
1450*1160*1670mm
-
Weight:
-
2500 KG
-
Features:
-
Multi-LAYER CUTTING
-
Name:
-

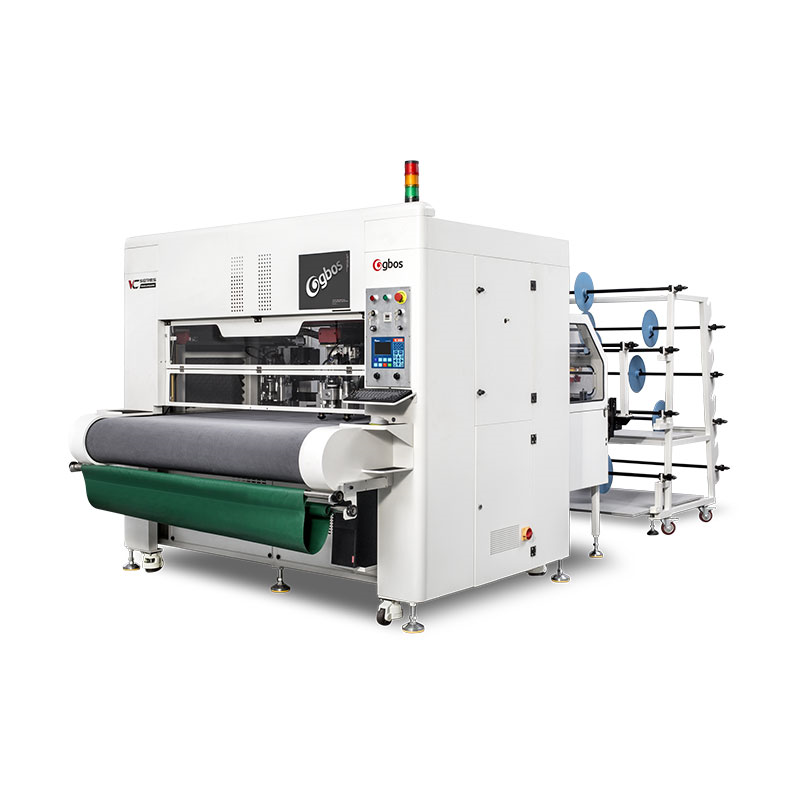

GBOS VC91670TN Oscillating Knife Cutting Machine
-
After Warranty:
-
Spare parts
-
After Warranty Service:
-
Field maintenance and repair service
-
Local Service:
-
Viet Nam
-
Local Service Location:
-
Bangladesh
-
After-sales Service:
-
Video technical support
-
After-sales Service Provided:
-
Online support
-
Certification:
-
ISO,CE
Quick Details
-
Production Capacity:
-
9000 knife
-
Voltage:
-
380V
-
Application:
-
shoe material cutting
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
gbos
-
Power:
-
15000
-
Dimension(L*W*H):
-
1450*1160*1670mm
-
Weight:
-
2500 KG
-
Features:
-
Multi-LAYER CUTTING
-
Name:
-
GBOS VC91670TN Oscillating Knife Cutting Machine
-
After Warranty:
-
Spare parts
-
After Warranty Service:
-
Field maintenance and repair service
-
Local Service:
-
Viet Nam
-
Local Service Location:
-
Bangladesh
-
After-sales Service:
-
Video technical support
-
After-sales Service Provided:
-
Online support
-
Certification:
-
ISO,CE
Product Description
GBOS Oscillating Knife Application
GBOS oscillating knife use the principle of blade with rapid vibration to meet the footwear,leather products.luggage fabric cutting needs.GBOS vibrating knife cutter is committed to building one-step intelligent cutting solutions for shoes industries.
|
GBOS Oscillating Knife Specifications
|
|
|
|
|||
|
MODEL
|
|
VC9-1670T
|
|
|||
|
Processing Area(mm)
|
|
1600×700
|
|
|||
|
Max cutting speed
|
|
1000MM/S
|
|
|||
|
Acceleration
|
|
3000-5000MM/S
|
|
|||
|
Absorbing power
|
|
20M/S
|
|
|||
|
Measurement(mm)(L×W×H)
|
|
2900×2360×1900
|
|
|||
|
Weight(kg)
|
|
2500KG
|
|
|||
|
Gross Power
|
|
6000W
|
|
|||
|
Max power of blower (frequency conversion)
|
|
9800W
|
|
|||
|
System/Compatible Format
|
|
Windows XP/7/8/10,AI,PLT,DXF,DST,DSB
|
|
|||
|
Power Supply
|
|
380VAC,50Hz /40A
|
|
|||
|
Electric knife, pneumatic knife double design
|
|
Standard Pneumatic
|
|
|||
Product Advantage
TWIN-HEAD ASYNC SYSTEM
PARTITIONED VACUUM SYSTEM
Partitioned vacuum system is suitable for any kind of materials.
It can effectively fix the material.
Ensure cutting quality.while also having energy saving design.
AUTOMATIC FEEDING GRIPPING FEED SYSTEM
Multi-materials auto-feeding knitted fabric\cloth\leather\foam\capable of multi-layers feeding.
Suitable for different materials with multi-layers feeding.
With gripping feeding system to ensure high feeding precision and keep smooth for materials.
SMART TYPESETTING SYSTEM
This feature is more reasonable compared with the normal patterns arranging.
It's easier to operate and waste saving.it's capable of arranging odd number of patterns, cutting leftover materials and divided cutting of large pattern.
CCD VISUAL IDENTITY SYSTEM
Feature point locating cutting,
Double Projector positioning preview ,
Instant Preview of Nesting Effects - convenient, fast.
DOUBLE PROJECTION POSITIONING SYSTEM
Instant preview of nesting effects,convenient,fast
MULTI-LAYER CUTTING
Multi-layer feeding,suitable for the mid sole,etc.
High hardness X bridge integrally formed
Compressive strength,strong shock absorption and wear resistance.
Corrosion resistance and dimensional stability,low thermal sensitivity keep high stability accuracy.
IOT SYSTEM
According to basic needs of shoes,
Gbos IOT networking system works data transmission with shoe factory ERP system to help effectively record production data and productivity arrangement.
ELECTRIC&PNEYMATIC KNIFE HEAD DESIGN
Catering to a variety of cutting needs, multi-options are available including 5 types of knife,
1 marking pen.
2 types of punching heads (electric & pneumatic) - high speeds separate punching.
Cutting Samples
GBOS vibrating knife cutter applicable Materials:
Suitable for TPU,EVA,PU,upper processing,insole,bags,belts,fabric,textile,mesh, leather, synthetic leather.
|
Materials
|
Cutting Layers
|
Mark
|
|
|
|
3MM Lining
|
6
|
Multi-layer easily lead to fragment deformation. Adjustment needed based on actual situation
|
|
|
|
3.5MM Insole
|
2
|
|
|
|
|
1.5MM BRAVO 3W
|
6
|
|
|
|
|
1MM Insole Cardboard
|
8
|
|
|
|
|
1.8MM Mesh fabric
|
4
|
|
|
|
|
1.5MM Shoe Tongue
|
6
|
|
|
|
About GBOS
GBOS LASER INC. A national high-tech enterprise dedicated to provide laser intelligent solution globally.
Since it was established in 2005, GBOS Laser Brand has been devoted to the research and development, innovation, production and sales of medium and high-end laser systems. So far, it has launched more than 150 kinds of intelligent laser systems, and product lines cover laser marking, cutting, drilling, engraving and other fields. The company has passed the industry's ISO9001.2008 quality management standard and its core technology has won several national patents and software copyrights. A number of products have passed the EU CE certification and the U.S.certification.
The company's core technology, talent, and innovation have created the most comprehensive product line of laser systems in the industry. As the industry leader in intelligent laser systems, our laser systems are being used in various countries and regions worldwide, and customers range from small family-owned businesses to large highly automated enterprises. We believe that our leading laser system can help you to develop and maintain a competitive advantage.
"All GBOS people will be proud of the well-known GBOS". We make every effort to create the world's leading brand in the laser industry.
Exhibition
GUANGZHOU CHINA SHOES MATERIAL MACHINARY FAIR
Located in Guangzhou
SIMAC &TANNING-TECH INTERNATIONAL EXHIBITION OF MACHINES AND TECHNOLOGIES FOR FOOTWEAR AND LEATHERGOODS AND TANNING INDU
Located in Italy
CHINA INT'L SEWING MACHINERY & ACCESSORIES SHOW
Located in Shanghai
VIETNAM SAIGON TEXTILE&GARMENT INDUSTRY FABRIC&GARMENT ACCESSORIES EXPO
Located in Vienam
Our Service
Pre-sales
✔Free sample testing
✔Professional introduction
✔Multilingual o nline services
✔Warranty available and prompt delivery
After-sales
✔Free technical training and software upgrading
✔Remote control and local installation
✔Machine maintenance
FAQ
Q1: What kind of material can vibrating knife work?
Multi-layer cutting for fabric, leather and paper board.
Q2:What is your maximum cutting thickness of vibrating knife cutting machine
Please tell us your materials.We will respond you at precisely thickness.
Q3:When I got oscillating knife cutting machine, but I don't know how to use it. What should I do?
a. We will dispatch the technician for in-house service(installation & training).
b. Also send video and English manual of GBOS oscillating knife cutting machine
c. If you still have any doubts, please contact us via Telephone / Skype / Email / Facebook / Website, will answer you within 8 hours.
Q4: What should I do if it has some problem with the Gbos vibrating knife cutter during warranty period?
We will supply free parts during machine warranty period. While we also supply free life long after-sales service online.
