Quick Details
-
Place of Origin:
-
Guangdong, China
-
Frequency Range:
-
4900-6400MHz
-
Gain:
-
30dBi
-
VSWR:
-
1.8
-
Connector:
-
2xN Female
-
Polarization:
-
Horizontal+Vertical
-
Dimension (mm):
-
Dia. 600
-
Weight:
-
6kg
-
Color:
-
White or Grey
-
Application:
-
Wireless Wifi
-
Keywords:
-
MIMo Dish 30dBi Antenna
Quick Details
-
Type:
-
2.4GHz & 5GHz Antenna
-
Brand Name:
-
XJS
-
Model Number:
-
XJS-DP-D4964-30HV
-
Place of Origin:
-
Guangdong, China
-
Frequency Range:
-
4900-6400MHz
-
Gain:
-
30dBi
-
VSWR:
-
1.8
-
Connector:
-
2xN Female
-
Polarization:
-
Horizontal+Vertical
-
Dimension (mm):
-
Dia. 600
-
Weight:
-
6kg
-
Color:
-
White or Grey
-
Application:
-
Wireless Wifi
-
Keywords:
-
MIMo Dish 30dBi Antenna
|
Model
|
XJS-DP-D4964-30HV
|
|
Frequency Range
|
4900-6400MHz
|
|
Gain
|
30dBi
|
|
VSWR
|
≤ 1.8
|
|
Polarization Type
|
Vertical and horizontal
|
|
Input Impedance
|
50Ω
|
|
Horizontal Beamwidth
|
5.5°
|
|
Vertical Beamwidth
|
5.5°
|
|
Maximum Power
|
100W
|
|
Connector Type
|
2*N Female
|
|
Lighting Protection
|
DC Ground
|
|
Dimension
|
Dia. 600mm
|
|
Weight
|
6.0 Kg
|
|
Rated Wind Velocity
|
210km/h
|
|
Working Temperature
|
-40℃~+60℃
|

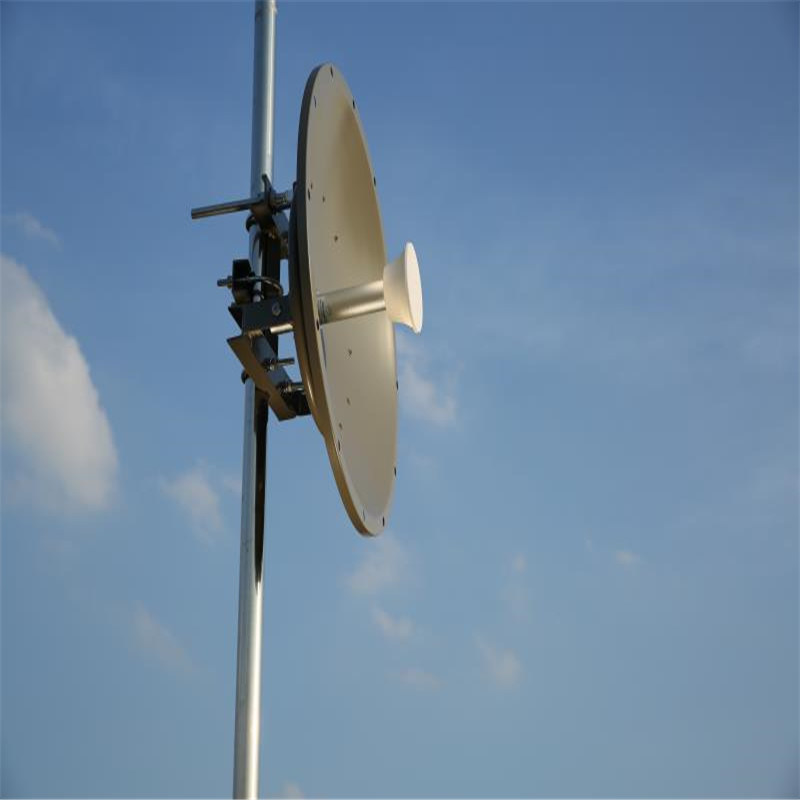

The model TDD-4964-30HV with the I shaped mounting bracket, is always chosen by our customers.
Depending on the needs of customers, we can provide customer with a Radio mounting bracket and waterproof cover.
Customers can consider a lower cost mounting bracket according to the budget.
The same quality antenna, but a different mounting bracket.
Radiation Pattern
H Pol
V Pol
Product packaging
The general carton with 2 sets of dish antenna.
The antenna mounting bracket is L shaped bracket.
For large orders, customers can choose this package to save the shipping cost.
The foam carton with 1 set of dish antenna.
The antenna mounting bracket is I shaped bracket.
For small orders, customers can choose this package to avoid damage to the goods in transit
