Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
VOLCANO ELECTRIC
-
Model Number:
-
VOL-BLDC550C12
-
Torque:
-
3.28
-
Product Name:
-

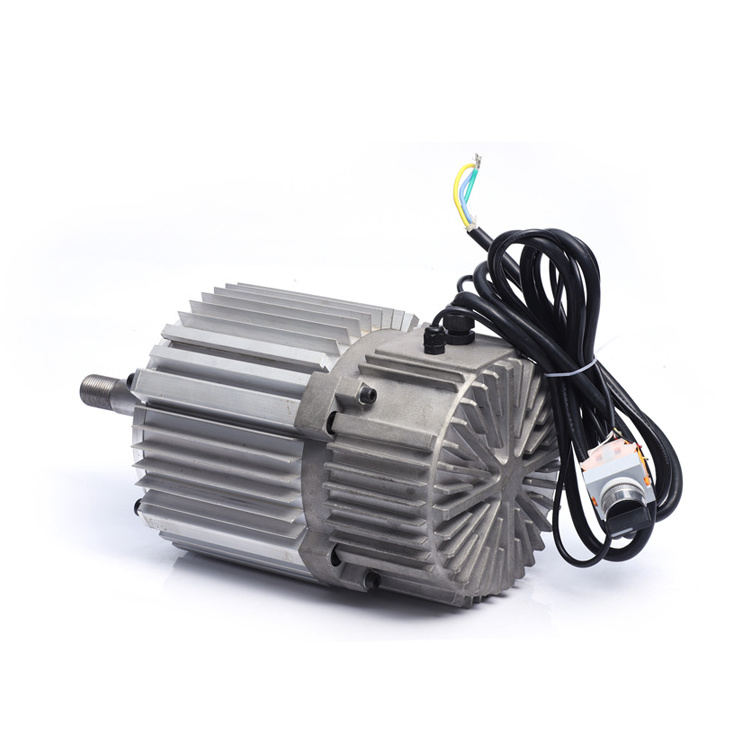

Battery powered 550W 12V DC Motor
-
Motor type:
-
Brushless DC Motor
-
Size:
-
71S ( 108*108*172mm)
-
Sensor:
-
Hall Sensor
-
IP:
-
54
-
Overload ability:
-
2 Times
-
Speed range:
-
0-1600RPM
-
Housing:
-
Aluminum
-
Insulation Class:
-
Class F
Quick Details
-
Speed(RPM):
-
1600rpm
-
Continuous Current(A):
-
57.3
-
Efficiency:
-
Ie 3
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
VOLCANO ELECTRIC
-
Model Number:
-
VOL-BLDC550C12
-
Torque:
-
3.28
-
Product Name:
-
Battery powered 550W 12V DC Motor
-
Motor type:
-
Brushless DC Motor
-
Size:
-
71S ( 108*108*172mm)
-
Sensor:
-
Hall Sensor
-
IP:
-
54
-
Overload ability:
-
2 Times
-
Speed range:
-
0-1600RPM
-
Housing:
-
Aluminum
-
Insulation Class:
-
Class F
|
Motor type
|
Output
|
Voltage
|
Load
|
Speed
|
Rated Torque
|
Efficiency
|
|
KW
|
V
|
A
|
RPM
|
N.m
|
%
|
|
|
VOL-BL075B48
|
0.75
|
48
|
16.98
|
3000
|
2.39
|
92
|
|
VOL-BL1K0C48
|
1
|
48
|
24.5
|
2500
|
3.82
|
85
|
|
VOL-BL1K2C24
|
1.2
|
24
|
63.3
|
4200
|
2.73
|
79
|
|
VOL-BL1K2C36
|
1.2
|
36
|
39.7
|
2270
|
5.05
|
84
|
|
VOL-BL1K5C24
|
1.5
|
24
|
73.5
|
2590
|
5.53
|
85
|
|
VOL-BL1K5C72
|
1.5
|
72
|
23.5
|
3200
|
4.48
|
89
|
Q:
Motor has been running then fails to start,what to do?
A:
Likely cause: Fuse or circuit breaker is tripped.
What to do: Replace the fuse or reset the breaker.
Likely cause: Armature is shorted. Motor may make a humming noise and the circuit breaker or fuse will trip.
What to do: Disassemble motor and inspect the armature for a burnt coil. Inspect the commutator for burnt bars. If this condition exists, the motor needs to be replaced.
Likely cause: The brushes may be worn down too far and no longer make contact with the commutator.
What to do: Check the brushes to make sure that they are still making contact with the commutator. Contact manufacturer for brushes.
Likely cause: Controller may be defective.
What to do: Verify voltage is coming out of the controller.
Q:
On initial installation, motor fails to start up,what to do?
A:
Likely cause: Motor is incorrectly wired
What to do: Verify that the motor is wired correctly.
Likely cause: No output power from controller.
What to do: Measure voltage coming from the controller.
Likely cause: Motor is damaged and the armature is rubbing against the magnets.
What to do: Disassemble motor and see if the armature can be realigned by reassembly. Motor may have to be replaced.
Q:
Motor takes too long to accelerate,what to do?
A:
Likely cause: Motor controller not properly set.
What to do: Adjust the acceleration trim pot of the controller.
Likely cause: Brushes are worn.
What to do: Verify brush length.
Likely cause: Bearings may be defective.
What to do: Inspect bearings. Noisy or rough bearings should be replaced.
Q:
Motor runs in the wrong direction,what to do?
A:
Likely cause: Incorrect wiring
What to do: Interchange the two motor leads.
Q:
Motor runs OK but has a clicking noise,what to do?
A:
Likely cause: Suspect a burr on the commutator.
What to do: Remove burr from commutator using a commutator stone.
