Quick Details
-
Application:
-
Workshop/Workhouse/Farmhouse/Courtyard/ etc
-
Design Style:
-
Industrial
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
DUOBANG
-
Model Number:
-
470/720/780/836/840/900/1000/1050/etc
-
MOQ:
-
500 Meters
-
Thickness:
-
0.5-6mm or customized
-
Material:
-
Protective film, Unsaturated resin polyester, Fiberglass
-
Certification:
-
ISO9001:2015
-
Surface:
-
Smooth
-
Service temperature:
-
Normal used in -20°c to 100 °c
-
Anti ultraviolet rate:
-
More than 95%
-
Insoluble content of resin:
-
82.3%
-
Tensile strength:
-
94MPa
-
Tensile modulus of elasticity:
-
7.0GPa
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Other
-
Project Solution Capability:
-
Others
-
Application:
-
Workshop/Workhouse/Farmhouse/Courtyard/ etc
-
Design Style:
-
Industrial
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
DUOBANG
-
Model Number:
-
470/720/780/836/840/900/1000/1050/etc
-
MOQ:
-
500 Meters
-
Thickness:
-
0.5-6mm or customized
-
Material:
-
Protective film, Unsaturated resin polyester, Fiberglass
-
Certification:
-
ISO9001:2015
-
Surface:
-
Smooth
-
Service temperature:
-
Normal used in -20°c to 100 °c
-
Anti ultraviolet rate:
-
More than 95%
-
Insoluble content of resin:
-
82.3%
-
Tensile strength:
-
94MPa
-
Tensile modulus of elasticity:
-
7.0GPa
Product Line
Product Specification

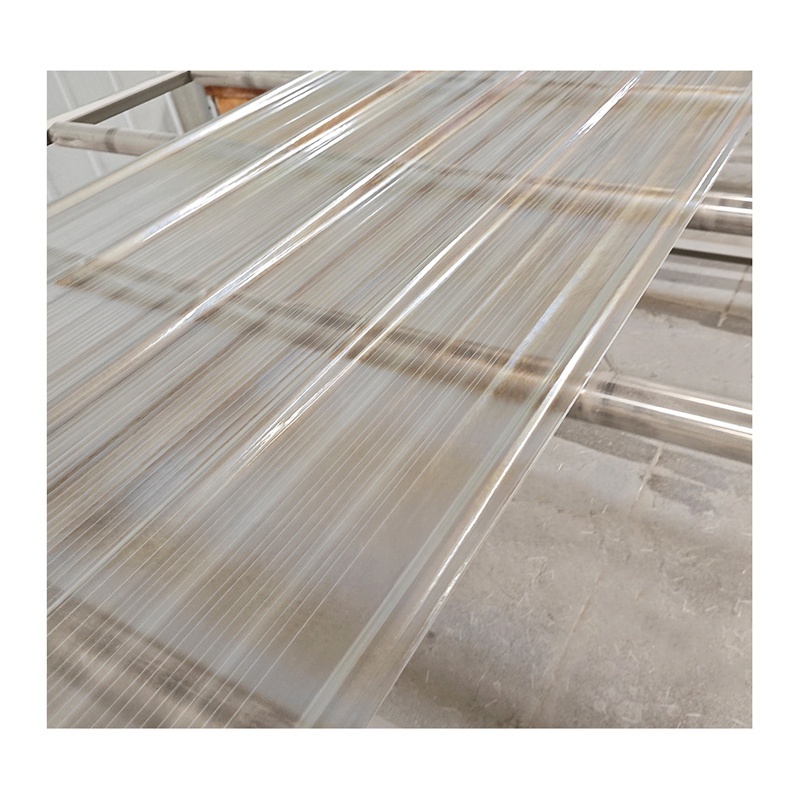

The FRP roofing panels is produced by protective film, unsaturated resin polyester and fiberglass. Adopting
advanced production equipment and continuous forming process.
|
Specification:
|
|
|
|
|
||||
|
Product Name
|
Fiberglass Corrugated Sheet
|
|
|
|
||||
|
Type
|
Light transmission type, Flame retardant type, Steel edge type, anti-corrosion type, Soluble type, Scattering type, etc.
|
|
|
|
||||
|
Material
|
Protective film, Unsaturated resin polyester, Fiberglass
|
|
|
|
||||
|
Technology
|
Thermal cure, Pultrusion
|
|
|
|
||||
|
Surface
|
Smooth
|
|
|
|
||||
|
Weight
|
1800g/2400g/3050g/3050g per square meter
|
|
|
|
||||
|
Temperature
|
Used in -40°c to 120 °c
|
|
|
|
||||
|
Length
|
Customized (Easy to transport)
|
|
|
|
||||
|
Effect Width
|
750mm/760mm/780mm/820mm/840mm/860mm/900mm/910mm,etc
|
|
|
|
||||
|
Thickness
|
0.5-3.5mm or Customized
|
|
|
|
||||
|
Color
|
Customized（RAL Color Chart）
|
|
|
|
||||
|
Certificate
|
ISO9001;ISO14001;ISO45001
|
|
|
|
||||
|
OEM
|
Welcomed
|
|
|
|
||||
|
Usage scenario
|
Factory workshop daylighting, Warehouse, Yard, Farm, Project, etc.
|
|
|
|
||||
Product Features
1)Light transmission: Up to 89%.
2)Impact resistance: The special structure helps resist spalls or hails.
3)Service Temperature: Normal used in -40°c to 120 °c.
4)Heat stability: The displacement is small when heated with metal, hard to leak.
5)Anti Ultraviolet Rate: more than 99%.
6)Fire retardant: Adapt to the national standard, Grade Ⅰand Grade Ⅱ.
7)Waterproof: 100% waterproof.
8)Lightweight: Low density, with lighter weight than metal material.
9)Protect Environment: No polluting gas is released.
Product Applications
FRP roofing flat panel/sheet usually use a protecting facility in construction site, steel structured
workshop and warehouse, canopy, packing sheds, corridors, studio light awning and greenhouse
as the excellent light transmittance.
1)As roof skylights and side skylights of steel structured workshop and warehouse
2)Greenhouses for vegetables,animals,aquatic products
3)Road signs and advertisements, billboards on lamp boxes
4)Telephone booths, restrooms, convenience stores, mobile house, commercial kitchens
5)Skylights and partition walls for banks, hospitals, stations, labs, schools
6)Expressways soundproof panel, decorative sheets, sandwich panels
7)Public facilities of canopy, parking sheds, corridors, awnings
8)Refrigerator car, truck box body, wagon panels
Certificates
Sample
Packing & Delivery
Packed by Sea-Worthy Export Standard or Customized
