Quick Details
-
Length:
-
10M-1000M
-
Mesh Size:
-
10MM-700MM
-
Depth:
-
100MD-1000MD
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
LONGLONGSHENG
-
Model Number:
-
SGE2319-TL
-
Certification:
-
ISO/WSC/CNAS/IAF/IEC
-
product name:
-
Karl mayer second-hand fishing net machine
-
knotted type:
-
knotless net
-
working needle:
-
latch needle
-
number of guide:
-
8bars
-
width:
-
180;220;260;338
-
pattern drive:
-
chain links
Quick Details
-
Plastic Type:
-
PE
-
Knot Type:
-
Single
-
Thickness:
-
160-210D/4PLY-UP(as per request)
-
Length:
-
10M-1000M
-
Mesh Size:
-
10MM-700MM
-
Depth:
-
100MD-1000MD
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
LONGLONGSHENG
-
Model Number:
-
SGE2319-TL
-
Certification:
-
ISO/WSC/CNAS/IAF/IEC
-
product name:
-
Karl mayer second-hand fishing net machine
-
knotted type:
-
knotless net
-
working needle:
-
latch needle
-
number of guide:
-
8bars
-
width:
-
180;220;260;338
-
pattern drive:
-
chain links
Karl mayer second-hand fishing net machine
Discription:
This machine is single neeedle-bar Raschel warp-knitting.It has been developed for many fabrics such as fishing net ,purse net,drag net,gill net.
Purpose & Feature:
The machine is equiped with the opened cam gearing to drive the knitting elements and the 3-roller positive yarn let-off system.
Technical Data:
Machine Type: SGE2319 -180TL,220TL,260TL
Working Needle: Latch needle s
Machine Gauge: E6 ;E7;E8;E9;E12;E14;E16;
Nominal Width: 42'',80'',110'',125'',135'',150'',180'',195'',220'',260'',
Number of guide bars: 2-8
Fabric batching device:2/4rollers with friction drive;center shaft drive;2rollers with friction drive, separately-standing center shaft driven,separately-standing
Machine speed: 200-550rpm
Machine weight :4200kg-11000kg

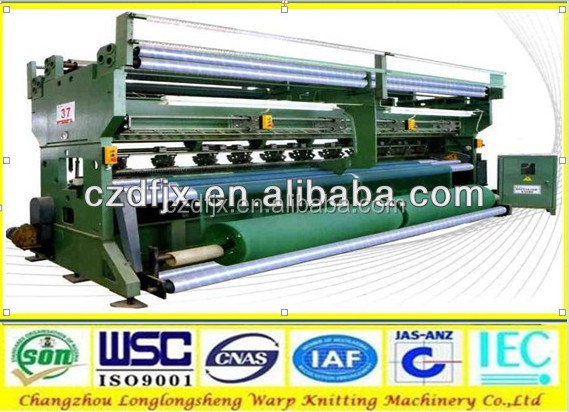

Machine picture:
Out-put production picture:
.
Business negotation:
Machine delivery:
Machine installation & commissioning:
Exhibition:
Our Factory:
Our advantage:
(1): Many years experience.
(2): We are not only manufacturer but also expert in knitting net fabric.
(3): Solve full planning solution
(4): Taking a training skill on maintenance & knitting.
(5): One step after-sales service.
Factory Location:
