Quick Details
-
Brand Name:
-
XCCZC
-
Model Number:
-
30202, 30202
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Tapered Roller Beairngs
-
Material:
-
Chrome Steel GCr15
-
Service:
-
OEM ODM
-
Cage:
-
Steel Cage
Quick Details
-
Precision Rating:
-
P2 P4 P5 P6 P0, P6
-
Seals Type:
-
open, open
-
Number of Row:
-
Single row
-
Brand Name:
-
XCCZC
-
Model Number:
-
30202, 30202
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Tapered Roller Beairngs
-
Material:
-
Chrome Steel GCr15
-
Service:
-
OEM ODM
-
Cage:
-
Steel Cage

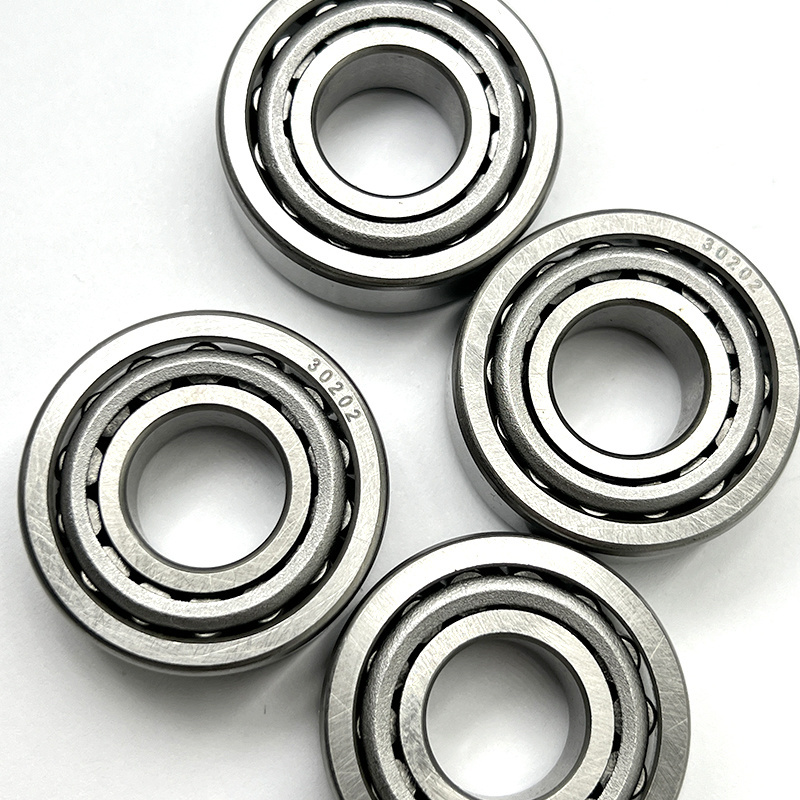

Products Description
|
Model Number
|
30202
|
|
Precision Rating
|
P6
|
|
Seals Type
|
open
|
|
Product name
|
Tapered Roller Beairngs
|
|
Number of Row
|
single row
|
|
Material
|
Chrome Steel GCr15
|
|
Service
|
OEM ODM
|
|
Application
|
Automotive.tractor.construction Machinery.rolling Mill
|
Tapered roller bearings are separated bearings, and the inner and outer rings of the bearings are equipped with tapered raceways. This kind of bearing is divided into single row, double row and four row tapered roller bearings and other different structural types according to the number of rows of rollers installed. Single-row tapered roller bearings can withstand radial loads and axial loads in a single direction. When the bearing bears the radial load, an axial component force will be generated, so it is necessary to balance it with another bearing that can withstand the axial force in the opposite direction
Tapered roller bearing refers to the radial thrust type rolling bearing whose rolling body is a tapered roller. There are small cone angles and large cone angles. The small cone Angle mainly bears the radial and axial combined loads mainly based on radial loads, often used in double, reverse installation, the inner and outer seat rings can be installed respectively, and the radial and axial clearance can be adjusted during installation and use. The large cone Angle mainly bears axial and radial combined loads based on axial loads, and is generally not used to bear pure axial loads alone, but can be used to bear pure radial loads when it is configured (the same name is relatively installed).
Tapered roller bearings mainly bear radial and axial combined loads. The bearing capacity depends on the raceway Angle of the outer ring, and the greater the Angle, the greater the bearing capacity. This type of bearing is a separate type of bearing, which is divided into single row, double row and four row tapered roller bearings according to the number of rows of rolling elements in the bearing. Single-row tapered roller bearing clearance needs to be adjusted by the user during installation; Double-row and four-row tapered roller bearing clearance has been set according to user requirements when the product is delivered, and does not require user adjustment.
Tapered roller bearings have a conical inner ring and an outer ring raceway, and the tapered roller is arranged between the two. The projected lines of all conical surfaces meet at the same point on the bearing axis. This design makes tapered roller bearings particularly suitable for bearing combined (radial and axial) loads. The axial load capacity of the bearing is mostly determined by the contact Angle α. The larger the alpha Angle, the higher the axial load capacity. The Angle size is expressed by calculating coefficient e. The greater the e value, the greater the contact Angle, and the greater the applicability of the bearing to bear the axial load.
Tapered roller bearings are usually of separate type, that is, a tapered inner ring assembly consisting of an inner ring with a roller and a cage assembly can be mounted separately from the tapered outer ring (outer ring).
Tapered roller bearings are widely used in automobile, rolling mill, mining, metallurgy, plastic machinery and other industries.
Product Display
|
Item
Code
|
Dimensions(mm)
|
|
|
Load Ratings(KN)
|
|
Limiting Speed(rpm)
|
|
Weight
(kg)
|
||||
|
Code
|
d
|
D
|
T
|
Cr
|
Cor
|
Grease
|
Oil
|
|
||||
|
30202
|
15
|
35
|
11.75
|
17
|
16
|
9000
|
13000
|
0.05
|
||||
|
30203
|
17
|
40
|
13.25
|
20.7
|
21.9
|
9000
|
13000
|
0.074
|
||||
|
30204
|
20
|
47
|
15.25
|
28.2
|
30.6
|
8000
|
11000
|
0.12
|
||||
|
30205
|
25
|
52
|
16.25
|
32.2
|
37.0
|
7500
|
10000
|
0.15
|
||||
|
30206
|
30
|
62
|
17.25
|
43.3
|
50.5
|
6300
|
8500
|
0.232
|
||||
|
30207
|
35
|
72
|
18.25
|
54.2
|
63.5
|
5300
|
7000
|
0.32
|
||||
|
30208
|
40
|
80
|
19.75
|
63.0
|
74.0
|
4800
|
6300
|
0.42
|
||||
|
30209
|
45
|
85
|
20.75
|
67.9
|
83.6
|
4500
|
6000
|
0.474
|
||||
|
30210
|
50
|
90
|
21.75
|
73.3
|
92.1
|
4300
|
5600
|
0.54
|
||||
|
30211
|
55
|
100
|
22.75
|
90.8
|
113.7
|
3800
|
5000
|
0.709
|
||||
|
30212
|
60
|
110
|
23.75
|
103.3
|
130.0
|
3400
|
4500
|
0.88
|
||||
|
30302
|
15
|
42
|
14.25
|
22.09
|
21.6
|
9000
|
13000
|
0.095
|
||||
|
30303
|
17
|
47
|
15.25
|
28.3
|
27.2
|
8500
|
12000
|
0.13
|
||||
|
30304
|
20
|
52
|
16.25
|
33.1
|
33.2
|
8000
|
11000
|
0.17
|
||||
|
30305
|
25
|
62
|
18.25
|
46.9
|
48.1
|
6700
|
9000
|
0.26
|
||||
|
30306
|
30
|
72
|
20.75
|
59.0
|
63.1
|
5600
|
7500
|
0.387
|
||||
|
30307
|
35
|
80
|
22.75
|
75.3
|
82.6
|
5000
|
6700
|
0.527
|
||||
|
30308
|
40
|
90
|
25.25
|
90.9
|
107.6
|
4500
|
6000
|
0.72
|
||||
|
30309
|
45
|
100
|
27.25
|
108.9
|
129.8
|
4000
|
5300
|
1.01
|
||||
|
30310
|
50
|
110
|
29.25
|
130.1
|
157.1
|
3600
|
4800
|
1.31
|
||||
|
32004
|
20
|
42
|
15
|
25.1
|
28.2
|
9000
|
12000
|
0.097
|
||||
|
32005
|
25
|
47
|
15
|
28.0
|
34.1
|
8000
|
11000
|
0.11
|
||||
|
32006
|
30
|
55
|
17
|
35.7
|
46.8
|
6700
|
9000
|
0.17
|
||||
|
32007
|
35
|
62
|
18
|
43.2
|
59.2
|
6000
|
8000
|
0.22
|
||||
|
32008
|
40
|
68
|
19
|
51.9
|
71.1
|
5300
|
7000
|
0.287
|
||||
|
32009
|
45
|
75
|
20
|
58.4
|
81.4
|
4800
|
6300
|
0.34
|
||||
|
32010
|
50
|
80
|
20
|
61.1
|
89.0
|
4500
|
6000
|
0.37
|
||||
|
32011
|
55
|
90
|
23
|
80.2
|
117.2
|
4000
|
5300
|
0.551
|
||||
|
32012
|
60
|
95
|
23
|
81.7
|
122.2
|
3800
|
5000
|
0.584
|
||||
|
32204
|
20
|
47
|
19.25
|
34.4
|
36.4
|
8000
|
11000
|
0.157
|
||||
|
32205
|
25
|
52
|
19.25
|
43.0
|
48.7
|
7500
|
10000
|
0.174
|
||||
|
32206
|
30
|
62
|
21.25
|
51.8
|
63.7
|
6300
|
8500
|
0.273
|
||||
|
32207
|
35
|
72
|
24.25
|
70.6
|
89.5
|
5300
|
7000
|
0.426
|
||||
|
32208
|
40
|
80
|
24.75
|
77.9
|
97.2
|
4800
|
6300
|
0.53
|
||||
|
32209
|
45
|
85
|
24.75
|
80.7
|
104.0
|
4500
|
6000
|
0.607
|
||||
|
32210
|
50
|
90
|
24.75
|
82.8
|
107.6
|
4300
|
5600
|
0.648
|
||||
|
32211
|
55
|
100
|
26.75
|
108.0
|
142.3
|
3800
|
5000
|
0.853
|
||||
|
32212
|
60
|
110
|
29.75
|
132.8
|
179.6
|
3500
|
4700
|
1.17
|
||||
|
32303
|
17
|
47
|
20.25
|
35.3
|
36.3
|
8000
|
11000
|
0.173
|
||||
|
32304
|
20
|
52
|
22.25
|
42.7
|
46.3
|
7500
|
10000
|
0.230
|
||||
|
32305
|
25
|
62
|
25.25
|
61.6
|
68.8
|
6000
|
8000
|
0.366
|
||||
|
32306
|
30
|
72
|
28.75
|
81.6
|
96.4
|
5300
|
7000
|
0.550
|
||||
|
32307
|
35
|
80
|
32.75
|
99.0
|
118.3
|
4800
|
6300
|
0.73
|
||||
|
32308
|
40
|
90
|
35.25
|
115.7
|
147.8
|
4000
|
5300
|
1.10
|
||||
|
33205
|
25
|
52
|
22
|
50.2
|
59
|
6700
|
10000
|
0.219
|
||||
|
33206
|
30
|
62
|
25
|
63.8
|
75.4
|
5600
|
7500
|
0.342
|
||||
|
33207
|
35
|
72
|
28
|
82.6
|
101.7
|
4800
|
6300
|
0.54
|
||||
|
33208
|
40
|
80
|
32
|
105.8
|
135.5
|
4800
|
6300
|
0.75
|
||||
|
33110
|
50
|
85
|
26
|
89.3
|
124.1
|
4300
|
5600
|
0.572
|
||||
|
33113
|
65
|
110
|
34
|
142
|
219
|
3200
|
4400
|
1.3
|
||||
|
30303D
|
17
|
47
|
15.25
|
24
|
21.3
|
8000
|
11000
|
0.15
|
||||
|
30308D
|
40
|
90
|
25.25
|
81
|
90.9
|
4000
|
5300
|
0.742
|
||||
|
ST4090
|
40
|
90
|
25
|
81
|
90.3
|
4000
|
5300
|
0.693
|
||||
|
31305
|
25
|
62
|
18.25
|
42.7
|
46.2
|
5600
|
7500
|
0.264
|
||||
|
31306J
|
30
|
72
|
20.75
|
50
|
56.6
|
5000
|
6700
|
0.392
|
||||
|
320/22
|
22
|
44
|
15
|
26.1
|
30.3
|
8000
|
10000
|
0.103
|
||||
|
320/28
|
28
|
52
|
16
|
31.4
|
40.4
|
6700
|
8500
|
0.142
|
||||
|
320/32
|
32
|
58
|
17
|
36.5
|
49.2
|
6000
|
7500
|
0.187
|
||||
|
322/32
|
32
|
65
|
22.25
|
46.9
|
52.9
|
6000
|
8000
|
0.100
|
||||
|
32907JR
|
35
|
55
|
14
|
25.6
|
35.4
|
6300
|
8400
|
0.119
|
||||
