Quick Details
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Size:
-
1200*250*200, 1200*250*200mm
-
Place of Origin:
-
China
-
Brand Name:
-
Vulgan
-
Model Number:
-
YZ-3D-1200
-
Fuel:
-
Pure Water
-
Color:
-
Single yellow
-
Product name:
-
3D Water Vapor Fireplace
-
Technical:
-
hyperacoustic nebulizer, led light, fan, motor
-
Advantage:
-
no pollution, no dusty, environmental
-
Weight:
-
36 KGS
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
Others
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Size:
-
1200*250*200, 1200*250*200mm
-
Place of Origin:
-
China
-
Brand Name:
-
Vulgan
-
Model Number:
-
YZ-3D-1200
-
Fuel:
-
Pure Water
-
Color:
-
Single yellow
-
Product name:
-
3D Water Vapor Fireplace
-
Technical:
-
hyperacoustic nebulizer, led light, fan, motor
-
Advantage:
-
no pollution, no dusty, environmental
-
Weight:
-
36 KGS

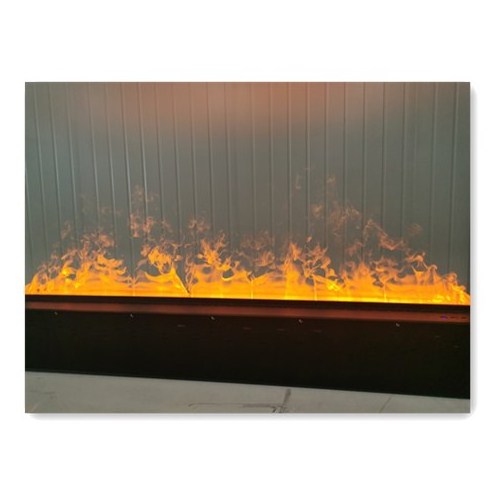

China manufacturer sales 1000 mm length 250mm depth, 200mm height, single color 3D water steam fireplace
|
Product name |
Vulgan brand China YZ-3D-1200mm water steam fireplace |
|
Voltage |
110V-240V globale Workable |
|
Net Size(Length*width*height) |
Panel size: 1200*250*200mm Base size: 1150*215*200mm |
|
Hole size to insert fireplace |
Hole size: 1170*230*220mm |
|
Net weight/G.W. |
7.5/9.56KG |
|
Opening ways |
Remote control and manual |
|
Consumption |
0.8-0.9L/h |
|
Capacity |
1.35 L |
|
Inner power: Led light chip: Atomizer: |
MW(Mean Well) Epistar RIMEI |
|
Functional description |
1. remote controlling system and manual keyboard 2. Automatic test and alarm water volume with alarm sound 3. Set up automatic protection function, when flake flame ran out of power, remind to add water. 4. Flake flame color can be set up with more than 1000 kinds of colors via mobile APP, at the same time, light is available to be adjusted. 5. The height of fake flame can be 150-600mm with 5 levels 6. The uninterrupted flake flame can be kept for 16-18 hours without second adding water. 7. protection device for anti-overflow |
|
Accessories |
English instruction warranty card, remote controller Power adapter, Plastic tube for adding water fuel |
|
Installation requirements |
1. The installation platform must be damp-proof. 2. The reserved inner must be empty and have air blowing or aspirail. 3. The top of installation platform cannot be decorated with anti-light materials. 4. The right side of reserved groove must set up one three eyes socket of 220V or 110V as customized. 5. The recommended height of installation platform is above 300mm. 6. The installation platform must be set and keep absolute parallelism. 7. The installation hole height is recommended to be above 300mm. |
Suitable Place: Lobby,halls,club,villa,outdoor,patio Etc.
Type: Insert , Embedded
wooden boxes or Five layer honey-comb carton with Poly foam, plastic bags, English instruction and plastic strips.
OEM/ ODM packing are also available & acceptable.
1- Prompt answer from customer's inquiry within 24 hours.
2--Manufacturing and assembly experience in electric fireplace and atomized simulation fireplace, alcohol fireplace etc. for more than 10 years.
3--Factory sales to cut the trader' profit in China.0
4--Good quality management system from incoming of raw materials inspection to assembly quality controlling and service after sales.
Quality control system of fireplace:
IQC (Incoming Quality Control of Raw material)
IPQC (In Process Quality Control)
PQC (Process Quality Control)
FQC (Final Quality Control)
OQC (Out-going Quality Control)
5--Good plant location: Shanghai,China.
6--New model of electric fireplace with verisimilar burning sound created by our designer and registered patent in Chinese government.
7—Plant area: 3000 square meters, available for big order supply.
