Quick Details
-
Brand Name:
-
Gold
-
Voltage:
-
380V
-
Power:
-
20kW
-
Dimension(L*W*H):
-
1.2m*1.0m*1.6m
-
Weight:
-
650 kg
-
Function:
-
Dehydration, remove impurities and water from Transformer Oil
-
Features:
-
Double stage high vacuum
-
Raw material:
-
Carbon Steel, Stainless Steel
-
Heating method:
-
Electric heating
-
Type:
-
Closed, mobile type Transformer oil purifier
-
Water content after purifying:
-
3ppm - 5ppm
-
Impurities content after purifying:
-
1um - 3um
-
Product name:
-
used transformer Oil Filtration machine
Quick Details
-
Applicable Industries:
-
power station
-
Flow:
-
1800L/H
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Gold
-
Voltage:
-
380V
-
Power:
-
20kW
-
Dimension(L*W*H):
-
1.2m*1.0m*1.6m
-
Weight:
-
650 kg
-
Function:
-
Dehydration, remove impurities and water from Transformer Oil
-
Features:
-
Double stage high vacuum
-
Raw material:
-
Carbon Steel, Stainless Steel
-
Heating method:
-
Electric heating
-
Type:
-
Closed, mobile type Transformer oil purifier
-
Water content after purifying:
-
3ppm - 5ppm
-
Impurities content after purifying:
-
1um - 3um
-
Product name:
-
used transformer Oil Filtration machine

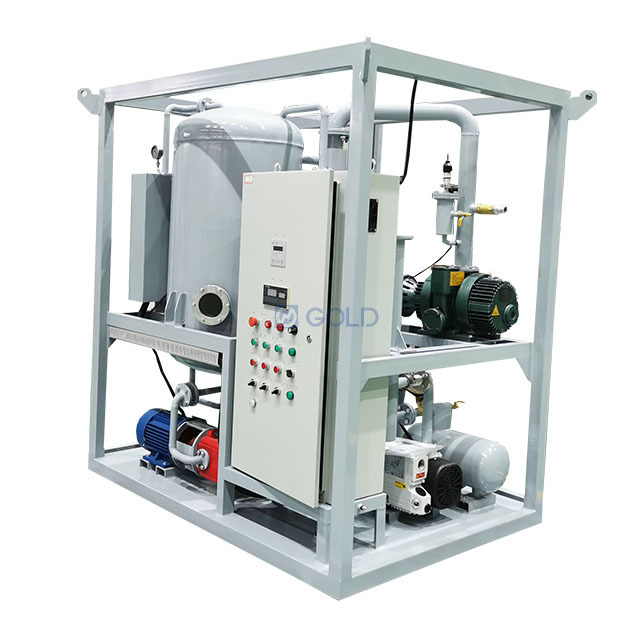

Our ZJA Series Oil Filtration machine is professional for treatment of transformer oil, it can efficiently remove water, gases, acid, particles, etc. from the oil.
ZJA Series Oil Filtration machine
can be installed by sealed regular or movable with a trailer, so it is suitable to treat oil, fill oil in vacuum chamber and circulating dry hot-oil when large transformer is being installed and overhauled.
With the advantages of high working vacuum, high filtration speed, oil quality protection, the filter advanced the oil treatment technique and equipment performance and once can raise the puncture voltage up to over 35V.
One pot with two-stage vacuum-segregating space, it comes into being different pressure so as to keep oil line balance between two stages.
Imported vacuum-pump from Europe has preceding level in the world and high air pump speed guarantee high working vacuity.
New technology of vacuum-segregating adopts particular spinning disk and stainless steel machine with dehydration and air pump
Using new type of heating equipment which can reduce heating burthen and extend oil life.
Oil level control adopts photoelectric way of which the main components are imported from Switzerland.
Customers can choose equipment equipped with all or partly imported components.
It’s equipped with filter assemblies imported from Italy.
All pumps must be airproofed by our factory, moreover running without noise and leakage. extended oil life
Our oil purifier machine Series:
Transformer oil purifier machine Show:
ZJA1.8KY 1800L/H Transformer Oil Recycling Machine:
ZJA6KY 6000L/H Transformer Oil Recycling Machine
Why Choose Us:
- Always Customer First.
- Professional Testing Equipment Supplier,with 5 years experience in this field.
- Exllent after-sale service and Always Competitive Price.
- English operating interface.
- Wtih In-house quality control.All the Equipments will be tested before leaving factory.
- All the Equipment has one year warranty.
