- Product Details
- {{item.text}}
Quick Details
-
WIFI:
-
NO
-
Network:
-
none
-
Customized support:
-
available processing socket accessories
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
LONG-JOIN
-
Model Number:
-
JL-240TZA-14
-
AC outlets quantity:
-
-
-
Cable length:
-
152mm
-
Product name:
-
7 pin nema socket
-
Material:
-
PBT & Add UV stabilizer
-
Certificate:
-
CE ROHS
-
HS CODE:
-
85365000
-
We are factory:
-
Factory in Shanghai city.Best product for you.
-
Brass contacts:
-
0-10V dimming & DAli control
-
LOGO:
-
>500,customized logo
-
Metal Contact Material:
-
copper,brass
-
Waterpoor Degree:
-
contact our sales team
Quick Details
-
Rated Voltage:
-
0-480VAC
-
Rated Current:
-
0-15AMP
-
Application:
-
Residential / General-Purpose
-
WIFI:
-
NO
-
Network:
-
none
-
Customized support:
-
available processing socket accessories
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
LONG-JOIN
-
Model Number:
-
JL-240TZA-14
-
AC outlets quantity:
-
-
-
Cable length:
-
152mm
-
Product name:
-
7 pin nema socket
-
Material:
-
PBT & Add UV stabilizer
-
Certificate:
-
CE ROHS
-
HS CODE:
-
85365000
-
We are factory:
-
Factory in Shanghai city.Best product for you.
-
Brass contacts:
-
0-10V dimming & DAli control
-
LOGO:
-
>500,customized logo
-
Metal Contact Material:
-
copper,brass
-
Waterpoor Degree:
-
contact our sales team
Product Description

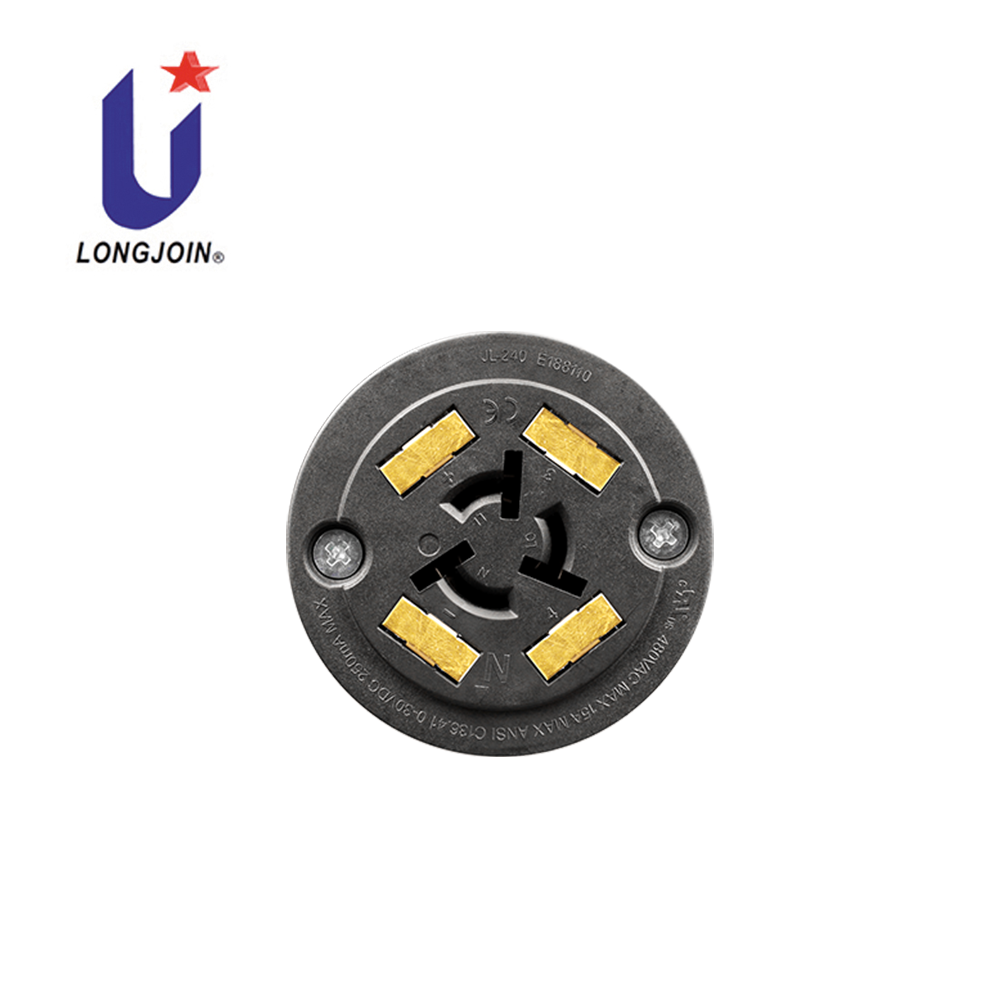

7 PIN NEMA Switch and Socket for Street Long-join Photocell Controller
7pin Receptacle Sensor Specification
| Model | JL-240TZA-14 | ||||||
| Overall Sized(mm) | 65*67 | ||||||
| Rated Voltage | 0-480VAC | ||||||
| Rated Frequency | 50/60Hz | ||||||
| Power Loading | AWG#14: 15AMP max. AWG#16:10A max | ||||||
| Optional Signal Loading | AWG#18: 0.25AMP max, 30VDC | ||||||
| Flammability Level | UL94-0 | ||||||
| Certification | RoHS,CE,ANSI C136.41 | ||||||
Related Products
Tips:
LED street lighting controller product replacement, and will be equipped with a (Narrow Band Internet of Things, NB-IoT) NB-IoT wireless communication technology and NEMA 7-pin receptacle combination for remote lighting control, constant illumination and extended lamp life.
