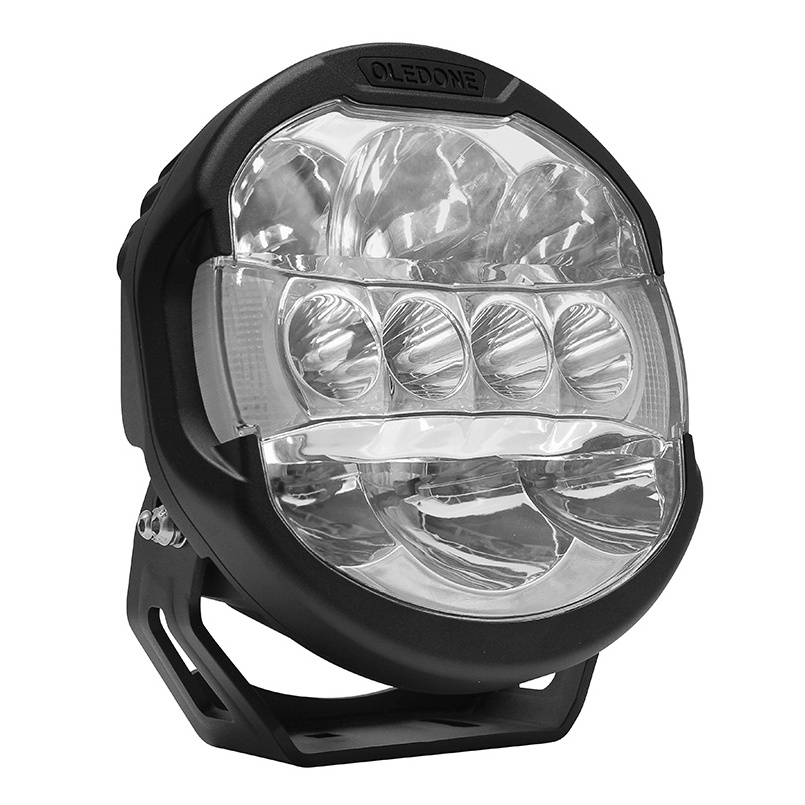

WD-1L150 is equipped with LASER and 0sram LED for more than 3000meter output. Big Bowl type TIR(Total Internal Reflection) Reflector for longer distance.
- Product Details
- {{item.text}}
Quick Details
-
Special Function:
-
Sidershooter/Logo/Position Light
-
Lens:
-
Virtually unbreakable PC lens, light transmittance>93%
-
Housing:
-
Rugged Diecast Aluminum Housing
-
Connection:
-
Deutsch Connector 3 pin
-
Operating Temp.:
-
-40℃~+105℃
-
Lifespan:
-
50,000 hrs
-
Beam Pattern:
-
Spot
-
Environmentally friendly:
-
Contains No mercury, lead or other heavy metal.
Quick Details
-
Place of Origin:
-
Guangdong, China
-
LED Chip:
-
Laser+0sram
-
Power:
-
150W
-
Special Function:
-
Sidershooter/Logo/Position Light
-
Lens:
-
Virtually unbreakable PC lens, light transmittance>93%
-
Housing:
-
Rugged Diecast Aluminum Housing
-
Connection:
-
Deutsch Connector 3 pin
-
Operating Temp.:
-
-40℃~+105℃
-
Lifespan:
-
50,000 hrs
-
Beam Pattern:
-
Spot
-
Environmentally friendly:
-
Contains No mercury, lead or other heavy metal.
Specification
Unique Patent Deisgn with
2pcs
Laser Chips
3RD
Generation Laser chip (Flooded one is 2nd.)
Different with mould public, Flooded everywhere with no characteristics.
|
Setting Information
|
|
|
|
Chip
|
Laser+0sram P9 , 5500K
|
|
|
Input
|
9-32V
|
|
|
Power/output
|
150W 16200lm
|
|
|
light pattern
|
Spot
|
|
|
IP rate
|
IP68
|
|
|
temperature
|
-40℃~+105℃
|
|
|
Lifespan
|
50,000 hrs
|
|
|
EMC
|
EN55025 Class 3
|
|
|
Selling Point
|
Laser Driving Light
|
|
Unique Deisgn 2pcs Laser Chips
The most advanced technology in market
(greater distance, lighter, thinner)
- 1. Logo light 2. Sidershooter 3. Position light
Product Description
Super Spot Beam
2PCS LASER CHIPS
3RD Generation Laser chip
Small and flexible , similar optical principles as LED Chips, easy to design optics.
Meets Class 1 level of relative safety regulations , no harm to human eyes.
Other illegal laser lights have high risk with irreversible damage to human eyes.
Super slim as only
78mm
thickness, easy instation and flexible applications.
(Other laser light is more than 100mm thinkness, requires big installation space.)
Position Light(Amber or white color)
The L150 is always used under the most different conditions worldwide when the best possible illumination, maximum stability and resistance are in demand!
Impact lamp housing coated by upscale automobile paint, UV-stablilized and anti-corrosive.
Equipped with Built-in DT connector.
CISPR 25 CLASS 3 rating approved and ensure do not interfere with EMC functionality.
CE RoHS Waterproof IP68 approvals.
