Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BIOBASE
-
Model Number:
-
11231BBC86
-
Product name:
-
Class II A2 Biological safety cabinet
-
External Size (W*D*H):
-
700*650*1230 mm
-
Internal Size (W*D*H):
-
600*500*540mm
-
Tested Opening:
-
Safety Height 200 mm(8'')
-
Max Opening:
-
370mm(15'')
-
Inflow Velocity:
-
0.53±0.025 m/s
-
HEPA Filter:
-
Two, 99.995% efficiency at 0.3μm. Filter life indicator
-
Front Window:
-
Motorized. Toughened glass . Anti UV
-
Work Surface Height:
-
750mm with optional base stand
-
Power Supply:
-
AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Quick Details
-
Application:
-
Hospital, lab
-
Design Style:
-
Industrial
-
Material:
-
Metal
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BIOBASE
-
Model Number:
-
11231BBC86
-
Product name:
-
Class II A2 Biological safety cabinet
-
External Size (W*D*H):
-
700*650*1230 mm
-
Internal Size (W*D*H):
-
600*500*540mm
-
Tested Opening:
-
Safety Height 200 mm(8'')
-
Max Opening:
-
370mm(15'')
-
Inflow Velocity:
-
0.53±0.025 m/s
-
HEPA Filter:
-
Two, 99.995% efficiency at 0.3μm. Filter life indicator
-
Front Window:
-
Motorized. Toughened glass . Anti UV
-
Work Surface Height:
-
750mm with optional base stand
-
Power Supply:
-
AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Product Description

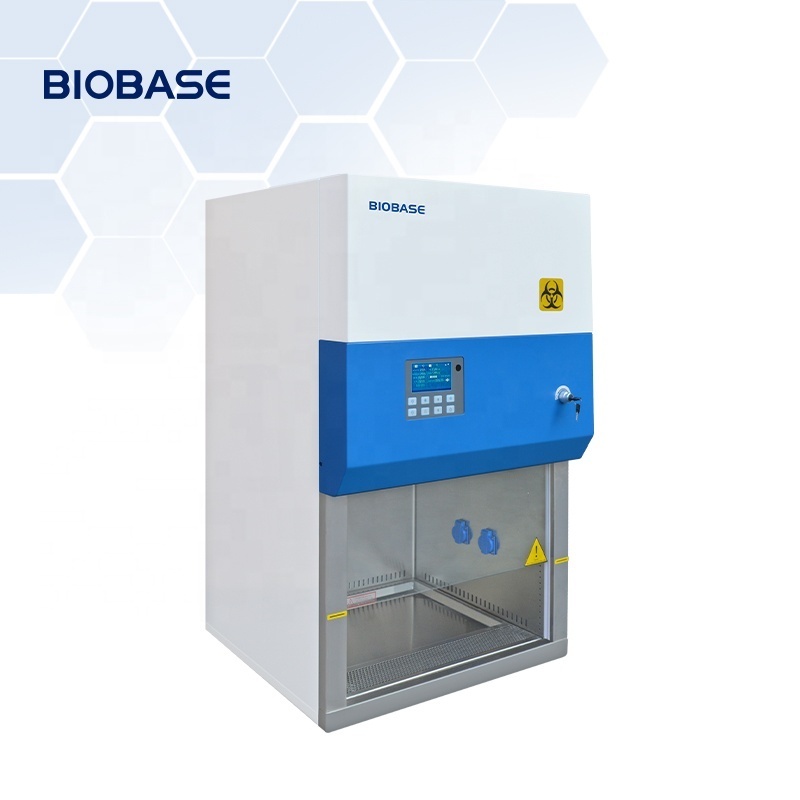

Biological safety cabinet
Three protection: operator, sample and environment. Airflow system: 70 % air recirculation, 30% air exhaust A2 Cabinet is suitable for working with microbilogical research in the absence of working with microbiological research in the absence of volatile or toxic chemicals and radionuclide.
Specification
|
Model
|
11231 BBC 86
|
|
External Size
(W*D*H) |
700*650*1230 mm
|
|
Internal Size
(W*D*H) |
600*500*540mm
|
|
Tested Opening
|
Safety Height 200 mm（8’’）
|
|
Max Opening
|
370mm(15’’)
|
|
Inflow Velocity
|
0.53±0.025 m/s
|
|
Down flow Velocity
|
0.33±0.025 m/s
|
|
HEPA Filter
|
Two, 99.995% efficiency at 0.3μm. Filter life indicator.
|
|
Front Window
|
Motorized. Toughened glass . Anti UV.
|
|
Noise
|
≤ 58 dB / ≤ 61dB
|
|
UV Lamp
|
30W*1
|
|
|
UV timer, UV life indicator, emission of 253.7 nanometers
for most efficient decontamination |
|
LEDLamp
|
8W*2
|
|
Illumination
|
≥1000Lux
|
|
Consumption
|
500W
|
|
Sockets
|
Two, total load of two sockets: 500W
|
|
Display
|
LCD display
|
|
Control System
|
Microprocessor
|
|
Airflow System
|
70% air recirculation,30% air exhaust
|
|
Visual and AudioAlarm
|
Filter replacement, window over height, abnormal air flow velocity
|
|
Material
|
Work Zone: 304 stainless steel.
|
|
|
Main Body: Cold-rolled steel with anti-bacteria powder coating
|
|
Work Surface Height
|
750mm with optional base stand
|
|
Power Supply
|
AC220V±10%, 50/60Hz; 110V±10%, 60Hz
|
|
Standard Accessory
|
LEDlamp, UV lamp*2,Remote control, Waterproof sockets*2
|
|
Optional Accessory
|
Base stand, Universal caster with brake and leveling feet, SS Water tap*1, Gas tap*1
|
|
Gross Weight without Base Stand
|
Wooden Box:164kg Carton:121kg
|
|
Gross Weight with Base Stand
|
Wooden Box:196kg
|
|
Package Size without
Base Stand(W*D*H) |
Wooden Box: 860*800* 1450 mm Carton:820*760*1430mm
|
|
Package Size with
Base Stand(W*D*H) |
Wooden Box: 860*960* 1450 mm
|
