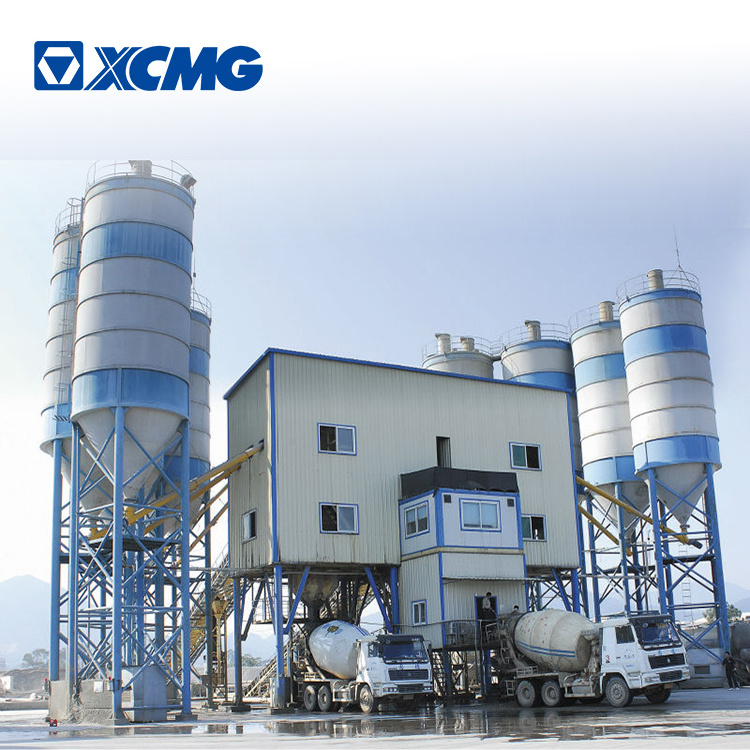

HZS90KE concrete mixing plant is a new kind of concrete mixing equipment researched and developed independently by our company on the basis of absorbing the advantages of foreign and domestic mixing plants of the same type.
HZS90KE cement concrete mixing plant has the features of little area occupied, simple base, deliver fast easy to relocate and low energy consumption.
The components of HZS90KE concrete mixing plant are:
1. Storage, weighing and conveying system of aggregate;
2. Storage, weighing and conveying system of powder;
3. Water supply, weighing and discharging system;
4. Additive storage, supply and weighing system;
5. Mixing and dust-collecting system;
6. The main tower structure;
7. The pneumatic system;
8. The electric control system.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
XCMG
-
Power:
-
2*30KW
-
Weight:
-
75000 kg
-
After-sales Service Provided:
-
Overseas service center available
-
Mixing power:
-
2*30KW
-
Nominal volume of main mixing machine:
-
1500 L
-
Production cycle:
-
72S
-
Dump height:
-
4m
-
Certification:
-
CE/ISO9001
-
Volume of powder silo:
-
2*100T
Quick Details
-
Machine Type:
-
Batching machine
-
Place of Origin:
-
Jiangsu, China
-
Year:
-
2016
-
Brand Name:
-
XCMG
-
Power:
-
2*30KW
-
Weight:
-
75000 kg
-
After-sales Service Provided:
-
Overseas service center available
-
Mixing power:
-
2*30KW
-
Nominal volume of main mixing machine:
-
1500 L
-
Production cycle:
-
72S
-
Dump height:
-
4m
-
Certification:
-
CE/ISO9001
-
Volume of powder silo:
-
2*100T
Products Description
XCMG Used Concrete Mixing Plant HZS90 90m3 Ready Mixed Concrete Batching Plant Price
Specification
|
Items
|
Unit
|
HZS90KE
|
|
Theoretical productivity
|
m3/h
|
90
|
|
Dump height
|
m
|
4
|
|
Model of main mixing machine
|
|
JS1500
|
|
Mixing power
|
kW
|
2×30
|
|
Nominal volume of main mixing machine
|
L
|
1500
|
|
Production cycle
|
s
|
60
|
|
Aggregate diameter
|
mm
|
≤60
|
|
Aggregate bin volume
|
m3
|
3×10
|
|
Powder bin capacity
|
t
|
2×100
|
|
Batching capacity of batching station
|
t/Silo
|
2400
|
|
Lifting bucket conveying capacity
|
t/h
|
150
|
|
Productivity of cement screw conveyor
|
t/h
|
90
|
|
Standard installed capacity
|
kW
|
138
|
|
Weighing range & accuracy of sand/stone
|
kg
|
(500~4000)±2%
|
|
Weighing range & accuracy of cement
|
kg
|
(200~800)±1%
|
|
Measurement range and accuracy of fly ash
|
kg
|
/
|
|
Weighing range & accuracy of water
|
kg
|
(100~400)±1%
|
|
Weighing range & accuracy of additives
|
kg
|
(10~30)±1%
|
