Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KAHO
-
Model Number:
-
kh-1036
-
Product name:
-
Glass Shower Door Self Tinting Electric Glass Foil Self Adhesive Foil
-
Keywords:
-
Smart film,pdlc film,smart glass film,switchable glass film,
-
Color:
-
White,Gery,Yellow,Blue,Green,Red
-
Sample size:
-
200*300mm
-
Width:
-
<1500-1800mm
-
Length:
-
Customized
-
Thickness:
-
0.4mm
-
Work temperature:
-
-20'C-60'C
-
Control methods:
-
Manual switch, voice control, remote control, remote control,etc
-
Application:
-
Separation, doors, windows, ceiling, etc.
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
Others
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KAHO
-
Model Number:
-
kh-1036
-
Product name:
-
Glass Shower Door Self Tinting Electric Glass Foil Self Adhesive Foil
-
Keywords:
-
Smart film,pdlc film,smart glass film,switchable glass film,
-
Color:
-
White,Gery,Yellow,Blue,Green,Red
-
Sample size:
-
200*300mm
-
Width:
-
<1500-1800mm
-
Length:
-
Customized
-
Thickness:
-
0.4mm
-
Work temperature:
-
-20'C-60'C
-
Control methods:
-
Manual switch, voice control, remote control, remote control,etc
-
Application:
-
Separation, doors, windows, ceiling, etc.
Glass Shower Door Decorative Film Self Tinting Electric Glass Foil Self Adhesive Foil

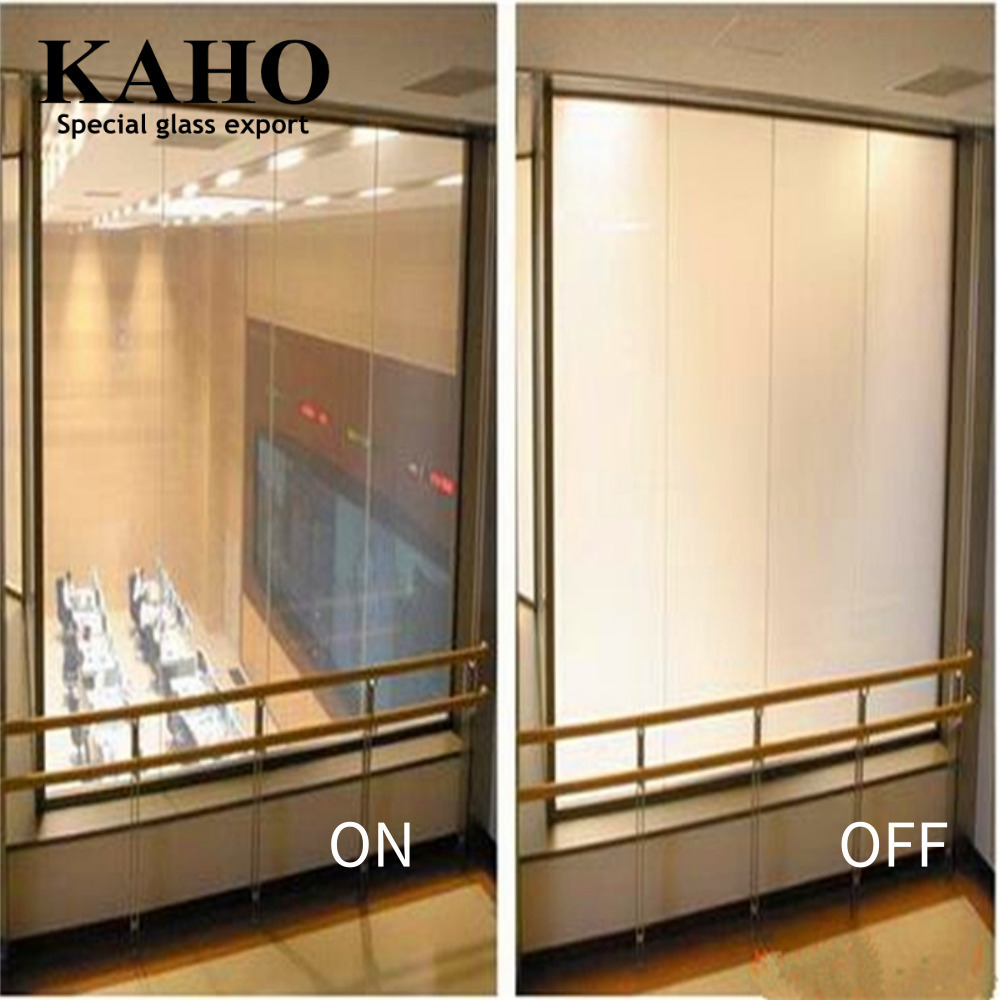

When the power is off ,the liquid crystal molecules are randomly oriented that scatters incident light and the glass becomes translucent.
When electricity is applied , the liquid crystal molecules line up,the incident light passes through,and the glass looks clear.
Product Wiring Instruction
1. Use a 2 pin 220V plug from the socket, and then connect its N and L cables to transformer terminal-Power outlet(Input AC 220V), and us e screw to fix it.
2. Use to connect the transformer terminal (output AC 60V) to smart glass electric wire and use screw to fix it.
3. Use remote control to power on the smart glass (normally just leave it aside)
|
Optical Propertoes |
Visible Light Transmission |
ON |
>83% |
|
OFF |
<5% |
||
|
Haze |
ON |
<6% |
|
|
OFF |
>90% |
||
|
Parallel light transmittance |
ON |
>75% |
|
|
OFF |
<2% |
||
|
UV Blocking |
ON/OFF |
>99% |
|
|
Infrared Blocking |
ON/OFF |
>60% |
|
|
Haze |
ON |
5% |
|
|
Electrical Properties |
Operating Voltage |
ON |
45V/65V |
|
Frequencies |
ON |
50 to 60Hz |
|
|
Current |
2mA/m² |
2mA/m² |
|
|
Response Time |
ON-OFF |
20ms |
|
|
OFF-ON |
200ms |
||
|
Power Consumption |
ON |
5w/m²/hr |
|
|
Specification |
Durable Temperature |
-20°C to 60°C |
|
|
Life Time |
>50000hours |
||
|
Visual Angle |
140° |
||
|
Color |
White,Gery,Yellow,Blue,Red,Green |
||
|
Size |
Thickness |
0.4mm |
|
|
Length and width |
Customization to Customer Requirements |
||
|
Sample size |
200mm*300mm or others |
||
|
Control mode |
Manual switch, voice control, remote control, remote control, can be combined according to customer needs |
||
Click here to ask more details
>> Advantages
>> Main Applications:
· Bathrooms/Shower enclosures
· Conference rooms
· Clinics Hospital(nurseries,ICUs,emergency,operation rooms)
· Hurricane resistant windows
· Optical shutters
· Projection displays(REAR PROJECTION ONLY)
· Residential enclosures
· Security windows
· Skylights
· Energy efficient enclosures
|
[Packing Details] A: Paper corn inside B: Bubble paper as smart film protection C: Foams fix the two ends D: Carton E: Plywood case as the clients requirements International standard, minimum cost |
|
|
[Delivery Detail] 3 days after receiving the payment |
QAre you factory?
AYes, since 2009, KAHO is a factory specialized in a variety of glass products for architectural, decorative and residential uses, the main products are TV mirror,one way mirror,bulletproof glass,smart glass, insulating glass, and other customized designed glass.
QHow can I get your glass quotation?
APlease tell me the thickness, size, color, quantities, whether need to further process and other detailed requirements etc.
QCan you do the production as customized?
AYes, we could produce the glass according to your requirements.
QCan the corresponding glass accessories be provided?
AYes, we can provide suitable accessories according to your needs, such as stainless steel, aluminum and so on.
QHow do you make our goods arrived safely?
A 1. Interlay powder or paper between two sheets.
2. Seaworthy wooden crates.
3. Iron or Plastic belt for consolidation.
QWhat is the transportation?
ASmall suggest to send by Courier, If large amount,by shipping. You can also use air freight.
QDo you provide sample? Is it free or extra ?
A Yes, we can provide the samples . All the sample cost will be returned after you have placed the appropriate order.
QWhat certification do you have?
A We have advanced production line, excellent production technology, rich experience in production management and strict ISO9001 quality management system, which ensures the quality of glass products to meet the international standards of CE certification and UL certification.
Remarks: We will provide the information as correct as possible. Product photos on this website may vary from the real products. Products information may vary from the product's manual available in the market. Please use the products subjected to the specific information on the user manual. For details, please contact the related persons.
