Quick Details
-
Power:
-
70mW
-
Wavelength:
-
405nm
-
Application:
-
Printing
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Type:
-
Laser Diode
-
Package Type:
-
Fiber Coupled
-
Power:
-
70mW
-
Wavelength:
-
405nm
-
Application:
-
Printing

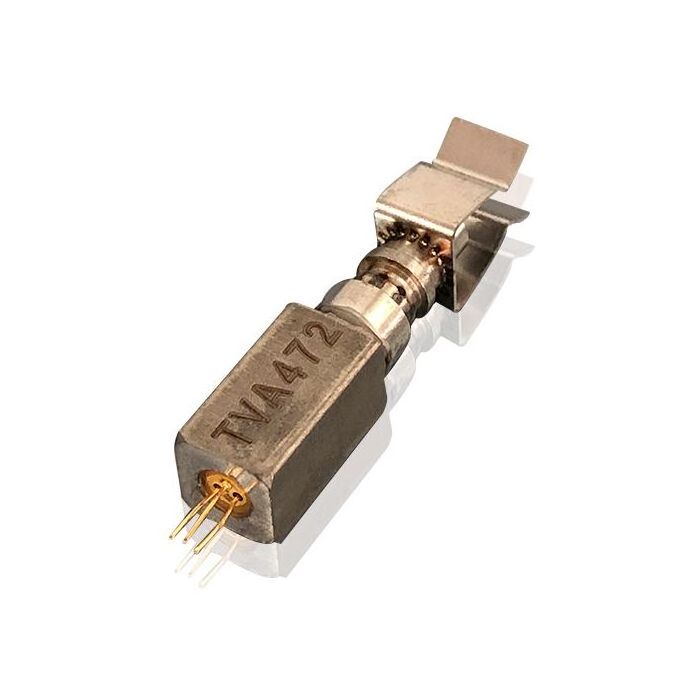

70mW 405nm Fiber Coupled Laser Diode
Special design for printing application
Data sheet:
Item No.: FC405DL70
Item Name: 70mW 405nm Fiber Coupled Diode Laser
| Optical |
|
| Center Wave length | 405±5nm |
| Output Power | 70mW |
| Working Mode | CW |
| Spectral Width FWHM | 2nm |
| Slope Efficiency | 1.2W/A |
| Fiber |
|
| Fiber Core | 40um |
| Fiber Numerical Aperture | 0.22NA |
|
Fiber Connector
|
SC |
| Electrical |
|
| Operating Current Iop | 120mA |
| Threshold Current Ith | 35mA |
| Operating Voltage Vop | 5V |
| Reverse Voltage Vop |
2V
|
| Thermal |
|
| Operating Temperature | 15~35℃ |
| Storage Temperature | -30-70℃ |
| Wavelength Temp. Coefficient | 0.2nm/℃ |
Hangzhou Brandnew Technology Co., Ltd.
Founded in 2011, BrandNew, the laser diode company, manufactures high-power diode lasers and systems in a wide range of output powers and wavelengths including fiber-coupled, stack bar lasers and plug and play lasers.
Cooperated with Institute of semiconductors Chinese academy of sciences and Zhejiang University, Today, over 60 technicians and 2 scientists, 20 technicians are with PHD degree. Production space is 10000 Class Lab Clean Room with 2000 square meters. Turnover per year is more than 10M US dollars.
BrandNew's strengths are in talent employees, quality engineering,Process control, product development and volume manufacturing.
Core Competency
◆ Diode Packaging ◆ Beam Shaping
◆ Reliability Testing ◆ Efficient Cooling
