Quick Details
-
Place of Origin:
-
China
-
Product Name:
-
Ac Dc Adaptor
-
Certificate:
-
CE
-
Output voltage:
-
12VDC
-
Application:
-
LED Light. Electrical Appliances
-
AC plug:
-
EU AU UK EK
-
Warranty:
-
2 Years
-
Efficiency:
-
DOE VI/CEC/NRcan/COC/ERP2
-
Input voltage:
-
AC100~240V 50/60Hz
-
DC Cable:
-
1.2m 1.5m 1.8m 2m
Quick Details
-
Type:
-
Electric, CAR CHARGER, Fast Charger
-
Port:
-
DC, AC
-
Brand Name:
-
LA-FAST
-
Place of Origin:
-
China
-
Product Name:
-
Ac Dc Adaptor
-
Certificate:
-
CE
-
Output voltage:
-
12VDC
-
Application:
-
LED Light. Electrical Appliances
-
AC plug:
-
EU AU UK EK
-
Warranty:
-
2 Years
-
Efficiency:
-
DOE VI/CEC/NRcan/COC/ERP2
-
Input voltage:
-
AC100~240V 50/60Hz
-
DC Cable:
-
1.2m 1.5m 1.8m 2m

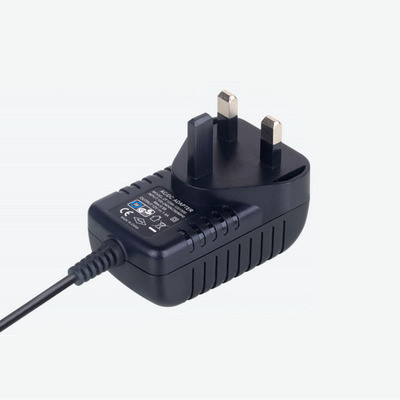

12V/24V ac to dc 5 Amp Adapter12volt power Supply Of 12 Volt Source Supplier 50hz 12v 5a Laptop Power Adapter 220v Dc12v
1.OEM Free sample Available ( CE KC BIS SAA PSE CCC CQC EMC LVD TUV CB)
2. Input voltage: ac ac100-240v 50/60hz
3. Output voltage: DC12V
4. Output current: maximum 1A 1.5A 2A 2.5A 3A 4A 5A 10A
5. Voltage accuracy: ±5% (no load)
6. Power polarity: positive inside and negative outside (special polarity can be ordered as required)
7. DC connector size:5.5*2.5*10mm /5.5*2.1*10mm (customized welcome)
8. DC Cable Length: 1.5m default,1.2M 1.8M 2M 2.5M 3M 5M is available
9. AC Plug: US UK EU AU Korean India South Africa Brazil CN Plug
10. Product packaging: white box or transparent tape packaging
Product features:
1. EMC circuit effectively eliminates the interference to peripheral equipment and has its own anti-interference performance and high reliability.
2. Dc ripple small, high efficiency.
3. Low operating temperature and long service life.
4. Wide range of input voltage, in line with global standards.
5. Good insulation and high electrical strength.
6. With short circuit, overcurrent, overload, overvoltage protection function
| Input | Rated Input Voltage | AC 100~240V |
| Variable Input Voltage | AC 90~264V | |
| Rated Frequency | 50-60Hz | |
| Variable Fequence | 47-63Hz | |
| Output | Output voltage | 12V |
| Output current | 1A | |
| Output power | 12W | |
| Input plug types | EU/ US /UK /AUS /IND Plugs | |
| Out plug types | DC Jacks | |
| DC jack size | 5.5*2.1mm, 5.5*2.5mm, 3.5*1.35mm, 4.0*1.7mm, 2.5*0.7mm .Micro USB,etc. | |
| Safety protection | Over voltage protection | auto recovery |
| Over current protection | auto recovery | |
| Short circuit protection | auto recovery | |
| Over hot protection | auto recovery | |
| Electronic characteristics | Operating Temperature | 0°C~40°C |
| Storage Temperature | -10°C~ +55°C | |
| Humidity | 5%~90%RH | |
| Efficiency | 80% | |
| Ripple And Noisev | Output voltage 1%, Ripple&Noise≤120mv | |
| Turn-on Delay Time | 3 second max | |
| Overshoot at Turn-on | 15% max when turn on or off | |
| In-rush Current(Typ.) | Cold start 60A 250VAC | |
| AC leakage Current | 0.25mA max at AC 240V voltage | |
| Load Regulation | ±5% | |
| Line Regulation | ±5% | |
| High-Voltage test | Primary to secondary: 3 kV / 5mA | |
| Drop Test | 1m drop test | |
| Burn-In Test | 25°C, 4hours | |
| Application | STB(set top box),Router,Modem, CCTV,LED stripe, table lamp, Speaker, HDMI Switch, attendance machine, hair clipper, mini bread machine, mini humidifier, coffer machine, Air cleaner, CD/DVD,DVR, NVR, MP3/MP4,Digital camera,Comunication Terminals Etc | |
| Safe Certificate | CE ROHS FCC CB BS SAA C-tick PSE KC | |
1. Quick delivery: A large qty of laptop adapter stock .
2. Quality Assurance :All laptop adapter have been 100% tested before shipment. Serious aging test for a few hours before packing to make sure reliable quality
3. Wide range of models: all well-known laptop brands and models for you to choose.
4. Very competitive prices : Our own factory production, wholesale price to help you win the market
5. High qulity: Short circuit/Over voltage/Over current, High working effciency,full power
6. Laptop adapter Warranty: 12 months within the warranty period, free replacement or refund.
7. Professional packaging for laptop adapter :cardboard boxes, PE bags, brown box, PE bags to avoid any damage to the laptop Adapter.
8. Professional service team: provide you with satisfactory service.
