> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
19.09%
-
Brand Name:
-
BLUESUN
-
Model Number:
-
BSM190M-36
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1480*673*35mm
-
Solar panel:
-

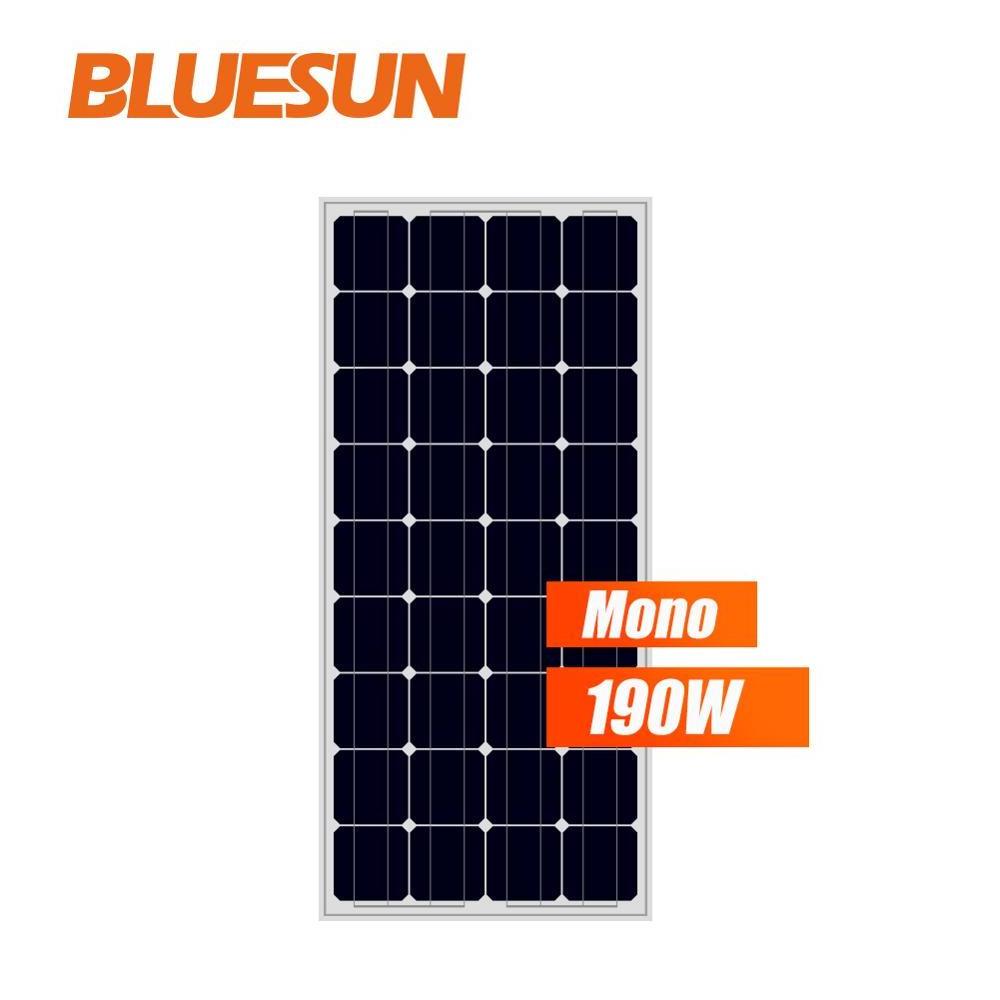

Monocrystalline 190w Solar Panel
-
OEM Order:
-
Acceptable
-
Frame:
-
Anodized Aluminium Alloy
-
Connector:
-
PV connector
-
Front cover:
-
3.2mm High Transmission low Iron Tempered Glass
-
Frame color:
-
Silvery ,Black
-
Application:
-
Solar Home System
-
Material:
-
Monocrystalline Silicon
-
Certificate:
-
CE/TUV
Quick Details
-
Cell size:
-
156.75mmx156.75mm
-
Type:
-
PERC
-
Panel Efficiency:
-
19.09
-
Warranty:
-
19.09%
-
Brand Name:
-
BLUESUN
-
Model Number:
-
BSM190M-36
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1480*673*35mm
-
Solar panel:
-
Monocrystalline 190w Solar Panel
-
OEM Order:
-
Acceptable
-
Frame:
-
Anodized Aluminium Alloy
-
Connector:
-
PV connector
-
Front cover:
-
3.2mm High Transmission low Iron Tempered Glass
-
Frame color:
-
Silvery ,Black
-
Application:
-
Solar Home System
-
Material:
-
Monocrystalline Silicon
-
Certificate:
-
CE/TUV
Product Description
|
Moduel
|
BSM170M-36
|
BSM175M-36
|
BSM180M-36
|
BSM185M-36
|
BSM190M-36
|
||||
|
Rated Maximum Power at STC
|
170
|
175
|
180
|
185
|
190
|
||||
|
Open Circuit Voltage(Voc/V)
|
22.8
|
22.9
|
23.0
|
23.1
|
23.2
|
||||
|
Maximum Power Voltage(Vmp/V)
|
17.9
|
18.0
|
18.1
|
18.2
|
18.3
|
||||
|
Short Circuit Current(Isc/A)
|
9.74
|
9.98
|
10.23
|
10.46
|
10.70
|
||||
|
Maximum Power Current(Imp/A)
|
9.50
|
9.72
|
9.94
|
10.16
|
10.38
|
||||
|
Module Efficiency(%)
|
17.08
|
17.58
|
18.09
|
18.59
|
19.09
|
||||
|
Power Tolerance
|
-0~+3%
|
|
|
|
|
||||
|
Standard Test Condition(STC)
|
Irradiance 1000W/m
2
,Cell Temperature 25℃,Air Mass1.5
|
|
|
|
|
||||
Detailed &Production
Glass
Solar Cell
> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID
Frame
> Conventional frame
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip designglue injection
Packing & Delivery
|
By sea
|
Delivery from Shanghai or Ningbo seaport
|
|
|
||
|
By air
|
Departure from Shanghai Pudong Airport
|
|
|
||
|
By express
|
By TNT/DHL
|
|
|
||
Project
Our Company
Global Exhibitions
Payment
|
Payment Term
|
T/T
|
EXW
|
|
||
|
|
|
FOB
|
|
||
|
|
|
CFR(C&F)
|
|
||
|
|
|
CIF
|
|
||
|
|
L/C
|
L/C amount above 50,000 usd, we can accept L/C at sight
|
|
||
|
|
West Union
|
Amount lower than 5000usd
|
|
||
|
|
West Union
|
|
|
||
|
Delivery Time
|
7~10days after receiving payment for one container
|
|
|
||
We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount
