Item:
-
FTTH CATV Passive Mini Node Optical Receiver Built in WDM
-
CATV work Wavelength:
-
1550nm
-
Optical Connector:
-
SC/APC, SC/UPC
-
Output Level:
-
> 68 dBμV
-
Receiving Optical Power:
-
+2~-14dBm
-
Output impedance:
-
75
-
Work Bandwidth:
-
45~1050MHz
-
RF tire-in:
-
F- female
-
Optical return loss:
-
≥ 55dBm
-
work temp:
-
-20~+55
-
No. of Fiber:
-
1
-
Single-Mode Fiber:
-
Yes
-
Application:
-
HFC/FTTH
-
Multi-Mode Fiber:
-
No
Quick Details
-
Type:
-
Optical Receiver
-
Model Number:
-
SR100-WD
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SOFTEL
-
Use:
-
FTTX/XPON
-
Warranty Time:
-
1 Year
-
Item:
-
FTTH CATV Passive Mini Node Optical Receiver Built in WDM
-
CATV work Wavelength:
-
1550nm
-
Optical Connector:
-
SC/APC, SC/UPC
-
Output Level:
-
> 68 dBμV
-
Receiving Optical Power:
-
+2~-14dBm
-
Output impedance:
-
75
-
Work Bandwidth:
-
45~1050MHz
-
RF tire-in:
-
F- female
-
Optical return loss:
-
≥ 55dBm
-
work temp:
-
-20~+55
-
No. of Fiber:
-
1
-
Single-Mode Fiber:
-
Yes
-
Application:
-
HFC/FTTH
-
Multi-Mode Fiber:
-
No

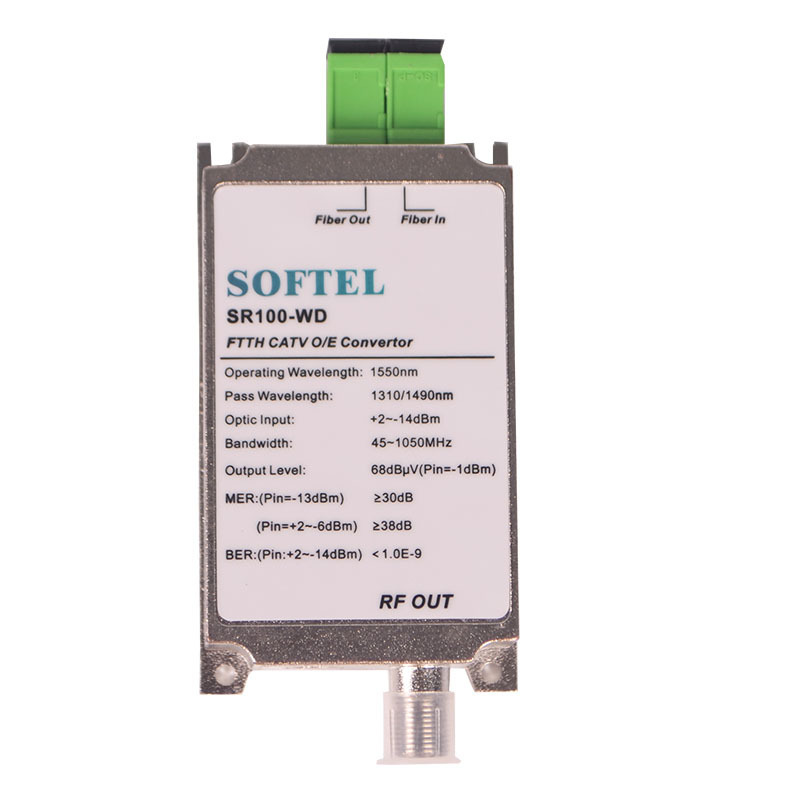

SR100-WD
1. PRODUCT DESCRIPTION
SR100 series CATV converter for digital television, fiber to the home. This machine adopts the high sensitivity optical receiving tube, without power supply, no power consumption. When the input optical power output level Pin=-1dBm, Vo=68dBuV, economic, flexible application integration, application of fiber to the home network. There are five kinds of model selection:
SR100, SR100F : CATV operating wavelength 1260~1620nm.
SR100-WD : Built-in CWDM, suitable for single-fiber triple wavelength system, CATV operating
Wavelength 1550nm, pass wavelength 1310/1490nm, can conveniently connect the
ONU of EPON, GPON.
SR100-WF, SR100F-WF : built-in 1310/1490nm filter, suitable for single-fiber triple wavelength system, CATV
operating wavelength 1550nm.
2. PRODUCT FEATURE
1.No Power required
2.Work bandwidth 45~1050MHz
3.Output Level=68dBμV (Pin=-1dBm)
3. MAIN APPLICATION
CATV FTTH
Integration of three networks
FTTH PON
4.TECHNICAL INDEX
| Optic feature | Unit | Index | Supplement | |
| Optical parameter | CATV work wavelength | nm | 1260~1620 | SR100,SR100F |
| 1540~1563 | SR100-WF,SR100F-WF,SR100-WD | |||
| Pass wavelength | nm | 1310~1490 | SR100-WD | |
| Channel Isolation | dB | ≥40 | 1550nm&1490nm | |
| Response | A/W | ≥0.85 | 1310nm | |
| ≥0.9 | 1550nm | |||
| Receiving Power | dBm | +2~-14 | ||
| Optical return loss | dB | ≥55 | ||
| Optical fiber connector | SC/APC | |||
| RF parameter | Work bandwidth | MHz | 45~1050 | |
| Output level |
dBμ V |
>68 | Digital TV (pin=-1dBm) | |
| Return loss |
dB |
≥14 | 47~862MHz | |
| Output impedance |
Ω |
75 | ||
| Output port number | 1 | |||
| RF tie-in | F-female | |||
| General feature | Work temp | ℃ | -20~+55 | |
| Storage temp | ℃ | -40~+85 | ||
| Work relative temp | ℃ | 5~95 |
5.PRODUCT SERIES
| Model | Input wavelength | CATV operating | Data pass | Output fiber | Input fiber |
| SR100,SR100F | 1310nm or 1550nm | 1260~1620nm | - | SC/APC | - |
| SR100-WF,SR100F-WF | 1310,1490/1550nm | 1540~1563nm | - | SC/APC | - |
| SR100-WD | 1310/1490nm | SC/APC | SC/UPC |
