Quick Details
-
Dimension(L*W*H):
-
1180*1030*1400mm
-
Weight:
-
200 KG
-
Product name:
-

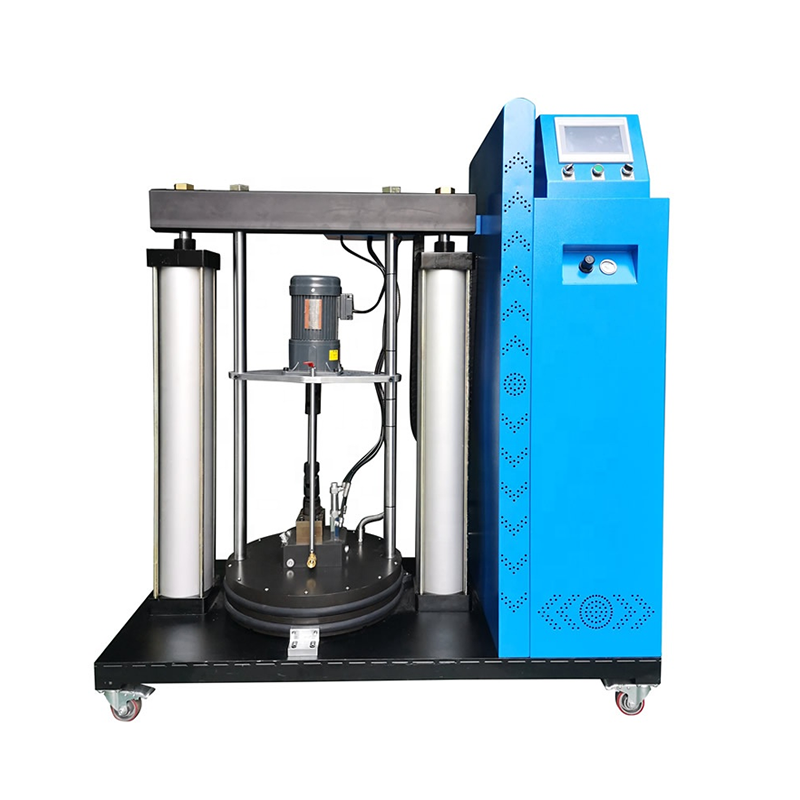

PUR55 hot melt glue machine
-
Pump Type:
-
gear pump
-
Maximum operating temperature:
-
200 ℃
-
Melt speed:
-
80KG/H
-
Sensor:
-
Support Ni120/K/PT100/NTC
-
Hose And Gun QTY:
-
1-4 sets
-
Dimension:
-
1180*1030*1400mm
-
Tank Capacity:
-
200L
-
Function:
-
Paper Cardboard Box Gluing Machine
-
Power supply:
-
23KW
Quick Details
-
Voltage:
-
AC220V/50HZ
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LIUJIANG
-
Dimension(L*W*H):
-
1180*1030*1400mm
-
Weight:
-
200 KG
-
Product name:
-
PUR55 hot melt glue machine
-
Pump Type:
-
gear pump
-
Maximum operating temperature:
-
200 ℃
-
Melt speed:
-
80KG/H
-
Sensor:
-
Support Ni120/K/PT100/NTC
-
Hose And Gun QTY:
-
1-4 sets
-
Dimension:
-
1180*1030*1400mm
-
Tank Capacity:
-
200L
-
Function:
-
Paper Cardboard Box Gluing Machine
-
Power supply:
-
23KW
|
hot melt gluing machine
|
|
|
|
|
||
|
Item/Model
|
LJ-HM10L
|
LH-HM5L
|
|
|
||
|
TANK CAPACITY
|
10KG
|
5KG
|
|
|
||
|
MAX. MELTING RATE
|
8 kg/hour
|
8 kg/hour
|
|
|
||
|
MAX. OPERATION TEMP.
|
≤250℃
|
≤250℃
|
|
|
||
|
SETS OF HOSE & GLUE GUN
|
1-4 sets
|
1-4 sets
|
|
|
||
|
MAX. VISCOSITY
|
500-20000 CPS
|
500-20000 CPS
|
|
|
||
|
AIR PRESSURE
|
4-6 kg/cm2
|
4-6 kg/cm2
|
|
|
||
|
POWER
|
4KW
|
2.8KW
|
|
|
||
|
UNIT WEIGHT
|
65kg
|
60KG
|
|
|
||
|
DIMENSION
|
760*455*380mm
|
610*335*390mm
|
|
|
||
|
Melt speed
|
15KG/H
|
10KG/H
|
|
|
||
|
Temperature accuracy
|
±1 ℃
|
±1 ℃
|
|
|
||
|
Dispensing controller
|
External
|
External
|
|
|
||
|
Power supply
|
220V/50HZ
|
220V/50HZ
|
|
|
||
|
Five-axis and three-axis two-in-one
|
Optional
|
Optional
|
|
|
||
|
Approvals
|
CE
|
CE
|
|
|
||
