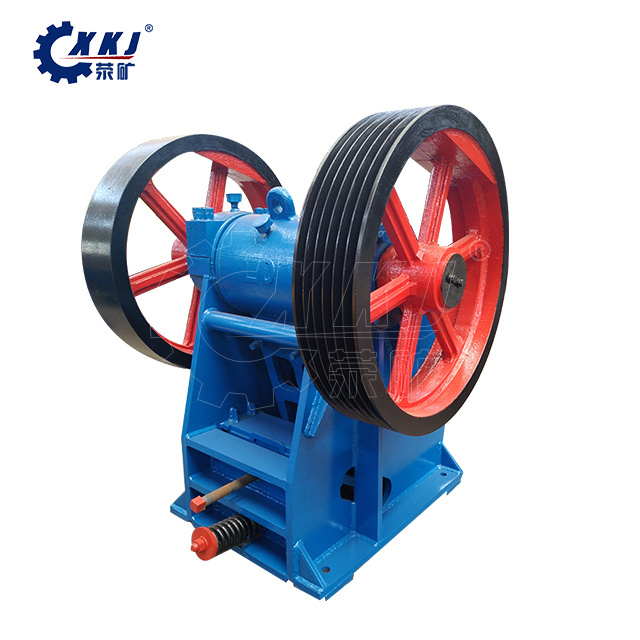

Direct Sale Stock Available Pe Series 250*400 Jaw Crusher Motor Crushing Plant Mining Equipment

Jaw Crushers are a compression-type machine that crush material between a moving piece of steel and a stationary piece of steel. They are used for primary and sometimes secondary size reduction.

A Jaw Crusher uses compressive force for breaking material. This mechanical pressure is achieved by the crusher's two jaws dies, one of which is stationary and the other is movable. These two vertical manganese jaw dies create a V-shaped cavity called the crushing chamber, where the top of the crushing chamber is larger than the bottom. Jaw Crushers are sized by the top opening of the crushing chamber.

The narrower bottom opening of the crushing chamber is used to size the discharge material. A toggle plate and tension rods hold the pitman tight near the bottom of the moving swing jaw. The toggle plate is designed to perform like a fuse and protect the crusher in the event that an uncrushable material enters the crushing chamber. As a rule, Jaw Crushers have a 6:1 or 8:1 ratio for crushing material.

Since the crushing of the material is not performed in one stroke of the eccentric shaft, massive weighted flywheels are attached to the eccentric shaft and powered by a motor. The flywheels transfer the inertia required to crush the material until it passes the discharge opening.
