Quick Details
-
Weight:
-
3150+-15g(M size), 3150+-15g(M size)
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
TOP FIRE
-
Model Number:
-
FM-MD17
-
Name::
-
CARBON EBIKE FRAME
-
SIZE:
-
15/17/19/21
-
painting:
-
OEM painting&decal
-
use for:
-
27.5plus and 29er Suspension E-Bike
-
Tire size:
-
650B*2.8" and 29er 2.35"
-
frame travel:
-
150mm
-
battery:
-
BAFANG BTF03 or BTF04
-
Rear shock:
-
185*55 trunnion mount
-
Warranty:
-
2 Years
Quick Details
-
Size:
-
15/17/19/21
-
Use:
-
Mountain Bikes
-
Type:
-
Carbon fiber frame
-
Weight:
-
3150+-15g(M size), 3150+-15g(M size)
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
TOP FIRE
-
Model Number:
-
FM-MD17
-
Name::
-
CARBON EBIKE FRAME
-
SIZE:
-
15/17/19/21
-
painting:
-
OEM painting&decal
-
use for:
-
27.5plus and 29er Suspension E-Bike
-
Tire size:
-
650B*2.8" and 29er 2.35"
-
frame travel:
-
150mm
-
battery:
-
BAFANG BTF03 or BTF04
-
Rear shock:
-
185*55 trunnion mount
-
Warranty:
-
2 Years
Products Description
|
Frame
|
New LightCarbon Enduro Full Suspension Ebike frameset designing for Bafang motor
|
|
Material
|
High modulus Toray T700 carbon fiber
|
|
Size
|
Medium/Large
|
|
Headtube
|
Tapered 1 1/8 "- 1 1/2"head tube, upper 44mm lower 56mm (Headset standard FSA No.57E)
|
|
Weight
|
3150±45g/Medium
|
|
Seatpost Diameter
|
31.6mm(34.9mm seat clamp)
|
|
Motor System
|
Bafang M500(95NM) or M600(120NM) mid drive engine
|
|
Battery
|
Bafang BTF03(450Wh) or BTF04(600Wh)
|
|
Max Tire Clearance
|
650b*2.8" and 29er*2.35"
|
|
Front travel
|
150mm
|
|
Rear travel
|
150mm
|
|
Rear shock size
|
185*55mm(trunnion mount)
|
|
Brake Type
|
Post Mount Disc brake 180mm disc rotor
|
|
Dropout
|
Thru Axle 12*148mm boost
|
|
Max Chainring
|
34T
|
|
Test Standard
|
ISO4210
|
|
Warranty
|
2 years
|

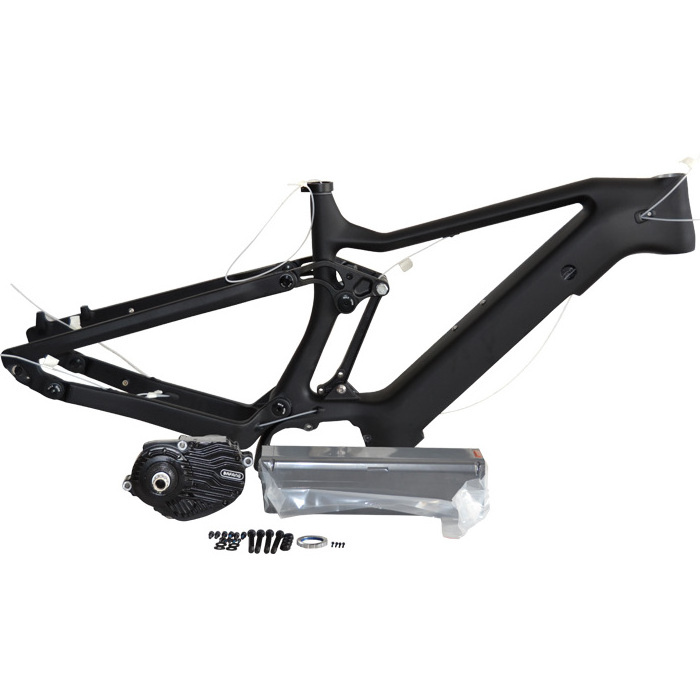

Details Images
Price is not including motor and battery
.
if you want frame with motor and battery,
MOQ 5sets.
we purchase from BAFANG directly.
