Quick Details
-
Cutting Length:
-
1~9999mm
-
Stripping Length:
-
Head 0 - 50mm, Tail 0 - 50mm
-
Speed:
-
2000~5000pcs/hour
-
Blade Material:
-
Hard tungsten steel
-
Dimension:
-
420*390*280mm
-
Weight:
-
35KG
-
Power Supply:
-
220V/50Hz 110V/60Hz
-
Power:
-
220W
-
Drive mode:
-
Four-wheel drive
Quick Details
-
Usage:
-
Cutting
-
Place of Origin:
-
China
-
Type:
-
Automatic Wire Stripping Machine for thick wire
-
Cutting Length:
-
1~9999mm
-
Stripping Length:
-
Head 0 - 50mm, Tail 0 - 50mm
-
Speed:
-
2000~5000pcs/hour
-
Blade Material:
-
Hard tungsten steel
-
Dimension:
-
420*390*280mm
-
Weight:
-
35KG
-
Power Supply:
-
220V/50Hz 110V/60Hz
-
Power:
-
220W
-
Drive mode:
-
Four-wheel drive

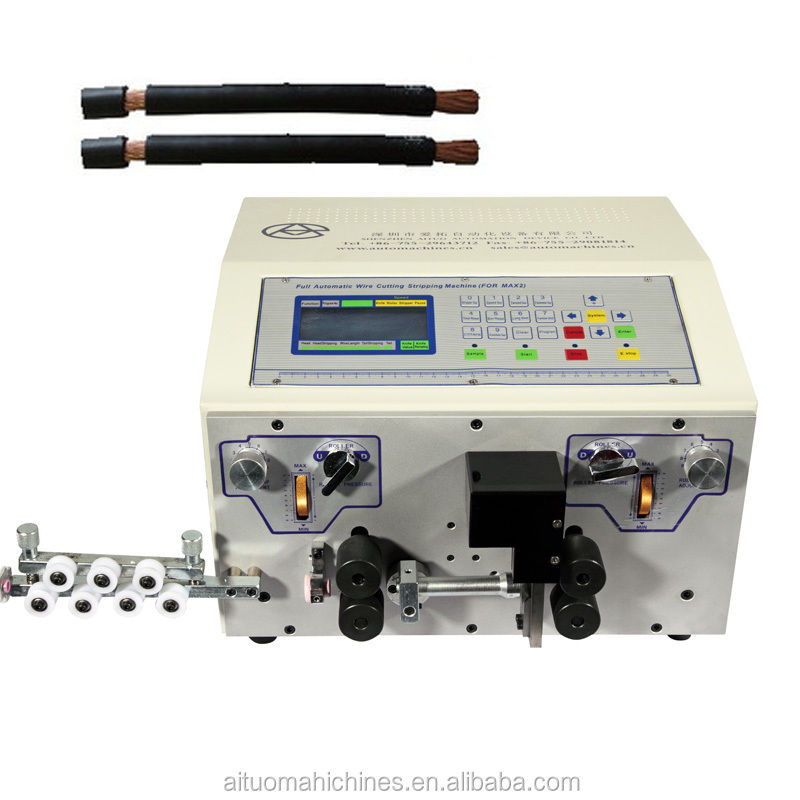

Automatic Wire Stripping Machine for thick wire,Thick Wire Stripper Machine
1
, Industrial touch screen, easy to operate, high stability;
2, The wheel and the wire contact area is larger, send line stability, the length of accurate;
3, the control system is highly integrated, greatly reducing the system failure rate!
4, with a large capacity memory, you can save 99 groups of parameters, easy to operate;
5, before and after the wheel wheel distance between the use of motor control, just enter the wire diameter can be easy to operate;
6, the upper and lower roller synchronous adjustment, the blade center point is always the same, processing large lines or small lines do not have to adjust the blade;
All machines are driven by the motor, do not need compressed air, versatility.
.
Specifications:
| Model | AM603-16 (Fit to thick wire) |
| Available Wire Size | 0.1 - 16 mm² (AWG5- AWG30) |
| Conduit Diameter | Φ13mm |
| Cutting Length | 1 - 9999mm |
| Stripping Length | Head 0 - 50mm, Tail 0 - 50mm |
| Memory Function | Can store Max. 99 group programs |
| Max. Middle Stripping Section | 13 |
| Cutting Tolerance | ±(0.002×L) (L = Cutting Length) |
| Speed | 2000 - 5000pcs/hour |
| Display | LCD display with english menu |
| Drive Mode | four wheels drive |
| Blade Material | Hard tungsten steel |
| Appropriate Wire | Suit wires, such as PVC, glass wires etc. |
| Power Supply | 220V/50Hz 110V/60Hz |
| Power Rating | 220W |
