Quick Details
-
Model Number:
-
DF555
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
Dingtek
-
Theory:
-
ULTRASONIC
-
Principle:
-
Ultrasonic
-
Detection Range:
-
20 ~500 cm
-
Blind area:
-
0 ~ 20 cm
-
Accuracy:
-
3cm
-
Protection Level:
-
IP68
-
Inner battery:
-
ER26500 8500mAh 3.6V DC, non-recharged
-
Wireless:
-
NB-IoT / Sigfox / LoRaWAN / GPRS
-
Warranty:
-
1 Year
-
Certificate:
-
CE
-
MOQ:
-
1 Piece
Quick Details
-
Usage:
-
LEVEL MEASUREMENT
-
Mounting Type:
-
TOP INSTALLATION
-
Description:
-
ULTRASONIC LEVEL SENSOR, ULTRASONIC LEVEL SENSOR
-
Model Number:
-
DF555
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
Dingtek
-
Theory:
-
ULTRASONIC
-
Principle:
-
Ultrasonic
-
Detection Range:
-
20 ~500 cm
-
Blind area:
-
0 ~ 20 cm
-
Accuracy:
-
3cm
-
Protection Level:
-
IP68
-
Inner battery:
-
ER26500 8500mAh 3.6V DC, non-recharged
-
Wireless:
-
NB-IoT / Sigfox / LoRaWAN / GPRS
-
Warranty:
-
1 Year
-
Certificate:
-
CE
-
MOQ:
-
1 Piece
Overview

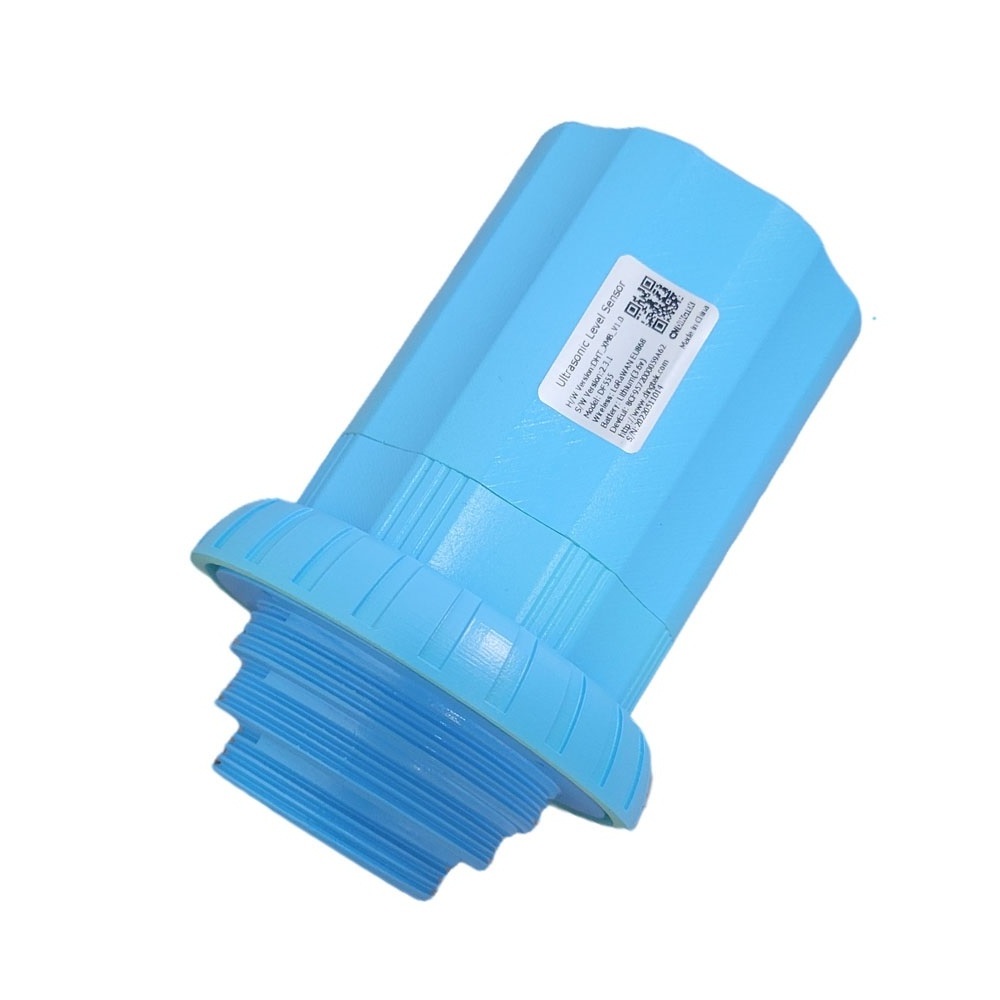

➽ DF555 is ultrasonic level (distance )sensors which can measure the air height directly and calculate the liquid or solid height based on the total height of the container (distance).
➽
It is applicable for the close container or open container, or even the river. Furthermore it can calculate the volume of the container or the liquid.
➽ NB-IoT/LoraWAN/Sigfox/GPRS wireless Technology
➽ GPS: Optional
➽ Power: Internal battery/external power supply, optional
➽ Antenna: Internal antenna/external power supply, optional
Features
- Non contact measurement, 5m measuring range
- Top installation, need drill holes.
- NB-IoT/LoraWAN/Sigfox/GPRS wireless Technology
- Low power consumption
- Accurate measurement
- Easy installation & Integration
- 24h real-time monitoring
Product Paramenters
|
Overview
|
Dimension
|
190mm(H)*72mm(W)*72mm(L)
|
|
|
Color
|
Black
|
|
|
Principle
|
Ultrasonic
|
|
|
Detection Range
|
5 meters
|
|
|
Blind area
|
0-20cm
|
|
|
Accuracy
|
3cm
|
|
|
Resolution
|
1mm or 0.1%FS, the bigger one
|
|
|
Driving Frequency
|
40khz
|
|
Power
|
inner battery
|
ER26500, 8500mah
|
|
Environment
|
Operating Temperature
|
-20 ~ +70℃
|
|
|
Storage Temperature
|
-40 ~ +85℃
|
|
|
Protection Level
|
IP68
|
|
Media
|
liquid
|
Diesel,gasoline, water, LPG, Ethanol, and other liquids
|
|
Mounting
|
Top flange fixing
|
The sensor is attached to the top of the tank by a flange.
|
