Automatic Case Packer Case Erector Fold Open Carton Box Adhesive Tape Sealing Packing Machine

Automatic Case Packer Case Erector Fold Open Carton Box Adhesive Tape Sealing Packing Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $4600

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Production Capacity:: 10-30 Boxes/min

Weight (KG):: 620

Voltage:: 220V

Place of Origin:: Shanghai, China

Brand Name:: YB

Dimension(L*W*H):: 2000x1900x1400mm

Product name:: Automatic case carton erector

Carton length:: 280-500mm

Carton width:: 150-400mm

Carton heighg:: 150-400mm

Tape width:: Maximum 60mm

Operate panel:: Touch screen

Material of machine:: SS304

Capacity:: 5-25 boxes/min

Language:: English

Quick Details

Function:: FILLING, Sealing, Embossing, counting

Packaging Type:: Bags, Film, Automatic box erector and sealing machine

Packaging Material:: Wood, Automatic box erector and sealing machine

Production Capacity:: 10-30 Boxes/min

Weight (KG):: 620

Voltage:: 220V

Place of Origin:: Shanghai, China

Brand Name:: YB

Dimension(L*W*H):: 2000x1900x1400mm

Product name:: Automatic case carton erector

Carton length:: 280-500mm

Carton width:: 150-400mm

Carton heighg:: 150-400mm

Tape width:: Maximum 60mm

Operate panel:: Touch screen

Material of machine:: SS304

Capacity:: 5-25 boxes/min

Language:: English

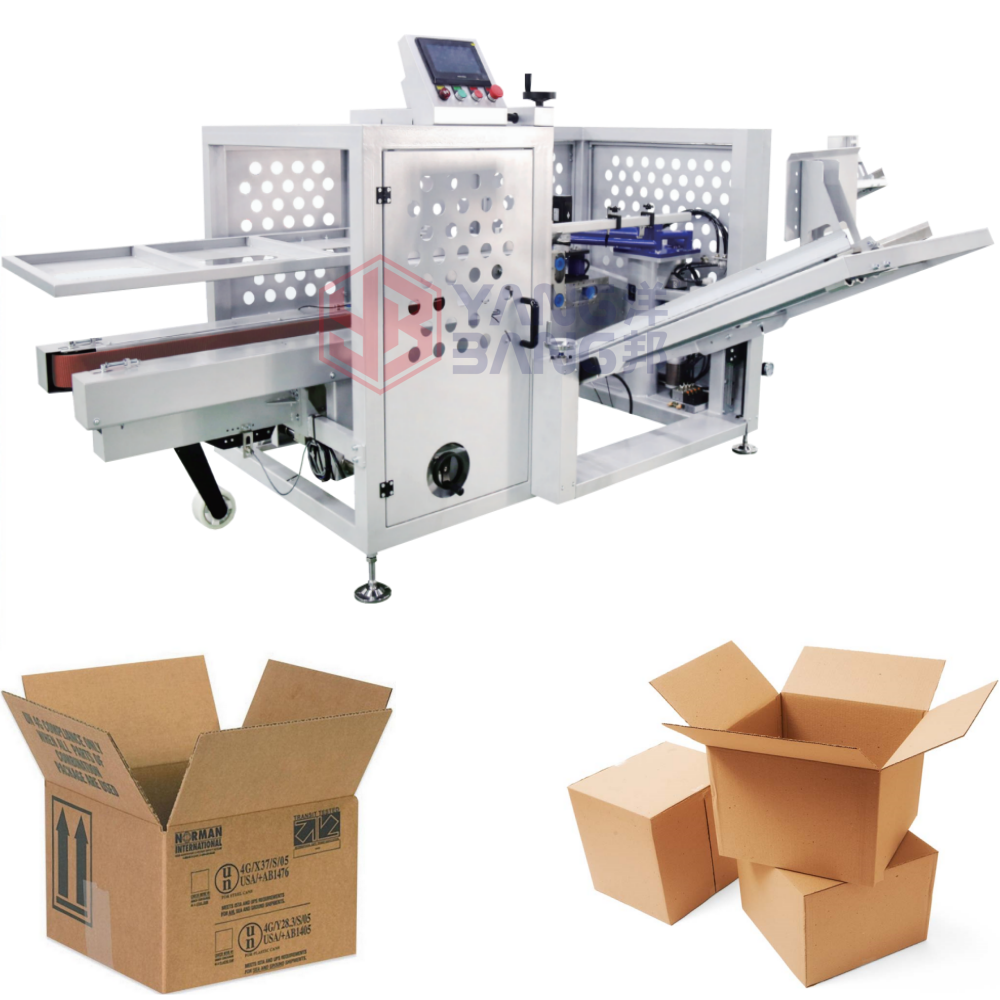

YangBang YB-DK500 Automatic Case Packer Case Erector Fold Open Carton Box Adhesive Tape Sealing Packing Machine

PRODUCT SPECIFICATIONS

No	Model	YB-DK500
1	Packing speed	5-20 cartons/min
2	Carton length	280-500mm
3	Carton width	150-400mm
4	Carton height	150-400mm
5	Working air pressure	0.6-0.8Mpa
6	Voltage	1 Phase. 220V
7	Power	1.0KW
8	Machine weight	350kg
9	Machine dimension	L2000mm, W1900mm, H1400mm

Product details

Machine feature and function:

1.This machine has a simple structure, convenient operation, easy maintenance, and is widely used in various industries. 2.The box adopts two servo motors to drive the belts on both sides, which can better ensure the synchronous operation of the belts on both sides and ensure that the cardboard box is square. 3.The two sides of the box adopt an open structure, which provides better visibility and more convenient operation for the operator. 4.The whole machine is highly automated when paired with a robotic arm, reducing manual labor. 5.Low noise, smooth operation, and does not damage the cardboard box. 6.The box storage adopts a tilted unpowered box storage design, which can replenish cardboard boxes at any time without stopping the machine. 7.It can achieve seamless docking with front-end and back-end devices. 8.The standard model is carbon steel spray painted (frosted silver), which can be customized according to customer needs.

Details Images
