Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
dingchen
-
Voltage:
-
220V/380V
-
Power:
-
5.5KW
-
Dimension(L*W*H):
-
2950*1320*1500mm
-
Weight:
-
3000 kg, 3000kg
-
Modle:
-
1575mm
-
Brand:
-
Zhengzhou Dingchen
-
Machine Type:
-
Kraft paper machine
-
Raw material:
-
Waste paper, waste carton, old carton box, wheat straw, rice straw
-
Output paper:
-
kraft paper, corrugated paper, kraftlinter, duplex paper, fluting
-
Max paper width:
-
1650mm
-
Capacity:
-
5-8tons/day
-
Color:
-
Optional
Quick Details
-
Production Capacity:
-
5-8tons/day
-
Product Type:
-
kraft paper
-
Processing Type:
-
kraft paper machine
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
dingchen
-
Voltage:
-
220V/380V
-
Power:
-
5.5KW
-
Dimension(L*W*H):
-
2950*1320*1500mm
-
Weight:
-
3000 kg, 3000kg
-
Modle:
-
1575mm
-
Brand:
-
Zhengzhou Dingchen
-
Machine Type:
-
Kraft paper machine
-
Raw material:
-
Waste paper, waste carton, old carton box, wheat straw, rice straw
-
Output paper:
-
kraft paper, corrugated paper, kraftlinter, duplex paper, fluting
-
Max paper width:
-
1650mm
-
Capacity:
-
5-8tons/day
-
Color:
-
Optional

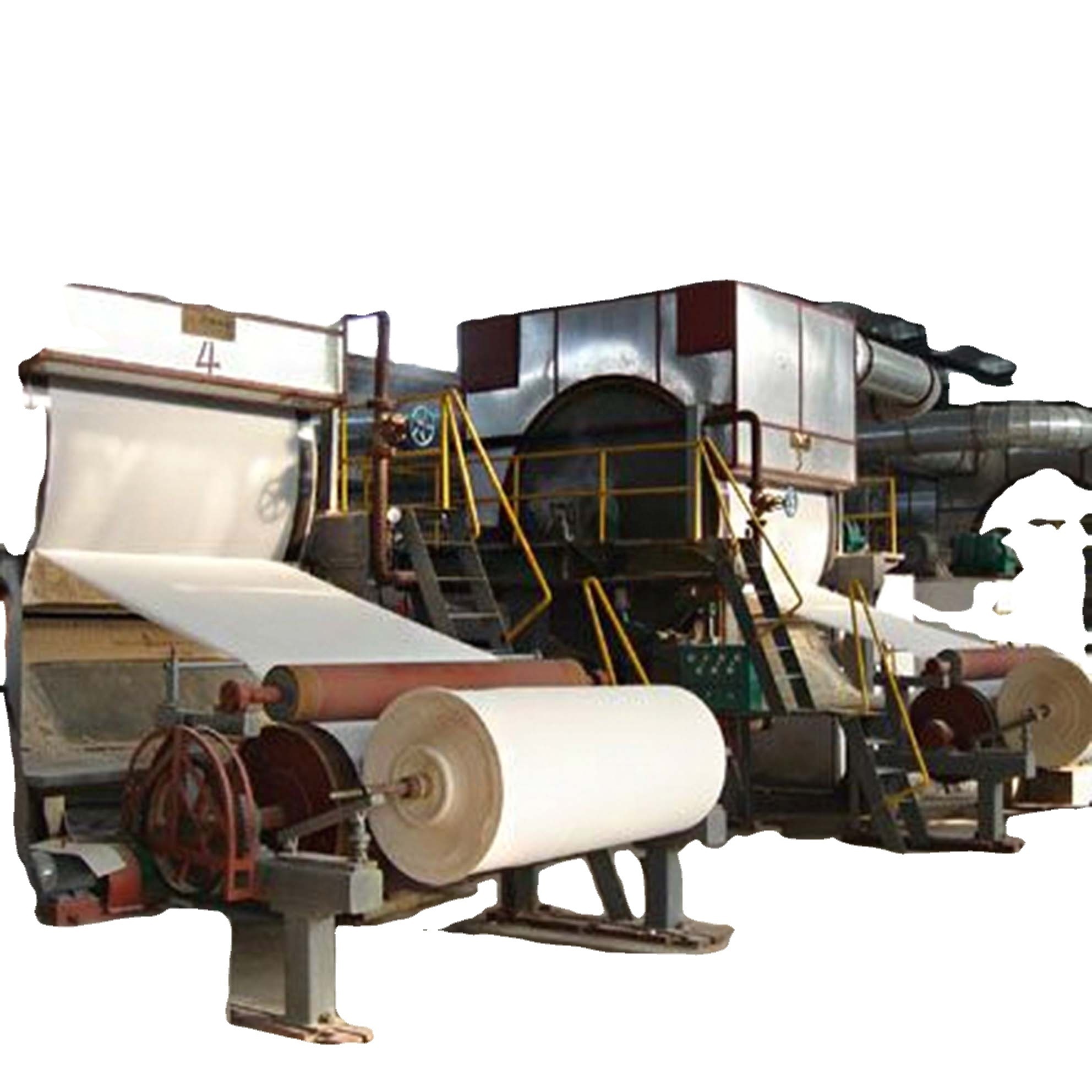

Zhengzhou Dingchen 1575mm Type Toilet Tissue Paper Making Machine Small Paper Recycling Machine
1. Output paper: facial tissue, paper napkin, handkerchief
2. Raw material: recycled paper and wood pulp
3. Capacity: 3-4 tons per day
4. Net paper width: 1600mm
5. Paper weight: 15-30 g/m 2
6. Design working speed: 150m/min
7. Working speed: 50-110m/min
8. Rail gauge: 2400mm
9. Width of cylinder mold: 1950mm
10. Drive way: A/C frequency converter speed adjusting, section drive.
1. Cylinder mold part
Φ1500mm×1950mmx2400mm stainless steel belted cylinder mold 1 pc,
Φ 400mm×1950mmx2400mm couch roll 1 pc, rubber hardness 38℃±2.
2. Dryer section part
Φ 2000mm×1950mmx2400mm alloy dryer cylinder 1 pc ,
Φ 450mm×1950mmx2400mm touch roll 1 pc, rubber hardness 90℃±2, with exhaust hood, pneumatic loading device.
3. Winding part
Φ 700mm×1950mmx2400mm winding cylinder 1 pc, 250 speed reducer 1 set.
4. Rewinding, cutting and finishing part
1575mm rewinding machine with embossing & perforating 1 set
Tissue paper cutting machine 1 set
Plastic bags sealing machine 1 set.
