Quick Details
-
Brand Name:
-
ZhaoNM
-
Material:
-
100% Virgin PTFE
-
Appearance density:
-
2.10-2.30 g/cm3
-
Tensile strength:
-
25 (min) MPa
-
Crack elongation:
-
280 (min) %
-
processing:
-
Skived
-
thickness:
-
0.025~ 0.5mm
-
Length:
-
2000 meters or mroe
-
hardness shore:
-
more than 55
-
working temperature:
-
-180-+270 degree
-
Dielectric strength:
-
≥ 30 kv/mm
Quick Details
-
color:
-
white
-
Shape:
-
sheet
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZhaoNM
-
Material:
-
100% Virgin PTFE
-
Appearance density:
-
2.10-2.30 g/cm3
-
Tensile strength:
-
25 (min) MPa
-
Crack elongation:
-
280 (min) %
-
processing:
-
Skived
-
thickness:
-
0.025~ 0.5mm
-
Length:
-
2000 meters or mroe
-
hardness shore:
-
more than 55
-
working temperature:
-
-180-+270 degree
-
Dielectric strength:
-
≥ 30 kv/mm
Product Description

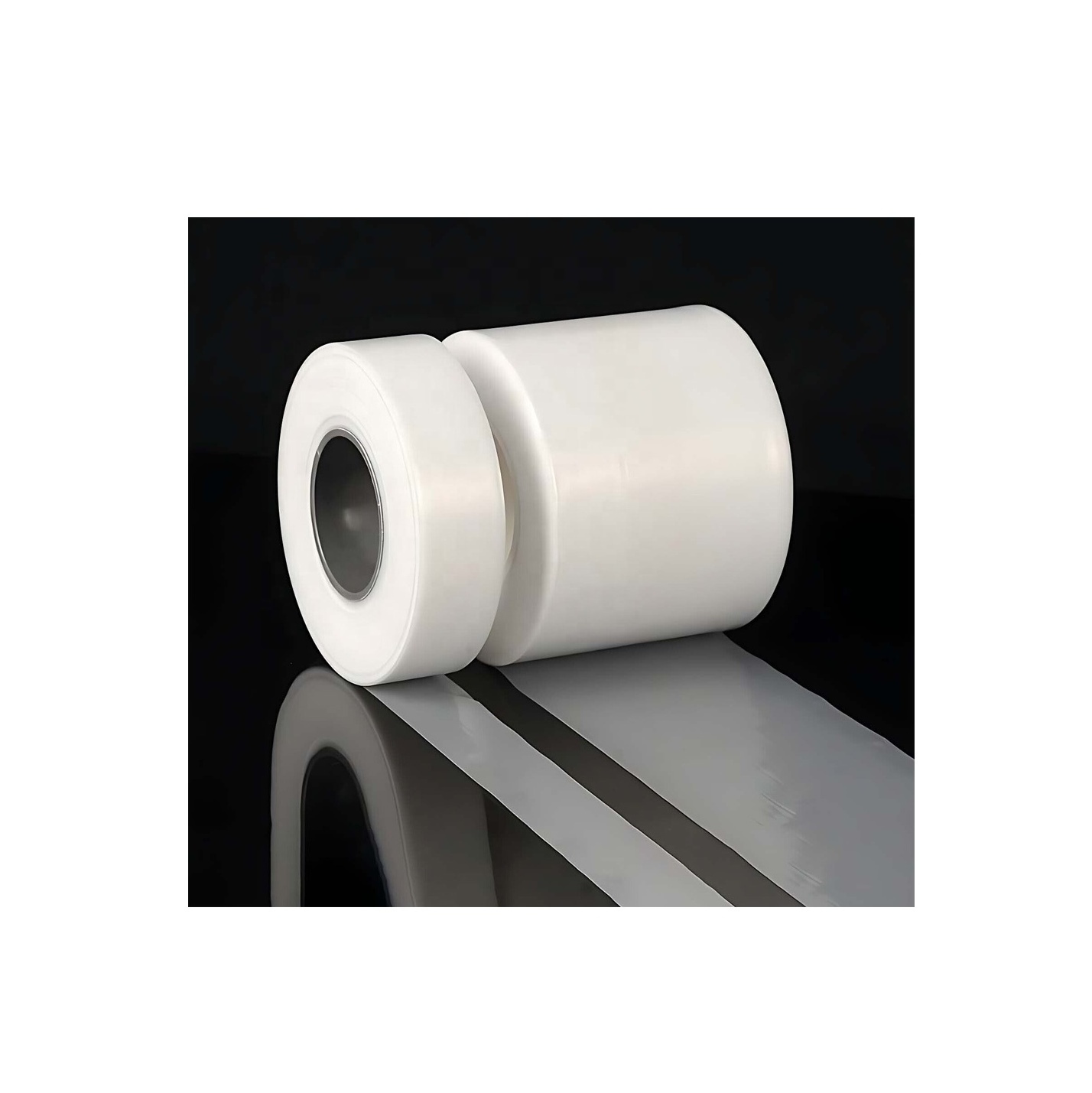

PTFE Film is skived from pure virgin polytetrafluoroethylene (PTFE) resin . PTFE Film provides a low-friction, non-stick surface suitable for use in high-temperature and high-dielectric applications. PTFE Film are available in roll form or cut to size sheets and can be supplied with a self-adhesive silicone adhesive (pressure-sensitive tape). And the film can be processed into a full-oriented type or a semi-oriented type.
Key Characteristics
1. Outstanding anti-stick release properties
2. Good temperature resistance, continuous working temperature -170-260 °C
3. Chemical resistance and inertness
4. Dielectric insulation properties
5. Non-flammable
6. Anti-aging
| Composition | 100% virgin material PTFE Film |
| Density | 2.10-2.30g/cm³ |
| Material | 100%virgin PTFE |
| Width | 50--2000mm |
| Thickness | Minimum 0.03mm |
| Length | Max 3000 meters or customized |
| Tear elongation | ≥25% |
| Temperature | -180°C ~ + 260°C |
| Tensile strength | ≥8Mpa |
| Dielectric strength | ≥30 kv/mm |
| Volume resistivity | 10^18 Ohm·cm |
| Surface resistivity | 10^17 Ohm |
| Thermalconductivity | 0.34 W/m·k |
Features
& Application
Features:
1.Anti-high/low temperature
2.Insulation
3.Anti-aging
4.Corrosion resistant
Application : Lining seaing and oilless lubricating material and dielectric at any frequencies. Capacitor dielectric, wire isolation, electrical instrument isolation.
