Quick Details
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
3000K/ 4000K/ 5000K
-
Product Weight（kg）:
-
0.14
-
Input Voltage(V):
-
AC200-240V
-
Lamp Luminous Flux(lm):
-
450
-
Model Number:
-
HS-DL-A-1-XD
-
Place of Origin:
-
Guangdong, China
-
Keyword:
-
Adjustable Anti-glare Spotlight
-
Power:
-
5W/ 10W/ 15W/ 25W/ 35W
-
Cutout:
-
75/ 95/ 120/ 140/ 160 mm
-
Beam Angle:
-
15/24
-
Dimmable:
-
Triac / 0-10V / DALI
-
Material:
-
Aluminim+Glass
-
Fliker:
-
Flicker Free
-
Feature:
-
Adjustable Light Direction
-
Installation:
-
Reccessed
-
Driver:
-
Lifud/Boke
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
90
-
Lamp Body Material:
-
Aluminum
-
Install Style:
-
Downlights
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
3000K/ 4000K/ 5000K
-
Product Weight（kg）:
-
0.14
-
Input Voltage(V):
-
AC200-240V
-
Lamp Luminous Flux(lm):
-
450
-
Model Number:
-
HS-DL-A-1-XD
-
Place of Origin:
-
Guangdong, China
-
Keyword:
-
Adjustable Anti-glare Spotlight
-
Power:
-
5W/ 10W/ 15W/ 25W/ 35W
-
Cutout:
-
75/ 95/ 120/ 140/ 160 mm
-
Beam Angle:
-
15/24
-
Dimmable:
-
Triac / 0-10V / DALI
-
Material:
-
Aluminim+Glass
-
Fliker:
-
Flicker Free
-
Feature:
-
Adjustable Light Direction
-
Installation:
-
Reccessed
-
Driver:
-
Lifud/Boke
Recommend Products
Products Description

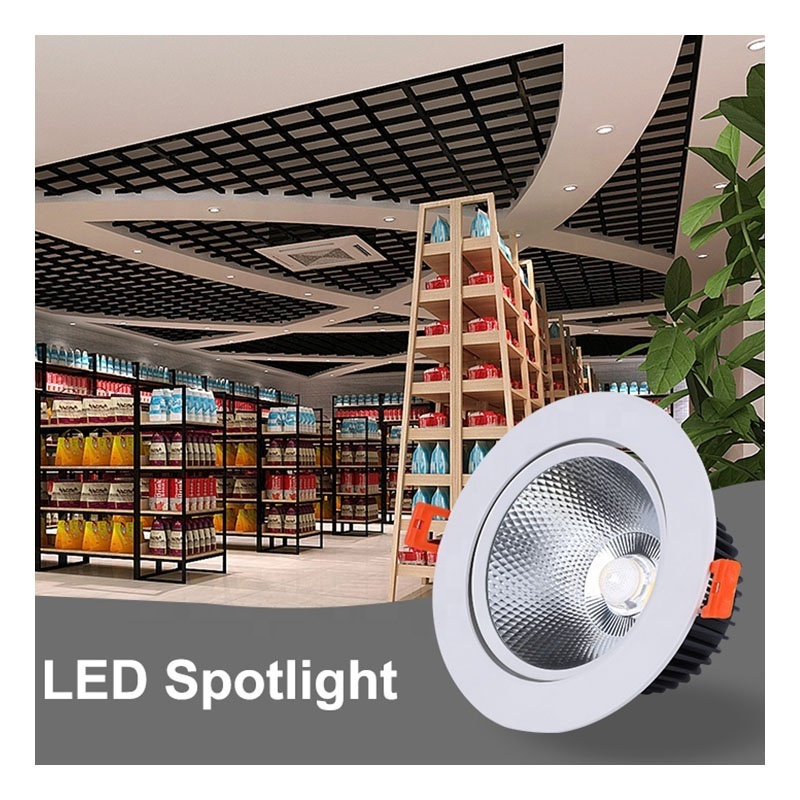

Adjustable LED Spotlight
Flicker Free 5W 15W 25W 30W 35W CRI80 Anti-glare Recessed Round LED COB Downlight
Product Features
1.Exquisite Surface Processed, Special Looking to Be Unique.
2.Adopt High Quality COB LED Compliant with LM-80, Lifespan Warranted.
3.6063 Aluminum,Tempered glass cover&Aluminum reflective cup,long lifespan.
4.Professional design of optics,no shadow,no light spot.
5.Mainly used in office, supermarket, m all .
6.External Current LED Driver, Isolating Solution, Safe and Reliable.
2.Adopt High Quality COB LED Compliant with LM-80, Lifespan Warranted.
3.6063 Aluminum,Tempered glass cover&Aluminum reflective cup,long lifespan.
4.Professional design of optics,no shadow,no light spot.
5.Mainly used in office, supermarket, m all .
6.External Current LED Driver, Isolating Solution, Safe and Reliable.
7.
Adjustable Angle: 45° Bidirectional,
Anti-glare
Product Paramenters
|
Model No.
|
HS-DL-A-1-XD
|
HS-DL-A-2-XD
|
HS-DL-A-3-XD
|
HS-DL-A-4-XD
|
HS-DL-A-5-XD
|
||||
|
Power(W)
|
5W
|
10W
|
15W
|
25W
|
35W
|
||||
|
Luminous(Im)
|
450
|
900
|
1300
|
2200
|
3100
|
||||
|
Lumen Efficiency
|
90lm/W
|
120L/W
|
|
|
|
||||
|
Color Temp
|
3000K 4000K 6000K
|
|
|
|
|
||||
|
Input Voltage
|
AC200-240V
|
AC200-240V
|
|
|
|
||||
|
Beam Angle
|
15°/24°
|
135°
|
|
|
|
||||
|
CRI
|
>80
|
>80
|
|
|
|
||||
|
PF
|
>0.9
|
>0.9
|
|
|
|
||||
|
Dimmable
|
1-10V/ DALI/ Triac
|
|
|
|
|
||||
|
Working Temperature
|
-20"C to 45C
|
|
|
|
|
||||
|
Certification
|
CE ROHS
|
CE ROHS
|
|
|
|
||||
|
Warranty
|
5 Years
|
5 Years
|
|
|
|
||||
Product packaging
|
Model No.
|
HS-DL-A-1-XD
|
HS-DL-A-2-XD
|
HS-DL-A-3-XD
|
HS-DL-A-4-XD
|
HS-DL-A-5-XD
|
|
Carton Size(cm)
|
52*32*23
|
62*38*31
|
62*32*39
|
55*36*33
|
61*41*37
|
|
QTYICTN(PCS)
|
60
|
60
|
32
|
18
|
18
|
|
G.W.ICTN(KG)
|
15
|
21
|
16
|
17
|
21.6
|
