Quick Details
-
Max.Thickness of Die Block (mm):
-
20 mm
-
Min.Thickness of Die Block (mm):
-
10 mm
-
Injection Force(kN):
-
1500kN
-
Injection Stroke(mm):
-
600mm
-
Ejection Force(kN):
-
500 kN
-
Ejection Stroke(mm):
-
600 mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YAOU
-
Voltage:
-
380V
-
Year:
-
2021
-
Weight (KG):
-
4000
-
Power (kW):
-
2*45
-
After-sales Service Provided:
-
Free spare parts
-
After Warranty Service:
-
Online support
Quick Details
-
Inner Space Between the Bars (Vertical)(mm):
-
800mm
-
Die-locking Force (kN):
-
5000kN
-
Inner Space Between the Bars (Horizontal)(mm):
-
600mm
-
Max.Thickness of Die Block (mm):
-
20 mm
-
Min.Thickness of Die Block (mm):
-
10 mm
-
Injection Force(kN):
-
1500kN
-
Injection Stroke(mm):
-
600mm
-
Ejection Force(kN):
-
500 kN
-
Ejection Stroke(mm):
-
600 mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YAOU
-
Voltage:
-
380V
-
Year:
-
2021
-
Weight (KG):
-
4000
-
Power (kW):
-
2*45
-
After-sales Service Provided:
-
Free spare parts
-
After Warranty Service:
-
Online support

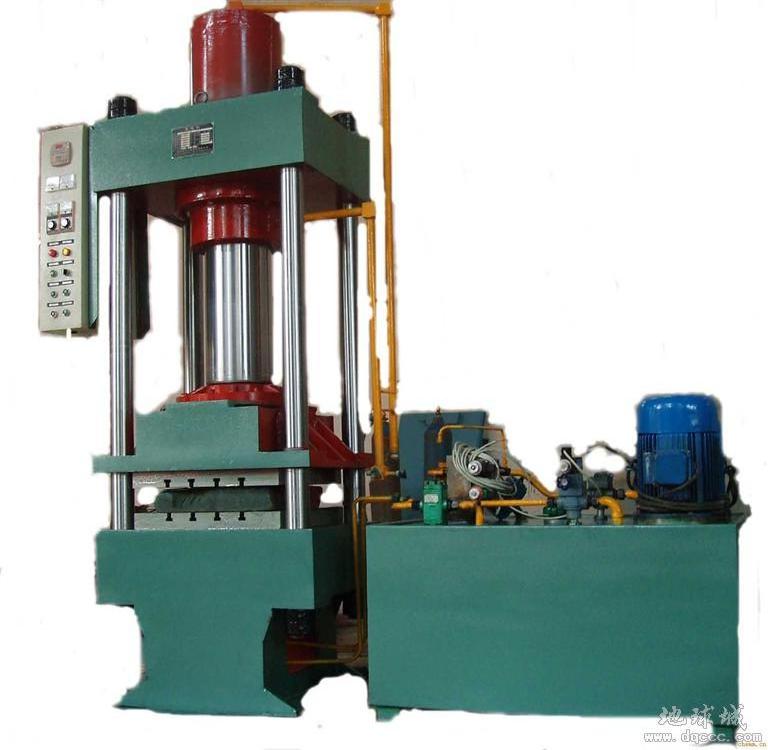

YQ13-1000 series Forging Hydraulic Press,
Mainly used for free forging, steel ingot and non-ferrous and black metal forming die forging, etc.
For example, this kind of hydraulic press can be applied in the producing of all kinds of forgings, crankshaft and flange product.
|
Category |
Model |
Rated pressure (KN) |
KN |
Liquid Working Pressure (Mpa) |
Stroke (mm) |
Daylight (mm) |
Size of Table (mm) |
Movable Crossbeam Speed (mm/s) |
||||
|
L-R |
F-B |
Descent |
Pressing |
Return |
||||||||
|
Press down |
Four-Column |
YQ13-500 |
5000 |
500 |
25 |
1200 |
2000 |
1600 |
1600 |
300 |
50 |
300 |
|
YQ13-800 |
8000 |
800 |
1200 |
2000 |
1600 |
1600 |
300 |
50 |
300 |
|||
|
YQ13-1000 |
10000 |
1000 |
1500 |
2500 |
1800 |
1800 |
300 |
50 |
300 |
|||
|
YQ13-1600 |
16000 |
1250 |
1600 |
2800 |
2100 |
2000 |
300 |
50 |
300 |
|||
|
YQ13-2000 |
20000 |
1250 |
1800 |
3200 |
2500 |
2000 |
300 |
50 |
300 |
|||
|
YQ13-3150 |
31500 |
4000 |
2000 |
3800 |
3300 |
2700 |
300 |
50 |
300 |
|||
|
YQ13-4000 |
40000 |
4000 |
1500 |
2300 |
2200 |
2200 |
350 |
40 |
350 |
|||
|
Withdraw |
Double Column |
YQ12-500 |
5000 |
800 |
1200 |
2000 |
1000 |
3000 |
300 |
50 |
300 |
|
|
YQ12-800 |
8000 |
1000 |
1200 |
2000 |
300 |
50 |
300 |
|||||
|
Four-Column |
YQ12-1600 |
16000 |
1600 |
1600 |
3000 |
2150 |
2000 |
300 |
50 |
300 |
||
|
YQ12-3150 |
31500 |
2000 |
2000 |
4000 |
3000 |
2600 |
300 |
50 |
300 |
|||
According to the volume and weight of the product and export requirements, provide multi-layer boxes and iron box packaging.
Transportation is based on customers in different regions using steam, rail, road and air transportation.
Q1. How to get an accurate quotation?
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machine
...
