So the mobile jaw moves towards the fixed jaw.The stuff will be crushed in this process.The angle between toggle plate and moving jaw decreases when moving jaw moves down,the moving jaw moves leaves fixed jaw by pulling rod and spring,the final crushed stuff will be discharged from the outlet.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Clirik
-
Dimension(L*W*H):
-
according to models
-
Weight:
-
500 KG
-
Color:
-
Customizable
-
Max feeding size:
-
850 mm
-
Output size:
-
10 mm
-
Usage:
-
Mining Crushing
-
Factory visit:
-
Welcomed Warmly
-
Market:
-
Globle
-
Raw material:
-
High Manganese Steel
-
After sale Service:
-
Lifelong Operation Time
-
The Machines classification:
-
Crushing Equipment
-
Function:
-
Hard Stone Crushing
Quick Details
-
Application:
-
mining, industrial
-
Capacity(t/h):
-
1-500
-
Place of Origin:
-
shanghai
-
Brand Name:
-
Clirik
-
Dimension(L*W*H):
-
according to models
-
Weight:
-
500 KG
-
Color:
-
Customizable
-
Max feeding size:
-
850 mm
-
Output size:
-
10 mm
-
Usage:
-
Mining Crushing
-
Factory visit:
-
Welcomed Warmly
-
Market:
-
Globle
-
Raw material:
-
High Manganese Steel
-
After sale Service:
-
Lifelong Operation Time
-
The Machines classification:
-
Crushing Equipment
-
Function:
-
Hard Stone Crushing
Heavy Duty 40/60 Tonnes Per Hour Electric PEX Rock Stone Jaw Crusher and Screen Price
*every production line needed machines has difference*
*the final quotation will according to your project case*
Product Description

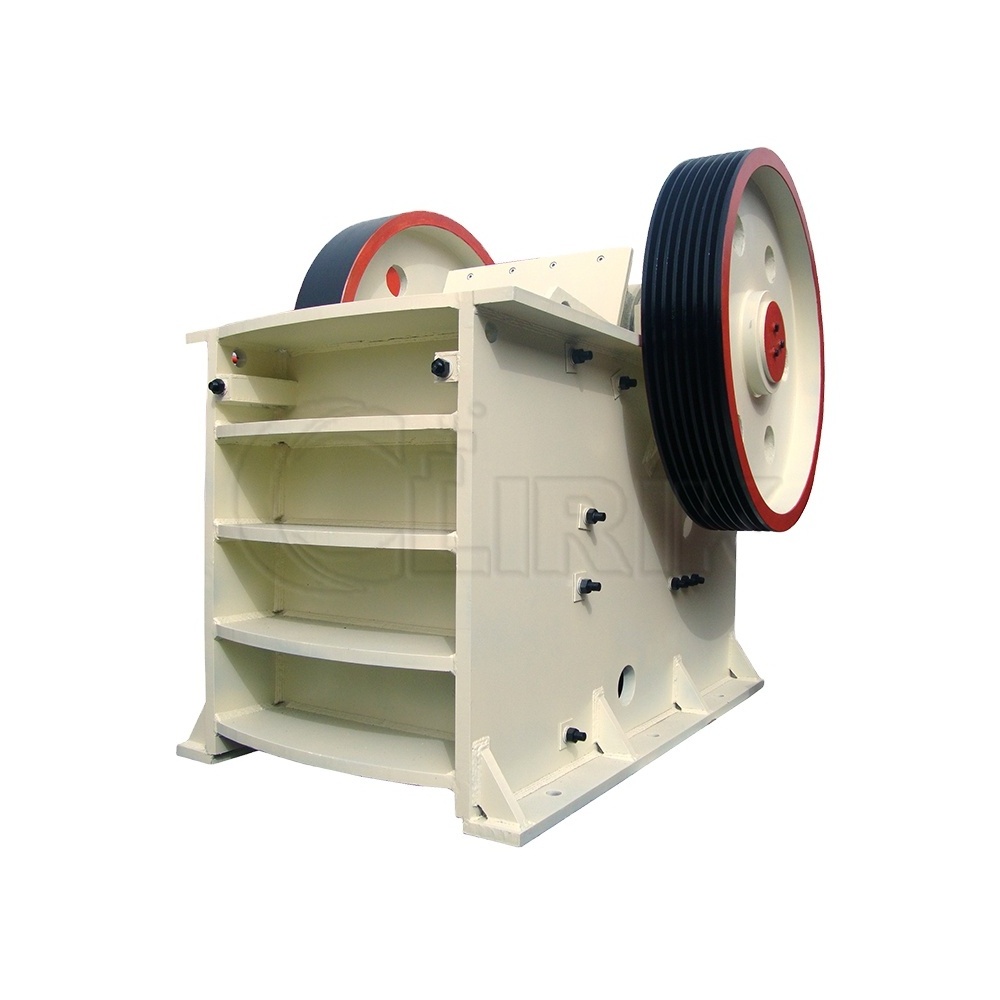

Clirik PE Series Jaw Crusher Introduction
1. Small stone powder jaw crusher is widely applied to crush high hardness, mid hardness and soft rocks and ores such as
ore,quartz, granite,limestone,slags, construction materials, marble, etc..
2.The maximum compression strength of materials to be crushed is 320MPA.
3.PE series is used for primary crushing, and PEX series is used for secondary crushing and fine crushing.
ore,quartz, granite,limestone,slags, construction materials, marble, etc..
2.The maximum compression strength of materials to be crushed is 320MPA.
3.PE series is used for primary crushing, and PEX series is used for secondary crushing and fine crushing.
PE series Jaw Crusher
---Working Principle
The motor transmits through belt,drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft.The angle between toggle plate and moving jaw plate increases when mobile jaw moving.
Advantages of Clirik PE series Jaw Crusher
1. Reliable quality can be guaranteed for many years without repair.
2. Good particle size, the crushing cavity and jaw plate tooth have been designed specially.
3. It is well suit for running in very poor working environment.
4. High crushing ratio,even particle size,low noise
5. Strong adaptability to materials,wide market
6. A single machine saves 15%~30% of energy consumed and the system can save over half the energy consumed
7.The bearings adopt complete steel structure.---The whole cast steel housing can fully coordinate with the rack. Meanwhile, it greatly enhances the radial intensity of the bearings.
8.The applications of finite element analysis technology can greatly strengthen the efficiency of crushing process.
9. It is more convenient to adjust the discharging mouth.---The adjusting device is equipped with wedge block, while our devices are simpler and safer than the old-fashioned ones.
2. Good particle size, the crushing cavity and jaw plate tooth have been designed specially.
3. It is well suit for running in very poor working environment.
4. High crushing ratio,even particle size,low noise
5. Strong adaptability to materials,wide market
6. A single machine saves 15%~30% of energy consumed and the system can save over half the energy consumed
7.The bearings adopt complete steel structure.---The whole cast steel housing can fully coordinate with the rack. Meanwhile, it greatly enhances the radial intensity of the bearings.
8.The applications of finite element analysis technology can greatly strengthen the efficiency of crushing process.
9. It is more convenient to adjust the discharging mouth.---The adjusting device is equipped with wedge block, while our devices are simpler and safer than the old-fashioned ones.
PE series Jaw Crusher Certification
At present, we have passed many international certification, such as: CE, SGS, ISO9001, BV and etc, if you are interested in our crusher, you can leave your inquiry to us.
Specification
|
Model
|
Feeder Size(mm)
|
Input Size(mm)
|
Output Size(mm)
|
Capacity(t/h)
|
Powder(kw)
|
Dimension(mm)
|
|
PE150*250
|
150*250
|
125
|
10-40
|
1-5
|
5.5-7.5
|
922*745*933
|
|
PE200*300
|
200*300
|
125
|
15-30
|
2-10
|
7.5
|
935*750*990
|
|
PE200*350
|
200*350
|
125
|
15-40
|
5-16
|
7.5-11
|
1056*1142*1220
|
|
PE250*400
|
250*400
|
210
|
20-60
|
5-20
|
15-18.5
|
1430*1310*1340
|
|
PE400*600
|
400*600
|
350
|
40-100
|
15-60
|
30-37
|
1700*1732*1653
|
|
PE500*750
|
500*750
|
425
|
50-100
|
40-100
|
45-55
|
2035*1921*2000
|
|
PE600*750
|
600*750
|
465
|
60-140
|
50-120
|
50-65
|
2150*1988*2105
|
|
PE600*900
|
600*900
|
480
|
65-160
|
60-140
|
55-75
|
2290*2106*2370
|
|
PE750*1060
|
750*1060
|
550
|
75-200
|
75-160
|
60-85
|
4180*2560*3070
|
|
PE1000*1200
|
1000*1200
|
850
|
195-265
|
315-500
|
110
|
3480*2876*3330
|
|
PEX150*750
|
150*750
|
120
|
18-48
|
8-25
|
7.5-75
|
1200*1530*1060
|
|
PEX250*400
|
250*400
|
210
|
12
|
5-10
|
15-18.5
|
1430*1310*1340
|
|
PEX250*1000
|
250*1000
|
210
|
25-60
|
16-50
|
30-37
|
1530*1992*1380
|
|
PEX250*1200
|
250*1200
|
210
|
25-60
|
20-60
|
37-45
|
2192*1605*1415
|
|
PEX300*1300
|
300*1300
|
250
|
25-105
|
20-90
|
75
|
2720*1950*1600
|
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------
