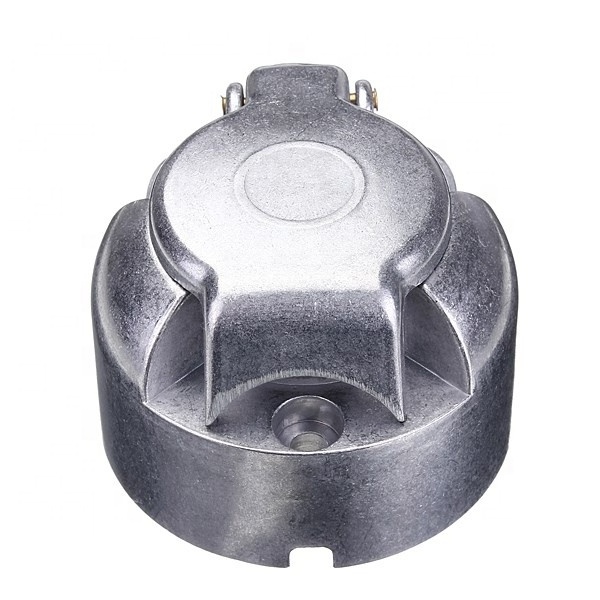

Europe 7 Pin 12V Metal Trailer Socket Plug Heavy Duty Adapter Wiring Connector

Item Type Electrical Plug & Sockets
Item Name 7-Pin Trailer Plug
Material Type Aluminum
Color Silver
Item Size 7x7x5cm
Item Weight 95 g
Input voltage 12V DC
Features
Connect the major vehicle and the additional trailer;
Transfer the electronic signature from the vehicle to trailer.
Type Extension Socket
Wiring Configuration:
PIN 1 - Yellow Wire ( left hand direction indicator )
PIN 2 - Blue Wire ( rear fog lamp )
PIN 3 - White Wire ( earth return )
PIN 4 - Green Wire ( right hand direction indicator )
PIN 5 - Brown Wire ( right hand tail and plate lamp )
PIN 6 - Red Wire ( stop lamp )
PIN 7 - Black Wire ( left hand tail and plate lamp )
PIN 8 - Pink Wire ( reversing light )
PIN 9 - Orange Wire ( 12V permanent power from battery )
PIN10 - Gray Wire (12V ignition on battery charging or fridge )
PIN11 - White / Black Wire ( earth for terminal 10 )
PIN12 - White / Blue Wire ( not usually used )
PIN13 - White / Red Wire ( earth for terminal 9 )
