Quick Details
-
Ejector Stroke(mm):
-
135 mm
-
Ejector Force(kN):
-
50 kN
-
Theoretical Shot Volume(cm³):
-
432 cm³
-
Injection Rate (g/s):
-
196 g/s
-
Injection Weight (g):
-
393 g
-
Screw Speed (rpm):
-
0 - 180 rpm
-
Screw diameter (mm):
-
50 mm
-
Weight (KG):
-
50 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
435 mm
-

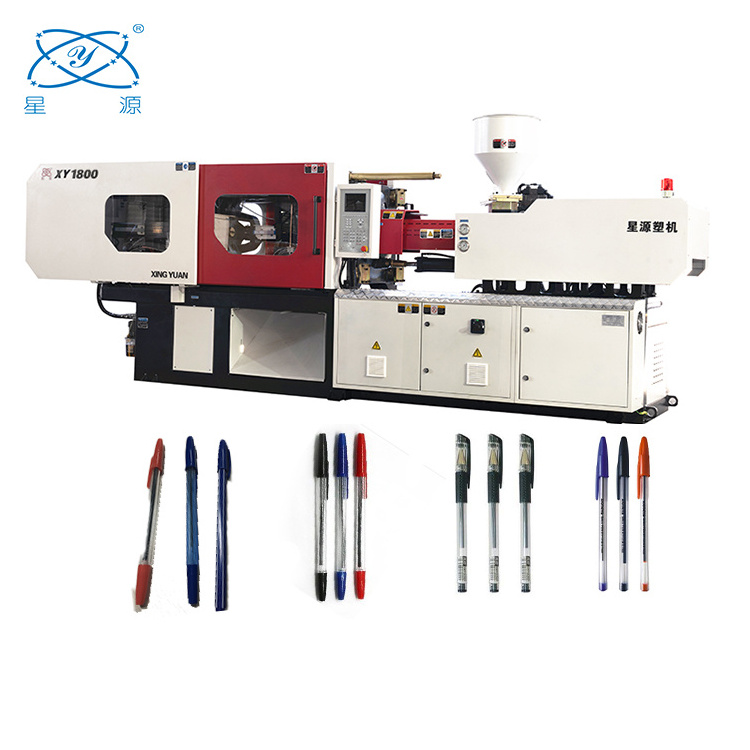

Model Number:
-
XY1800
-
Brand Name:
-
Xingyuan
-
Power (kW):
-
10.35 kW
-
Plastic injection moulding machine:
-
plastic pen making machine
-
injection machine:
-
plastic product producing machine
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
480mm
-
Distance between Tie Bars(Height)(mm):
-
480mm
-
Mold Height(mm):
-
180 - 520 mm
-
Ejector Stroke(mm):
-
135 mm
-
Ejector Force(kN):
-
50 kN
-
Theoretical Shot Volume(cm³):
-
432 cm³
-
Injection Rate (g/s):
-
196 g/s
-
Injection Weight (g):
-
393 g
-
Screw Speed (rpm):
-
0 - 180 rpm
-
Screw diameter (mm):
-
50 mm
-
Weight (KG):
-
50 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
435 mm
-
Model Number:
-
XY1800
-
Brand Name:
-
Xingyuan
-
Power (kW):
-
10.35 kW
-
Plastic injection moulding machine:
-
plastic pen making machine
-
injection machine:
-
plastic product producing machine
Products Description
|
SPECIFICATION
|
|
XY1800
|
|
|
|
||||
|
|
|
A
|
B
|
C
|
D
|
||||
|
INJECTION UNIT
|
|
|
|
|
|
||||
|
SCREW DIAMETER
|
mm
|
42
|
45
|
50
|
|
||||
|
SCREW L/D RATIO
|
L/D
|
23.6
|
22
|
19.8
|
|
||||
|
SHOT VOLUME(THEORETICAL)
|
cm3
|
305
|
350
|
432
|
|
||||
|
INJECTION WEIGHT(PS)
|
g
|
277
|
319
|
393
|
|
||||
|
INJECTION RATE
|
g/s
|
138
|
160
|
196
|
|
||||
|
INJECTION PRESSURE
|
MPa
|
203
|
177
|
143
|
|
||||
|
SCREW SPEED
|
rpm
|
180
|
|
|
|
||||
|
CLAMPING UNIT
|
|
|
|
|
|
||||
|
CLAMP FORCE
|
KN
|
1800
|
|
|
|
||||
|
OPEN STROKE
|
mm
|
435
|
|
|
|
||||
|
SPACE BETWEEN TIE BARS(W*H)
|
mm
|
480x480
|
|
|
|
||||
|
MAX.MOULD HEIGHT
|
mm
|
520
|
|
|
|
||||
|
MIN.MOULD HEIGHT
|
mm
|
180
|
|
|
|
||||
|
EJECTOR STROKE
|
mm
|
135
|
|
|
|
||||
|
EJECTOR FORCE
|
KN
|
50
|
|
|
|
||||
|
OTHER
|
|
|
|
|
|
||||
|
MAX.PUMP PRESSURE
|
MPa
|
16
|
|
|
|
||||
|
PUMP MOTOR POWER
|
kW
|
18.5
|
|
|
|
||||
|
HEATING POWER
|
kW
|
10.35
|
|
|
|
||||
|
MACHINE DIMENSION(L*W*H)
|
m
|
5.16x1.45x2.12
|
|
|
|
||||
|
OILTANK CUBAGE
|
L
|
300
|
|
|
|
||||
|
MACHINE WEIGHT
|
t
|
5.29
|
|
|
|
||||
|
EJECTOR STROKE
|
mm
|
80
|
|
|
|
||||
|
EJECTOR FORCE
|
KN
|
28
|
|
|
|
||||
|
OTHER
|
|
|
|
|
|
||||
|
MAX.PUMP PRESSURE
|
MPa
|
14
|
|
|
|
||||
|
PUMP MOTOR POWER
|
kW
|
7.5
|
|
|
|
||||
|
HEATING POWER
|
kW
|
6.1
|
|
|
|
||||
|
MACHINE DIMENSION(L*W*H)
|
m
|
3.3*1.0*1.5
|
|
|
|
||||
|
OILTANK CUBAGE
|
L
|
120
|
|
|
|
||||
|
MACHINE WEIGHT
|
t
|
2.4
|
|
|
|
||||
