Quick Details
-
Valve Core Material:
-
Brass
-
Model Number:
-
ZY-8113
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Geagle
-
Finish:
-
Chrome
-
Applicable water temperature:
-
Hot≤80°C Cold ≥1°C
-
Power supply:
-
DC:6V 4xAA Alkaline batteries AC:110V-240V, 50Hz/60Hz, AD combined
-
Waterway connection:
-
G1/2", G3/8"
-
Solenoid valve lifetime:
-
> 500, 000 times
-
Certification:
-
CE
-
Respond time:
-
Open ≤ 0.5s Close ≤ 1s
-
Applicable ambient temperature:
-
1-45℃
-
Type:
-

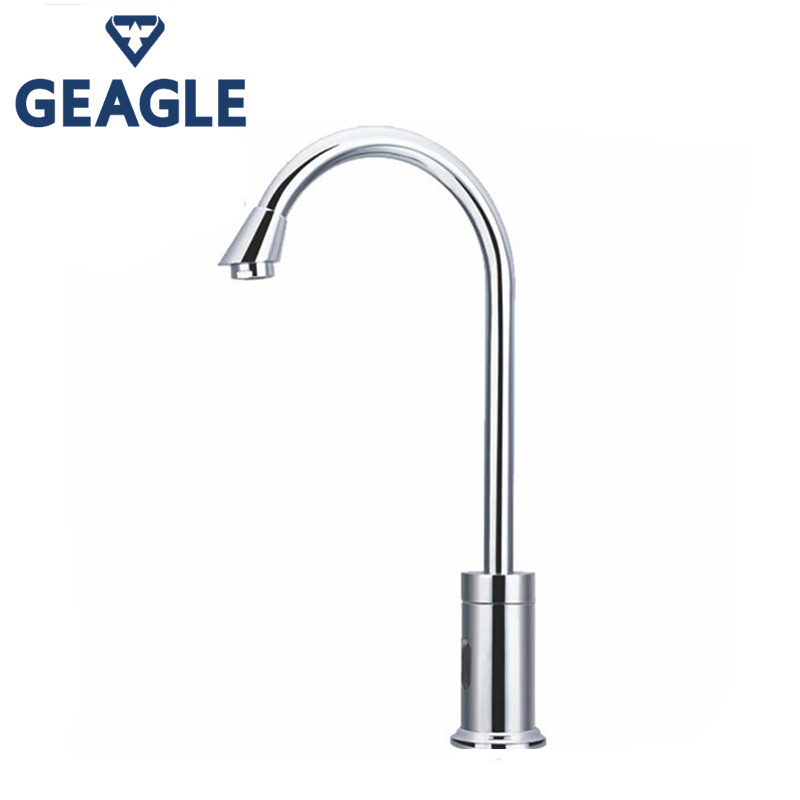

Basin Faucets
Quick Details
-
Project Solution Capability:
-
Others
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Valve Core Material:
-
Brass
-
Model Number:
-
ZY-8113
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Geagle
-
Finish:
-
Chrome
-
Applicable water temperature:
-
Hot≤80°C Cold ≥1°C
-
Power supply:
-
DC:6V 4xAA Alkaline batteries AC:110V-240V, 50Hz/60Hz, AD combined
-
Waterway connection:
-
G1/2", G3/8"
-
Solenoid valve lifetime:
-
> 500, 000 times
-
Certification:
-
CE
-
Respond time:
-
Open ≤ 0.5s Close ≤ 1s
-
Applicable ambient temperature:
-
1-45℃
-
Type:
-
Basin Faucets
| Model | DC | AC | AD |
| Power Supply | DC:6V |
AC:110V.220V-240V 50Hz-60Hz |
AC:220V-240V.50Hz-60Hz DC:6V(Auto Swith) |
| Faucet Body Material | Brass | ||
| Applicable Water Pressure | 0.05-0.7MPa | ||
| Water Temperature | 0.1-60ºC | ||
| Environment Temperature | 0.1-45ºC | ||
| Water Supplying Caliber | G1/2.G3/8 | ||
Note:
1.Integrated automatic sensor faucet, fashionable and elegant. Temperature can be adjusted from the faucet body.
2.Designed with SCM, it is intelligent and induce rapidly. Stop water automatically when water flowing exceed 1 minute.Induce distance can be adjusted free of touching. Water inlet installed with strainer, it can be removed and clean to prevent valve.
3.Power supply: a: DC 6V, b: AC 110V-240V, c: AC/DC auto switch: when AC power off, DC will supply power automatically, and when AC power on, DC will switch to AC.
8pcs/ctn
Inner box size: 39x21.5x9.5cm
Carton size: 45x40x32.5cm
Carton weight: N.W.: 14kgs G.W.: 14.6kgs
