Quick Details
-
Throat Depth (mm):
-
380 mm
-
Width of Working Table (mm):
-
250 mm
-
Dimension:
-
3000*2480*3000mm
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
accurl
-
Weight (KG):
-
30000
-
Motor Power (kw):
-
22 kw
-
Marketing Type:
-
New Product 2021
-
Name:
-
Hydraulic Cnc Press Brake
-
Keyword:
-
Press Brake
-
CNC Control system:
-
DA58T System
-
Motor:
-
Siemens Motor
-
Electrical components:
-
SCHNEIDER TE France
-
Model:
-
MB8-400T 4000mm
-
Max Open:
-
430mm
-
Servo motor/ Servo drive:
-
DELTA
-
Product name:
-
Magnetic Bending Machine
-
Application:
-
Stainless Plate Bending
Quick Details
-
Machine Type:
-
Synchronized
-
Length of Working Table (mm):
-
3000 mm
-
Slider Stroke (mm):
-
350 mm
-
Throat Depth (mm):
-
380 mm
-
Width of Working Table (mm):
-
250 mm
-
Dimension:
-
3000*2480*3000mm
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
accurl
-
Weight (KG):
-
30000
-
Motor Power (kw):
-
22 kw
-
Marketing Type:
-
New Product 2021
-
Name:
-
Hydraulic Cnc Press Brake
-
Keyword:
-
Press Brake
-
CNC Control system:
-
DA58T System
-
Motor:
-
Siemens Motor
-
Electrical components:
-
SCHNEIDER TE France
-
Model:
-
MB8-400T 4000mm
-
Max Open:
-
430mm
-
Servo motor/ Servo drive:
-
DELTA
-
Product name:
-
Magnetic Bending Machine
-
Application:
-
Stainless Plate Bending
Products Description

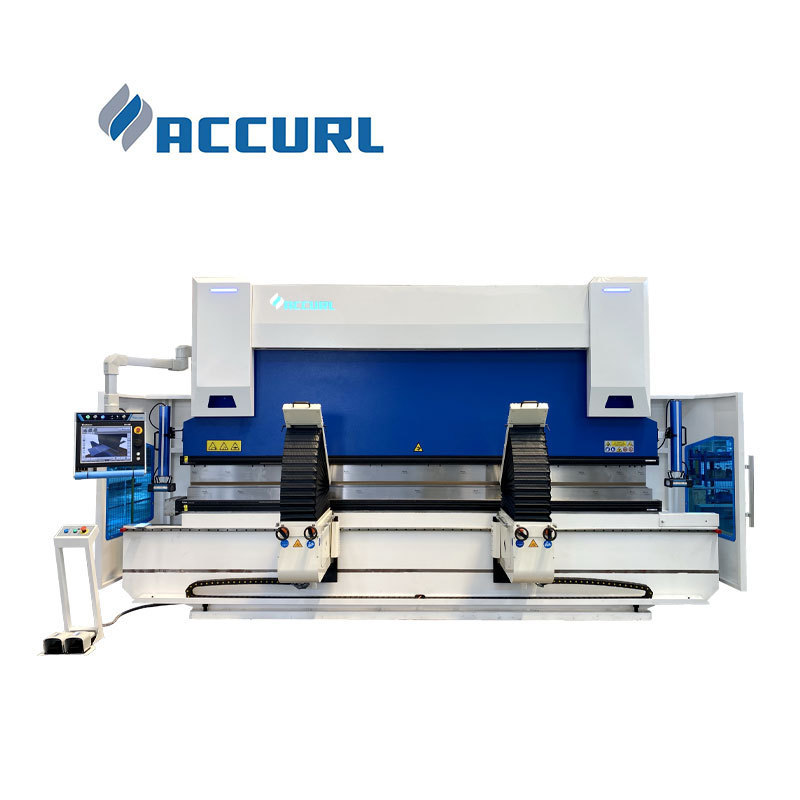

CNC PRESS BRAKE EURO GENIUS SERIES
ACCURL® EURO-GENIUS Series press brake features an CNC crowning system for improved quality, a servo driven back gauge system for increased speeds, and 3D capable graphical control unit to simulate bending sequences and collision points.Also has increased working speeds, stroke, daylight, and pressing capacities of GENIUS Series machines. The future - as a result of rising energy costs and increasingly cost efficient speed-controlled drives offered on the market, variable-speed solutions are on the advance.
Details Images
CNC CONTROL SYSTEM
CNC BACKGAUGE
ACCURL press brake are provided are equipped with a backgauge constituted by a solid structure in order to assure the best repetitiveness and high precision in axes positioning.
|
BGA
|
X
|
R
|
Z1
|
Z2
|
X2
|
|
Stroke(mm)
|
750
|
150
|
UNDER REQUEST
|
UNDER REQUEST
|
190
|
|
Speed(mm/s)
|
500
|
170
|
2000
|
2000
|
200
|
|
Precision(mm)
|
+0,02
|
+0,05
|
+0,05
|
+0,05
|
+0,02
|
|
Type of motor
|
BRUS HLESS
|
BRUS HLESS
|
BRUS HLESS
|
BRUS HLESS
|
BRUS HLESS
|
|
Mechanical system
|
SCREW
|
SCREW
|
RACR
|
RACR
|
SCREW
|
WILA NEW STANDARD AND CLAMPING SYSTEMS
Innovative and super-fast clamping systems for clamping punches to the upper beams of press brakes. The Universal Press Brake Concept (UPB) makes it possible install New Standard and Clamping Systems on any press brake.
WILA NEW STANDARD CROWING AND HOLDERS
WILA Crowning systems fully compensate for the deflection in press brakes. This results in a consistent bending angle across the entire length of the machine. WILA New Standard Crowning Systems utilize a series of patented adjustable wedges known as Wila Waves.
LASER CHECK ANGLE MEASUREMENT
Laser Check, manufactured by Data M Engineering, is a bend angle measurement and correction system by means of a laser beam. The device is made of a laser and a camera on both sides of the bending line. Detection is carried out in this way.
LAZERSAFE OPTICAL SAFETY GUARDS
Performance without compromise.
ACCURLuse LazerSafe LZS-LG-HS guarding system offers a highly effective solution for both operator safety and machine productivi-
ty.Designed for use with Lazer Safe's PCSS A Serice, the Lazersafe is category 4 compliant and meets the world’s most demanding
international safety standards(CE Certified Category 4 Safety Controller with integrated)。
