Quick Details
-
Range of Spindle Speed(r.p.m):
-
125 - 630 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Datang
-
Model Number:
-
DXBJ
-
Table Travel (mm):
-
standard
-
Year:
-
2021
-
Spindle Motor Power(kW):
-
standard
-
Voltage:
-
Customer Requirement
-
Dimension(L*W*H):
-
standard
-
Weight (KG):
-
8000
-
Effective milling zone length:
-
6-12m
-
Milling angle adjustiment:
-
0-45deg
-
applicable steel plate thickness:
-
6-50mm
-
Max milling width by one pass:
-
12mm
-
Milling travel speed:
-
0.3/0.5m/min
-
Spidle speed:
-
125-800rpm for edge milling machine
-
Number of clamping shoes:
-
8-15mPa
-
Feeding motor capacity:
-
1.1/0.85Kw
-
The power of milling moto:
-
3Kw
Quick Details
-
Table Travel (X) (mm):
-
6000 mm
-
Table Travel (Y) (mm):
-
800 mm
-
Table Travel (Z) (mm):
-
600 mm
-
Range of Spindle Speed(r.p.m):
-
125 - 630 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Datang
-
Model Number:
-
DXBJ
-
Table Travel (mm):
-
standard
-
Year:
-
2021
-
Spindle Motor Power(kW):
-
standard
-
Voltage:
-
Customer Requirement
-
Dimension(L*W*H):
-
standard
-
Weight (KG):
-
8000
-
Effective milling zone length:
-
6-12m
-
Milling angle adjustiment:
-
0-45deg
-
applicable steel plate thickness:
-
6-50mm
-
Max milling width by one pass:
-
12mm
-
Milling travel speed:
-
0.3/0.5m/min
-
Spidle speed:
-
125-800rpm for edge milling machine
-
Number of clamping shoes:
-
8-15mPa
-
Feeding motor capacity:
-
1.1/0.85Kw
-
The power of milling moto:
-
3Kw
|
Model
|
XB6
|
XB9
|
XB12
|
|||
|
Milling angle（°）
|
0-45
|
|
|
|||
|
Milling plate thickness(mm)
|
6-50
|
|
|
|||
|
Milling depth for one time(mm)
|
12
|
|
|
|||
|
Transverse milling speed(mm/min)
|
300/500
|
|
|
|||
|
Milling free speed(mm/min)
|
4000
|
|
|
|||
|
Main shaft rotation speed(rpm)
|
125-630
|
|
|
|||
|
Hydraulic system pressure(MPa)
|
《3.5
|
|
|
|||
|
Support platform cylinder capacity(Piece)
|
8
|
11
|
15
|
|||
|
Support platform to the ground distance(mm)
|
900
|
|
|
|||
|
Feeding motor power(kw)
|
1.1/0.85
|
|
|
|||
|
Milling motor power(kw)
|
3
|
|
|
|||
|
Oil pump motor power(kw)
|
5.5
|
|
|
|||
|
Voltage
|
380V-3PH-50HZ (Other voltage can customized）
|
|
|
|||
|
Options:1.drilling&milling heat 2.three axis Digital Display
|
|
|
|
|||

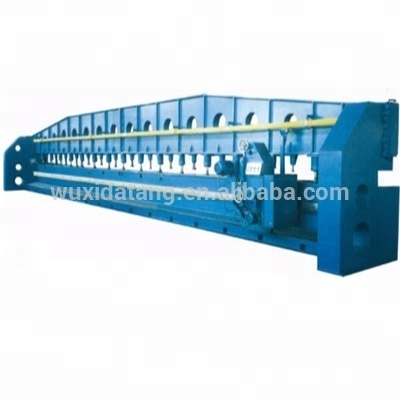

Compare with the traditional edge milling machine. The series Edge Milling Machine has the assemble and disassemble track with heat-treatment. The lathe has the reasonable structure.
Precise Positioning
The milling head running is steady and reliable. The feeding system and backing system is identified full, free speed is fast and efficiency is high. The milling head angle adjusting is easy.
The tailor made milling facer and standard milling facer is changeable, which is the new generation product.
