Quick Details
-
Air Consumption:
-
10~12m3/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Leadcrete
-
Voltage:
-
220V, 380V, 440V, 660V
-
Power:
-
7.5kw
-
Dimension(L*W*H):
-
1.5* 0.83* 1.32m
-
Weight:
-
900 kg
-
type:
-
shotcrete machine
-
rated output:
-
9m3/h
-
motor power:
-
7.5kw
-
dimension:
-
1.65*0.9*1.25m
-
weight:
-
900kg
-
certificate:
-
CE, ISO and so on
-
Max. Aggregate Size:
-
Dia. 20mm
-
Conveying Hose Inner Diameter:
-
Dia. 64mm
-
Certification:
-
ISO CE SGS
Quick Details
-
Max. Conveying Distance:
-
200m
-
Max Aggregate Size:
-
20mm
-
Hose Inner Diameter:
-
64 mm
-
Air Consumption:
-
10~12m3/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Leadcrete
-
Voltage:
-
220V, 380V, 440V, 660V
-
Power:
-
7.5kw
-
Dimension(L*W*H):
-
1.5* 0.83* 1.32m
-
Weight:
-
900 kg
-
type:
-
shotcrete machine
-
rated output:
-
9m3/h
-
motor power:
-
7.5kw
-
dimension:
-
1.65*0.9*1.25m
-
weight:
-
900kg
-
certificate:
-
CE, ISO and so on
-
Max. Aggregate Size:
-
Dia. 20mm
-
Conveying Hose Inner Diameter:
-
Dia. 64mm
-
Certification:
-
ISO CE SGS
plastering tools concrete spraying shotcrete machine price
Product Description
plastering tools concrete spraying shotcrete machine price
Description:

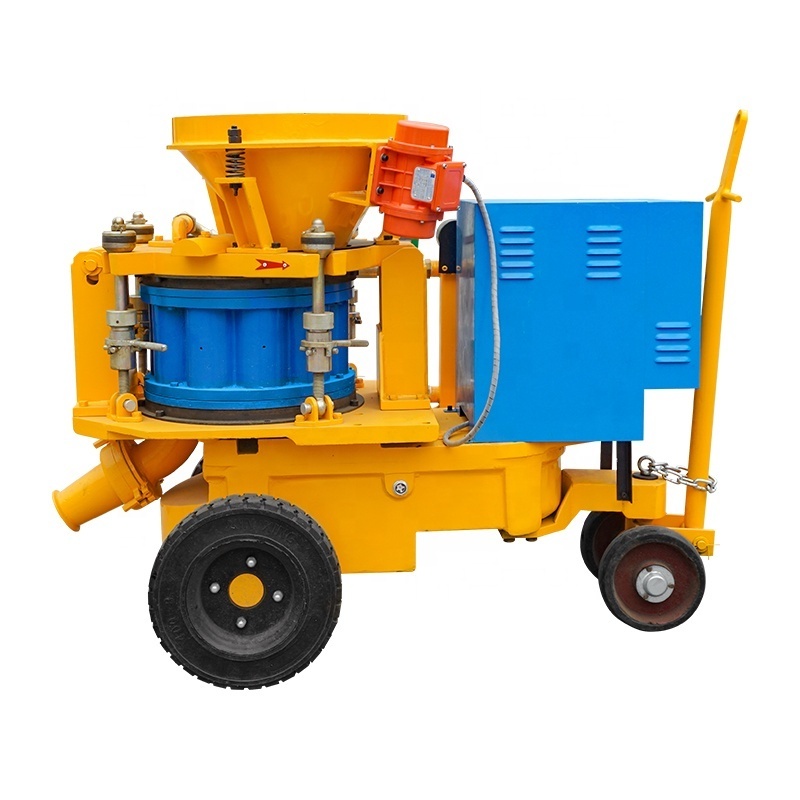

LZ-9E electric drive dry mix concrete spraying machine is LEC large-sized shotcrete machine for the spraying process.
LZ-9E electric drive dry mix concrete spraying machine can be used for large-section tunnel building, mine, etc
LZ-9 dry mix concrete spraying machine is available in following versions:
Basic: Electric drive can be combined with tyre chassis
Extended (optional): Air motor drive or diesel drive combined with Skid or Rail-wheel
LZ-9E electric drive dry mix concrete spraying machine is LEC large-sized shotcrete machine for the spraying process.
LZ-9E electric drive dry mix concrete spraying machine can be used for large-section tunnel building, mine, etc
LZ-9 dry mix concrete spraying machine is available in following versions:
Basic: Electric drive can be combined with tyre chassis
Extended (optional): Air motor drive or diesel drive combined with Skid or Rail-wheel
Technical parameters
|
Specification (with Electric motor drive):
|
|
|
|
Output Capacity
|
9m3 /h
|
|
|
Max. Horizontal Conveying Distance
|
200m
|
|
|
Suitable Mix Ratio(Cement/Sand)
|
≤1:4~5
|
|
|
Max. Aggregate Size
|
Dia.20 mm
|
|
|
Conveying Hose Inner Diameter
|
Dia.64 mm
|
|
|
Conveying Pressure
|
0.2-0.4MPa(29-58PSI)
|
|
|
Air Consumption
|
10~12m3/min(357-430CFM)
|
|
|
Material Charging Height
|
1.1m
|
|
|
Rotor Speed
|
11r/min
|
|
|
Electric Motor
|
7.5kW,Y132M-4,IP55
|
|
|
Vibrator Electric Motor
|
0.15kW,XVM-A1.5-2
|
|
|
Available Voltage
|
220V,380V, 440V,660V 50Hz/60Hz
|
|
|
Overall Dimension(length×width×height)
|
1.65×0.9×1.25m
|
|
|
Net Weight
|
900kg
|
|
Product Details
Related products
We have developed full series of dry-mix shotcrete machines and wet-mix shotcrete machines, output from 1.5m3/h to 9m3/h, electric motor, diesel engine, air motor and gasoline engine are available options for customization.
Now we offer a video for full series of shotcrete machines.
Now we offer a video for full series of shotcrete machines.
Advantage
1. High quality, reliable performance.
2. Good seal performance, little dust.
3. Reasonable design, convenient to move.
4. Convenient operation and longevity of service.
5. Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
6. Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
7. Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
8. Widely used in mining, tunnel, culvert, revetment etc.
2. Good seal performance, little dust.
3. Reasonable design, convenient to move.
4. Convenient operation and longevity of service.
5. Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
6. Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
7. Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
8. Widely used in mining, tunnel, culvert, revetment etc.
