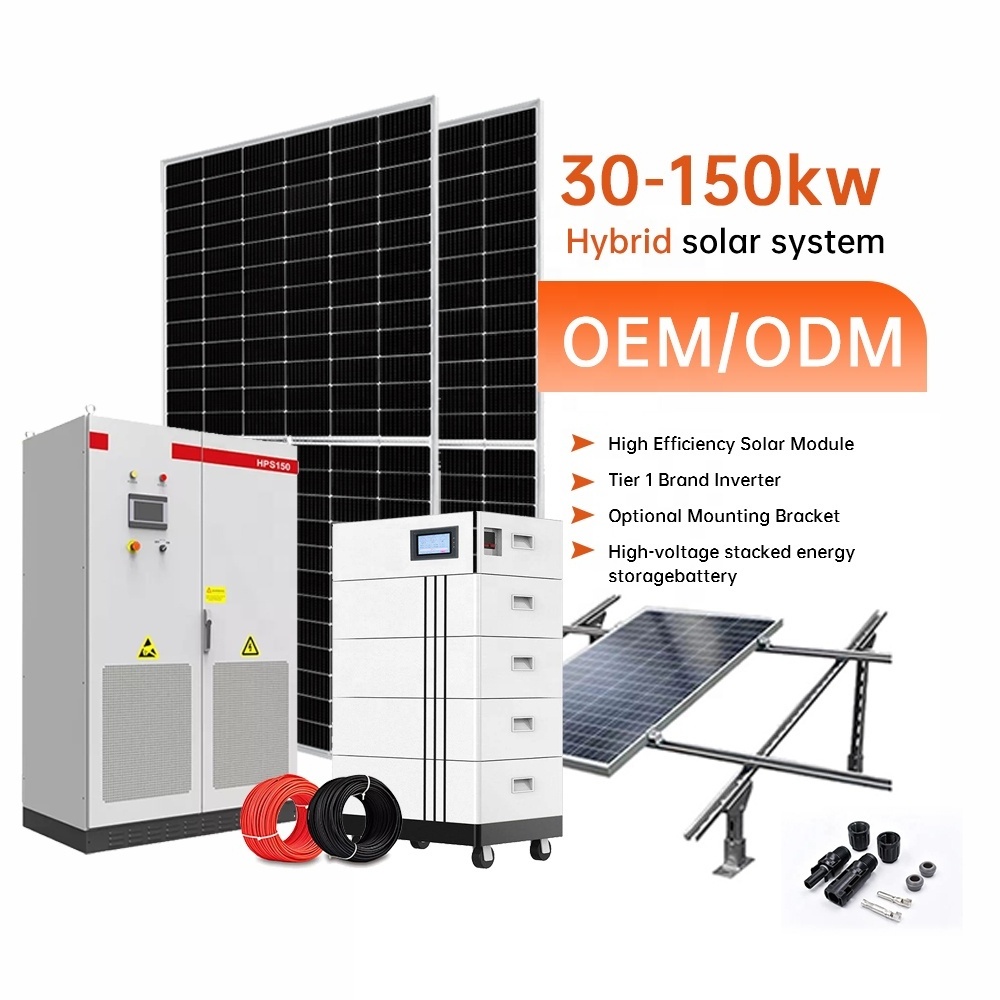

Commercial Use Hybrid Solar Power System 50Kw 100Kw 150Kw Solar Panel Kit with Storage Battery ATESS HPS 150 All In One Inverter

Commercial Use Hybrid Solar Power System 50Kw 100Kw 150Kw Solar Panel Kit with Storage Battery ATESS HPS 150 All In One Inverter

FOB Reference Price: Get Latest Price

≥30 Pieces

US $520

≥100 Pieces

US $450

≥1000 Pieces

US $350

Free Inquiry

Customized Request

Explore More Products

Home Solar Panel Kit System 10kw-30kw Off Grid Solar Power System For Home

$ 2.48 - $ 63.72

Full Automatic Modified Car Battery Inverter 500w Solar Power Inverter Converts

$ 9.52

Balcony Power Kit 400w 410w Solar Panels With 600w Inverter Waterproof Solar System For Home Complete Kit

$ 2.48 - $ 63.72

Mppt Power Inverter With Solar Charger Controller For Street Light Solar System

$ 6.57

Outdoor Power Supply 12v 24v To Ac 120v 220v Solar Battery Car Charger Inverter

$ 14.45

Solar Power Generator 600w Micro System Solar Panels Kit For Home Balcony

$ 2.48 - $ 63.72

Off Grid 2KW-5KW Solar Power System Kit For Home

$ 2.48 - $ 63.72

Home Use Commercial Balcony Energy Saving System Buy Flexible Solar Panels Kit For Sale

$ 18.13 - $ 25.99

Product Details

{{item.text}}

Quick Details

Controller Type:: MPPT

Mounting Type:: Roof Mounting

Certificate:: CE, ROHS, TUV, IEC

Warranty:: 10 YEARS

Place of Origin:: Anhui, China

Brand Name:: Wingosolar

Model Number:: HY 30-150Kw

Output Voltage (V):: 110V-240V

Output Frequency:: 60Hz/50Hz

Work Time (h):: 24 Hours

Solar panel brand:: Tier 1/Wingo solar

Inverter brand:: Growatt/Deye/Megeravo/Invt/ATESS/Wingo solar

OEM/ODM:: Accepatable

Technical Support:: Installation Manual

Quick Details

Application:: Home

Solar Panel Type:: Monocrystalline Silicon

Battery Type:: Lithium Ion

Controller Type:: MPPT

Mounting Type:: Roof Mounting

Certificate:: CE, ROHS, TUV, IEC

Warranty:: 10 YEARS

Place of Origin:: Anhui, China

Brand Name:: Wingosolar

Model Number:: HY 30-150Kw

Output Voltage (V):: 110V-240V

Output Frequency:: 60Hz/50Hz

Work Time (h):: 24 Hours

Solar panel brand:: Tier 1/Wingo solar

Inverter brand:: Growatt/Deye/Megeravo/Invt/ATESS/Wingo solar

OEM/ODM:: Accepatable

Technical Support:: Installation Manual

Product Description

Components	OEM Energy Storage System Hybrid Solution
Item	HY-30KW	HY-50KW	HY-100KW	HY-150KW
Solar Panel 550W	55pcs	91pcs	182pcs	273pcs
Hybrid Inverter	30kw	50kw	100kw	150kw
51.2V 100Ah LiFePO4 Battery	30.72kwh*1 set	51.2kwh*1 set	102.4kwh*1 set	153.6kwh*1 set
Combiner Box	5 inputs 1 output 1 piece	7 inputs 1 output 1 piece	5 inputs 1 output/3pcs 5 inputs 1 output/1piece	7 inputs 1 output/3pcs
Mounting System	1 set
PV Cable	300m	600m	1000m	1600m
PV Connectors	1 set
Tools Bag	Wire Cable Cutter & Stripper, Crimping Pliers for PV Connectors (Opt)

Product Choose

Tier 1 Brand Monocrystalline half-cut single/double glass/all black/full screen solar panel

1. Positive Power Tolerance: 0~+5w;

2. 100% EL Double-inspection Ensures Modules are Defects Free;
3. 5BB, 6BB, 9BB, 10BB, 12BB, MBB Available
4. 158.75mm, 166mm, 182mm, 210mm Size
5. Full Cell, Half Cut, 3-Cut;
6. Perc/HJT/All Black/Full Screen/Frameless Tech;
7. Modules Binned by Current to Improve System Performance;
8. Tier 1 Brand: Longi, Trina, Jinko, JA, TW, DAH, and our own brand Wingo Solar.

Hybrid Solar Inverters

1.Single-phase Inverter(3-5KW) ;

Three-phase Inverter(6-100KW);
2. Support Multiple Machine Units;
3. Auto Restart while AC is Recovering;
4. Built-in MPPT Solar Charge Controller;
5. Compatible to Mains Voltage or Generator Power;
6. Selectable Input Voltage Range for Home Appliances and Personal Computers;
7. Configurable AC/Solar input Priority via LCD Setting.

Solar Batteries

1. Deep Cycle Long Lifespan2. Stable High Discharge Performance;
3. Easy Installation and Maintenance-free;
4. Class A lithium Iron Phosphate Battery Type;
5. 12V/24V/48V/51.2V High Voltage Battery ;
6. More than 6000 times, up to 90% DOD;
7. Wide Suitability of Ambient Temperature Range ;
8. Maintenance is Simple, Reducing Deep Discharge.

Solar System Accessories

1. Pin Diameter: 6mm;

2. Degree of Proteetion: IP68;
3. Max System Voltage: 1000V;
4. Rated Current: 30A(4m3/6m3);
5. Excellent Resistance to U.V, Oil, Greases, Oxygen and Ozone;
6. Excellent Flexibility and Stripping;
7. High Voltage and Current Carring Capacity;
8. IP 65 Degree Lightning Protection.

Solar Mounting Assembly

1. Ground Solar Mounting System;

2. Residential Roof(Pitched Roof);
3. Car parking Solar Mounting System;
4. Vertical Wall Solar Mounting System;
5. Commercial Roof(Flat roof&workshop roof)
6. All Aluminum Structure Solar Mounting System;
7. Ballasted Mount, Do not Harm the Roof Structure.

Packing & Shipping
