Quick Details
-
Brand Name:
-
Zoomking
-
Model Number:
-
ZMK430
-
Model:
-
ZMK430
-
Effective Pixels:
-
8.51MP effective pixels, 16:9
-
Interface:
-
HDMI ,SDI,USB,IP, Audio Optional
-
HD Zoom:
-
12X/25x/31x zoom
-
Auto focus:
-
Support
-
Sensor:
-
1/2.5 Inch SONY 4K CMOS Sensor
-
Support operating system:
-
Windows XP,Vista,7,8, Windows 10, Mac OS X, Linux
-
Dimensions:
-
220mmx144mmx159mm (1.74KG)
-
Resolution:
-
4k@60fps
Quick Details
-
Type:
-
Audio Conference System, Network Conference System, Video Conference System
-
Function:
-
Voting
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Zoomking
-
Model Number:
-
ZMK430
-
Model:
-
ZMK430
-
Effective Pixels:
-
8.51MP effective pixels, 16:9
-
Interface:
-
HDMI ,SDI,USB,IP, Audio Optional
-
HD Zoom:
-
12X/25x/31x zoom
-
Auto focus:
-
Support
-
Sensor:
-
1/2.5 Inch SONY 4K CMOS Sensor
-
Support operating system:
-
Windows XP,Vista,7,8, Windows 10, Mac OS X, Linux
-
Dimensions:
-
220mmx144mmx159mm (1.74KG)
-
Resolution:
-
4k@60fps
Product Description

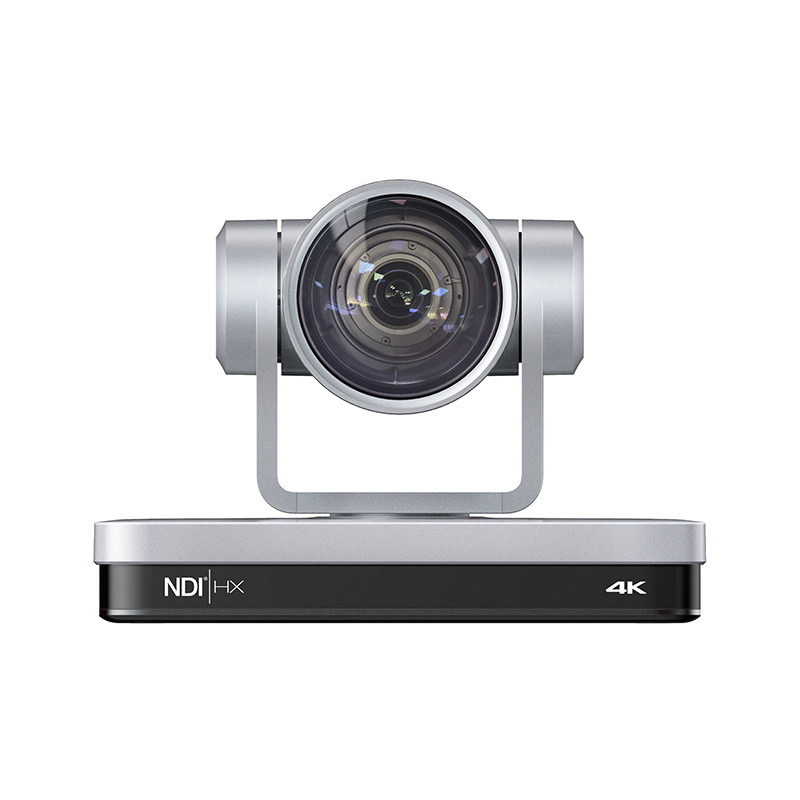

UV430 4K Ultra HD NDI PTZ Camera
The 430A 4K Ultra HD NDI PTZ Camera offers perfect functions, superior performance and rich interfaces.The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution,and fantastic color rendition.
Key Features
|
1. 4K Ultra HD Image: Built with SONY high quality CMOS sensor, ,with resolution up to 4K@60fps.
2.Optical Zoom Lens 12x optical zoom lens, with 80.4° FOV without distortion.
3. Leading Auto Focus Technology Fast, accurate and stable auto focus is achieved with leading auto focus algorithm.
4. Low Noise and High SNR Super high SNR image is achieved with low noise CMOS. The adoption of advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity.
5. Multiple video output interfaces With video 4k output from HIMI, USB2.0 and LAN at the same time.
6.Multiple Audio/Video Compression Standard Support H.264/H.265 video compression over LAN, support MJPG, H.264, YUY2 and NV12 over USB2.0 port , support AAC, MP3 and G.711A audio compression over A-in port.
7. Multiple Network Protocol
8. Multiple Presets
|
|
Technical Specification:
|
Model |
430E0 |
430E2 |
430E3 |
|
4K PTZ Camera |
|||
|
Image Sensor |
1/2.5 inch SONY CMOS Image Sensor |
1/2.5 inch SONY CMOS Image Sensor |
1/2.5 inch SONY CMOS Image Sensor |
|
Focus |
f=3.85 mm~ 43.06 mm ±5% |
f=7.1 mm~ 171.95 mm ±5% |
f=6.91 mm~ 214.64 mm ±5% |
|
Viewing Angle |
H7.59(N)~ 80.4(W)
|
H:2.5(N)~ 59.2(W)
|
H:1.98(N)~ 59(W)
|
|
Iris Value |
F1.8 ~ F3.56±5% |
F1.61 ~ F5.19±5% |
F1.35 ~ F4.6±5% |
|
Effective Pixel |
8.51M 16:9 |
||
|
Video Signal |
HDMI |
||
|
3840*2160P60/50/25/59.94/29.97,1080P60/50/ 30/25/59.94/29.97,1080I60/50/59.94; 720P60/50/59.94 |
|||
|
SDI |
|||
|
1080P60/50/30/25/59.94/29.97,1080I60/50/59.94,720P60/50/59.94 |
|||
|
USB2.0 |
|||
|
MJPG:3840*2160/1920*1080/1280*720 /1024*768 /1024*576/800*600/720*576/720*480/704*576/640*480 /640*360 /352*288/320*240P30
|
|||
|
Optical Zoom |
12x |
25X |
31X |
|
Digital Zoom |
15x |
15x |
15x |
|
AI |
Real-time Tracking, Zone Tracking |
||
|
Back Panel |
HDMI,SDI,LAN(POE),USB2.0,A-IN,RS232-IN,RS232-OUT,RS422(Compatible with RS485),Rotary Dip Switch,DC12V Power Supply,Power Switch |
||
|
Accessory |
Power Adapter, RS232 Cable, USB2.0 Cable, Remote Control, User Manual |
||
1. Q: Do you have an order MOQ ?
A: 1piece each model .
2. Q: What's your main products?
A: We provide a series of all-in-one streaming machines , portable video mixer switchers , hd ptz video conference cameras, video capture cards, video microphones , as well as a range of video converter boxes and streaming encoder boxes.
3. Q: Can you do OEM / ODM for us?
A: Yes
4. Q: If there is any problem about your products, should we have a refund or replacement?
A: If there is any problem within one year, you will get a brand new replacement.
6. Q: What is your delivery time?
A: For samples, within 3 working days after payment received. For bulk order, it depends on your quantity and requirements on OEM / ODM.
7. Quality
A: All of our products are with broadcast quality level . Professional video equipment suitable for all live streaming and broadcasting projects.
